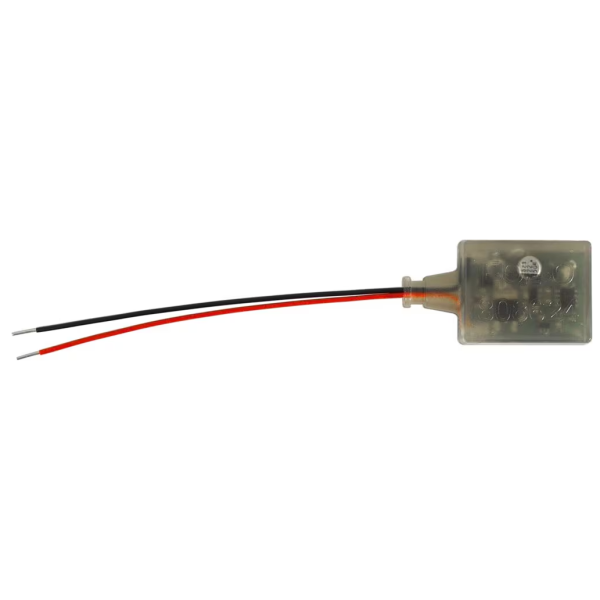

The 808624 EOL-O is an ESSER terminating (end-of-line) device. It fits on the last control output device in a circuit and monitors the wiring to conventional alarm signalling devices. It is used as the end-of-line device with the Inspire 4-channel I/O module.
Key features
- Monitors control outputs used to connect conventional alarm devices
- Detects creeping line interruptions and short circuits
- Microprocessor-controlled line monitoring to EN 54-13
- Fitted to the last control output device in the circuit
Technical specifications
- Manufacturer part number: 808624 (EOL-O)
- Line monitoring: in accordance with EN 54-13
