Photoelectric detectors are widely used for perimeter surveillance in severe outdoor environmental conditions. Therefore, the highly durable structure is considered a key factor for accurate operation to prevent false alarms.
Our new AX-TN Series achieves the IP65 high durable structure by using the rubber packing for all conceivable points and it prevents the rain, dust, and tiny insects getting into the unit.
Main Features
Lightning and surge protection
Anti-frost hood cover
Specifications
Beam Configuration
Dual Beam
Connectivity Technology
Wired
Depth
69.5mm
Environmental Certification
ISO
Environmentally Friendly
Yes
Features
Anti-frost System; Dust Proof; Water Proof
Form Factor
Wall Mount
Height
170.0mm
Input Voltage
10.5V DC
Limited Warranty
5-Year
Material
Rubber
Maximum Outdoor Detection Range
20m
Mount Type
Pole Mount; Wall Mount
Number of Channels
4
Package Contents

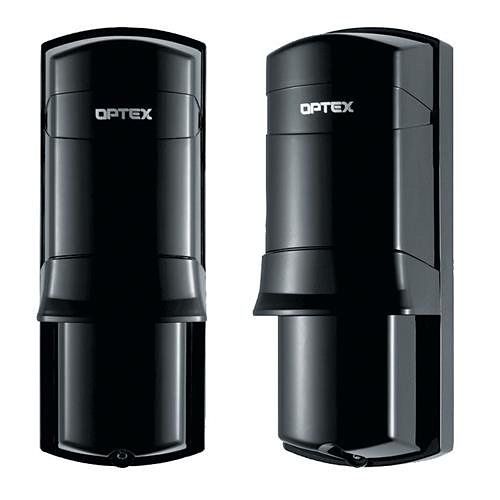

AX-70TN Photoelectric Beam Detector
8 x Mounting Plate Lock Screws
4 x Wall Mounting Screws
8 x Pole Lock Screws
4 x Pole Bracket
Product Line
AX TN Series
Product Series
AX
Product Type
Photoelectric Beam Detectors
Status Indicators
Alarm
Width
65.0mm
Additional Information
Lightning protectionRange: 70ft outdoorAnti-frost hood coverEasy angle adjustmentHigh grade spherical lens99% beam blocking stabilityAutomatic gain control circuitAdjustable beam interruption period
