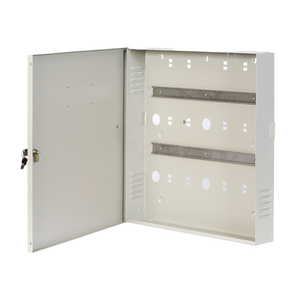

The Comelit PAC 909033075 is the PAC 212 LF standalone access controller in DIN-mount form, for fitting in PAC 4-way or 6-way cabinets (part numbers 10031 and 10032). Built on the PAC 512 controller, it runs two doors without any extra software and is programmed on site through its keypad and built-in LF proximity reader, or from a PC with PAC software. It supports PAC and KeyPAC credentials.
Key features
- Standalone 2-door controller, no extra software needed
- In-built LF proximity reader and keypad for on-site programming
- Configurable for residential or commercial applications
- Up to 2,000 keyholders and 4,000 stored events
- Database and events exportable on the USB drive supplied
- Backlit LCD display
Technical specifications
- Part number: 909033075
- Doors: 2, with up to 4 access control devices (reader per door, reader and exit device per door, or read-in/read-out)
- ID devices supported: 2,000
- Supported credentials: PAC and KeyPAC (cards and tokens)
- Event storage: 4,000 events, exportable to a PC by USB memory device
- Configuration: integrated keypad and administration reader, or PC with PAC software (version 4.6 or above)
- Input connection features: programmable relays for door forced/left open, 1 tamper alarm input, 1 override input
- Outputs: 2 x 5 A lock relays at 30 V DC, 2 x 5 A auxiliary relays at 30 V DC
- Input devices: PAC readers (LF, MT), PAC exit devices (RTE), door contacts
- Distance to input devices: 70 m
- Recommended cabling: 0.22 mm 8-core alarm cable
- Power input: 12-24 V DC
- Dimensions: 181 x 70 x 125 mm (W x H x D)
- Weight: 0.75 kg
- Operating temperature: 0 °C to +35 °C
- Operating humidity: 10% to 85% RH
- Warranty: 5 years against electronic failure
- Standards: UKCA, CE, UL, FCC, IC, RoHS and WEEE
