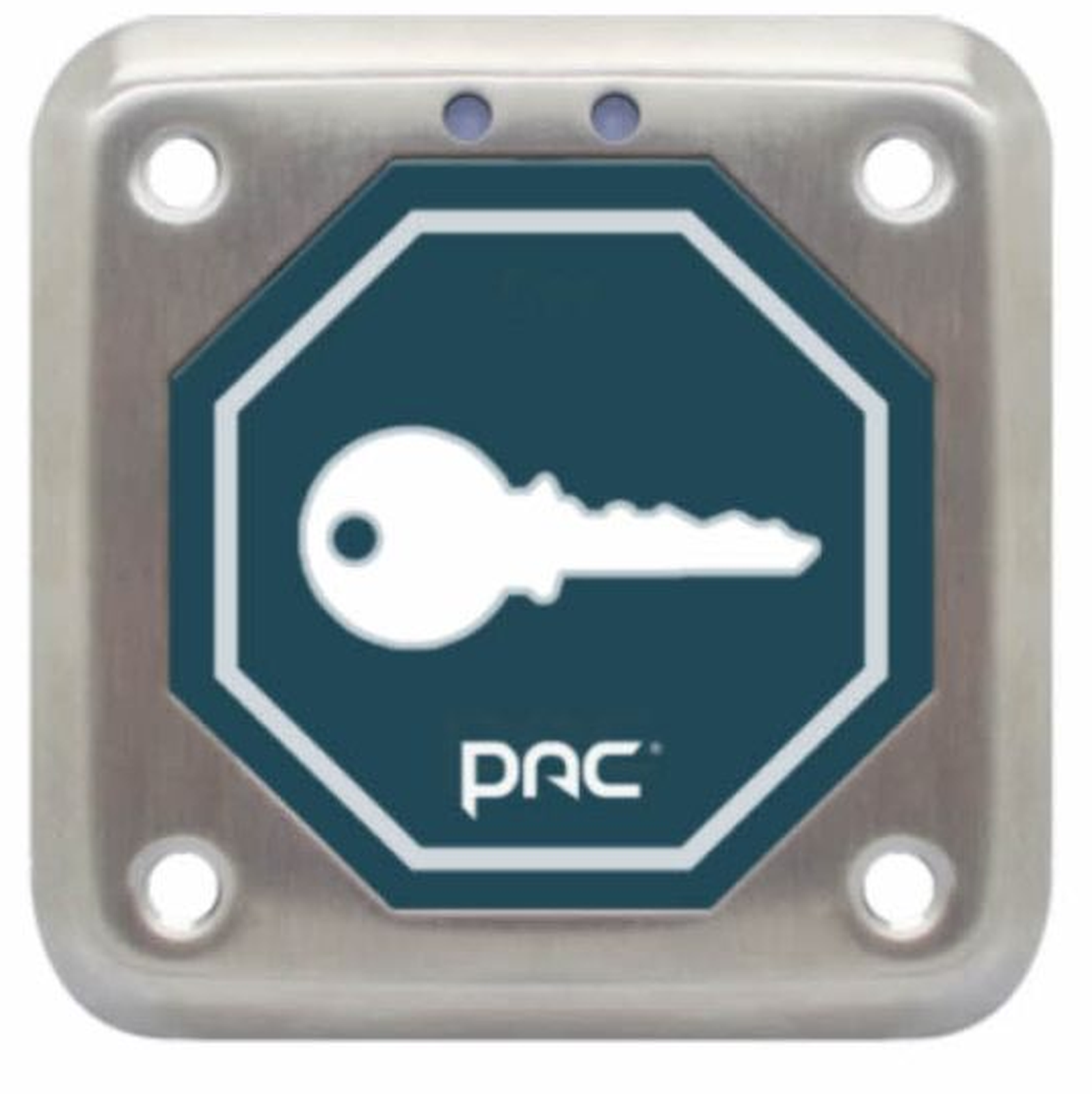

The Comelit PAC 909022118 is a high-frequency (13.56 MHz) vandal-resistant access control reader from the PAC GS3 range. It gives a robust, intruder-graded reader for internal or external doors on PAC access control systems. It reads PAC OPS and OPS Lite credentials and many Wiegand formats.
Key features
- Vandal-resistant grade 304 stainless steel construction
- Suitable for indoor or outdoor use (IP67)
- Raised key symbol with audible and visual feedback for Equality Act compliance
- Pre-connected 2 m cable for easy installation
- Supports PAC OPS, PAC OPS Lite and many Wiegand credentials
- Integral tamper circuit; reader line tamper configurable with PAC 512 controllers
- Certified to EN 50131-1 and EN 50131-3, Security Grade 3
Technical specifications
- Part number: 909022118 (PAC HF vandal-resistant reader, blue)
- Supported credentials: PAC OPS, PAC OPS Lite
- Output protocols: PAC64, PAC32, Wiegand
- Indicators: audible sounder, red/green LEDs
- RFID frequency: 13.56 MHz (high frequency)
- Maximum read range: 40 mm
- Tamper: integral tamper circuit with wall sensor
- Distance to controller: 70 m (reader powered from controller); 500 m (locally powered)
- Recommended cabling: 6-core 24 AWG 0.22 mm² alarm cable (unscreened)
- Power input: 12 to 24 V DC, <100 mA at 12 V DC
- Dimensions: 103 x 103 x 17.5 mm (W x H x D)
- Weight: 0.442 kg
- Operating temperature: -40 °C to +66 °C
- Operating humidity: 10% to 85% RH
- Environment: IP67
- Standards: UKCA, CE, FCC, IC, RoHS and WEEE
- Warranty: lifetime against electronic failure
