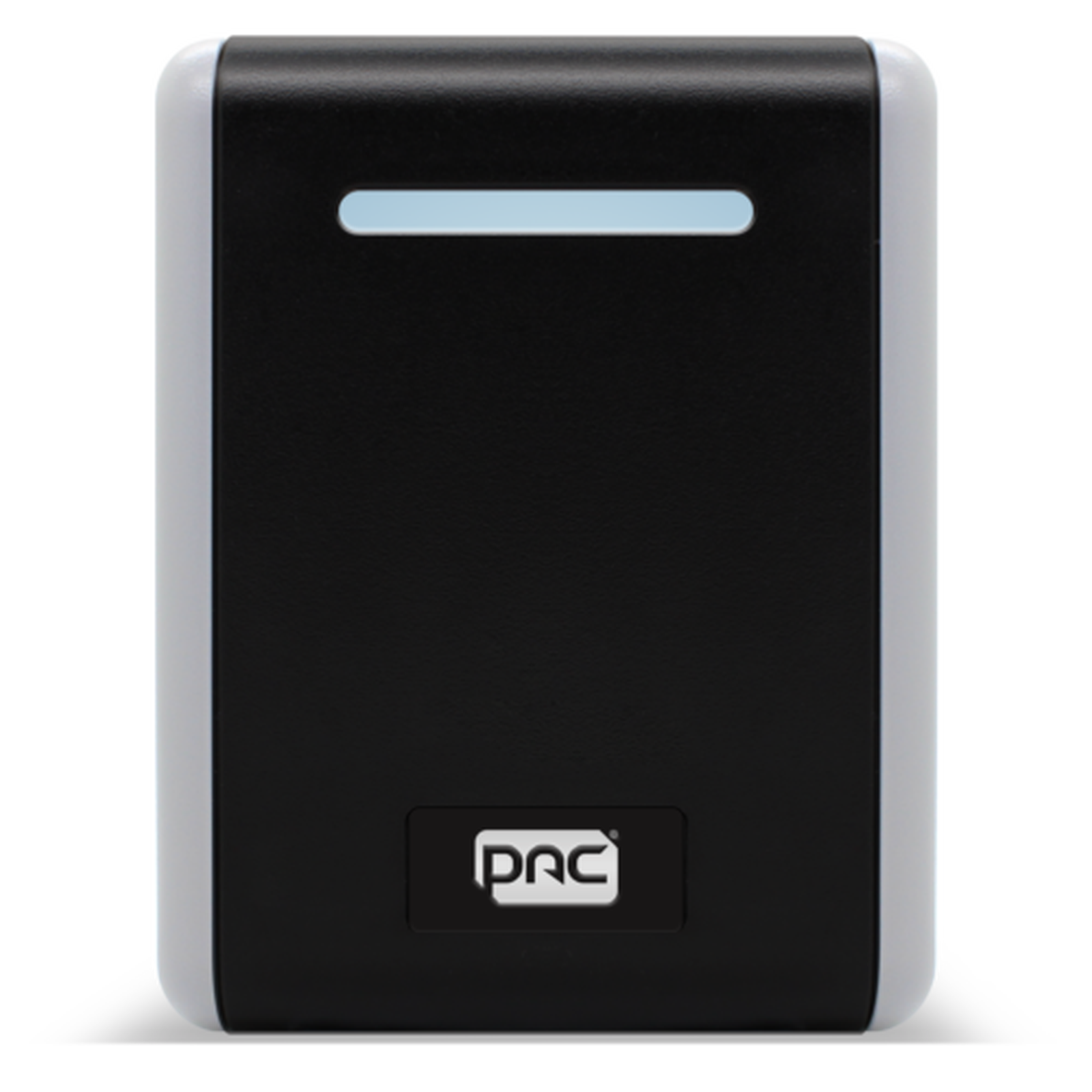

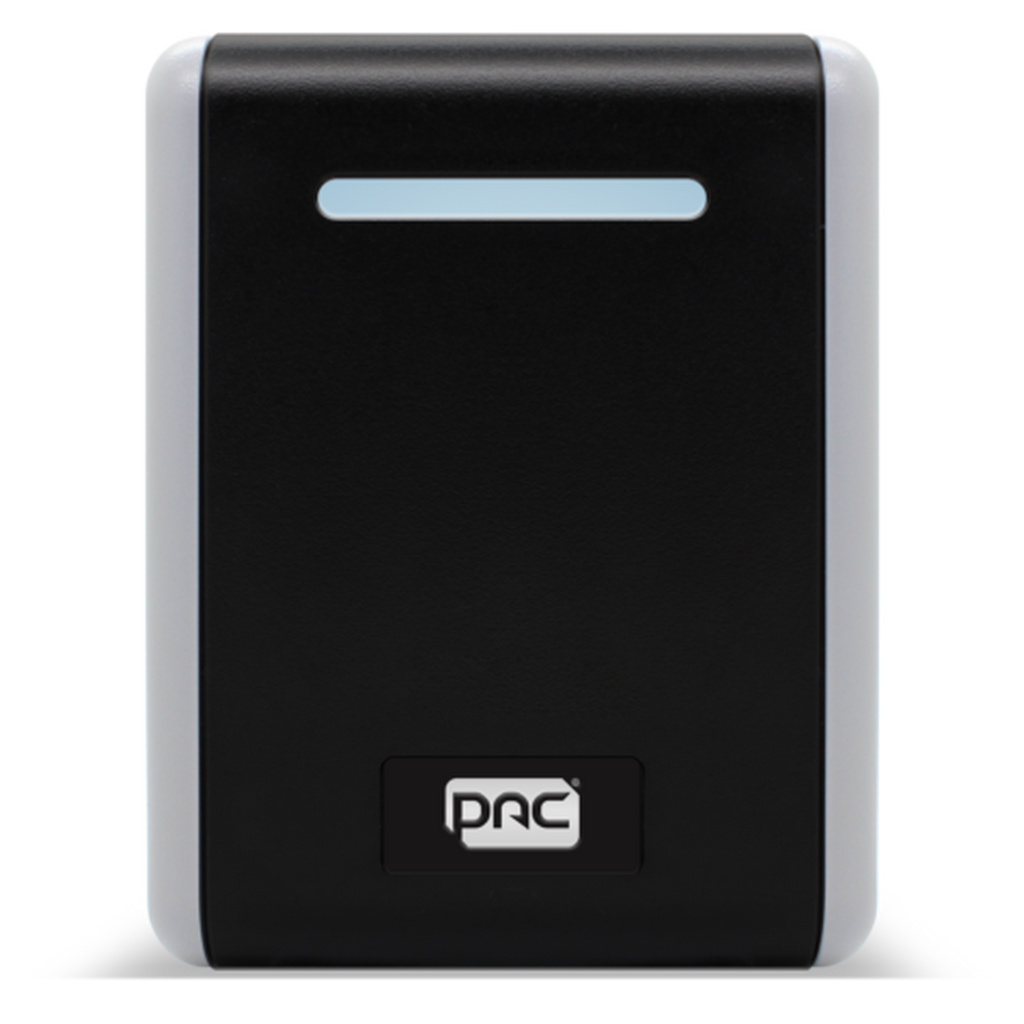

Comelit PAC RFID LF Standard Reader

The Comelit PAC 909020111 is a low-frequency Standard reader from the PAC GS3 range for PAC access control systems. It offers the same functions as the PAC Mullion reader in a larger housing and fits most door frames and standard electrical back boxes. It reads all PAC LF ID devices and many Wiegand-format tokens.

Key features

• Reads PAC and KeyPAC credentials, plus third-party credentials via Wiegand
• Suitable for indoor or outdoor use (IP65)
• Integral tamper circuit and mounting plate
• Reader line tamper configurable with PAC 512 controllers
• Audible sounder and red/green LEDs
• Security Grade 3

Technical specifications

• Part number: 909020111 (PAC LF Standard reader)
• Supported credentials: PAC, KeyPAC
• Output protocols: PAC, Wiegand
• RFID frequency: 125 kHz and 153.6 kHz (low frequency)
• Maximum read range: 85 mm
• Distance to controller: 70 m (reader powered from controller); 500 m (locally powered)
• Recommended cabling: 6-core 24 AWG 0.22 mm² alarm cable (unscreened)
• Power input: 12 to 24 V DC, <100 mA at 12 V DC
• Dimensions: 89 x 115 x 28 mm (W x H x D)
• Weight: 0.290 kg
• Material: UL-rated polycarbonate
• Operating temperature: -40 °C to +66 °C
• Operating humidity: 10% to 85% RH
• Environment: IP65
• Standards: UKCA, CE, UL, FCC, IC, RoHS and WEEE
• Warranty: lifetime against electronic failure
