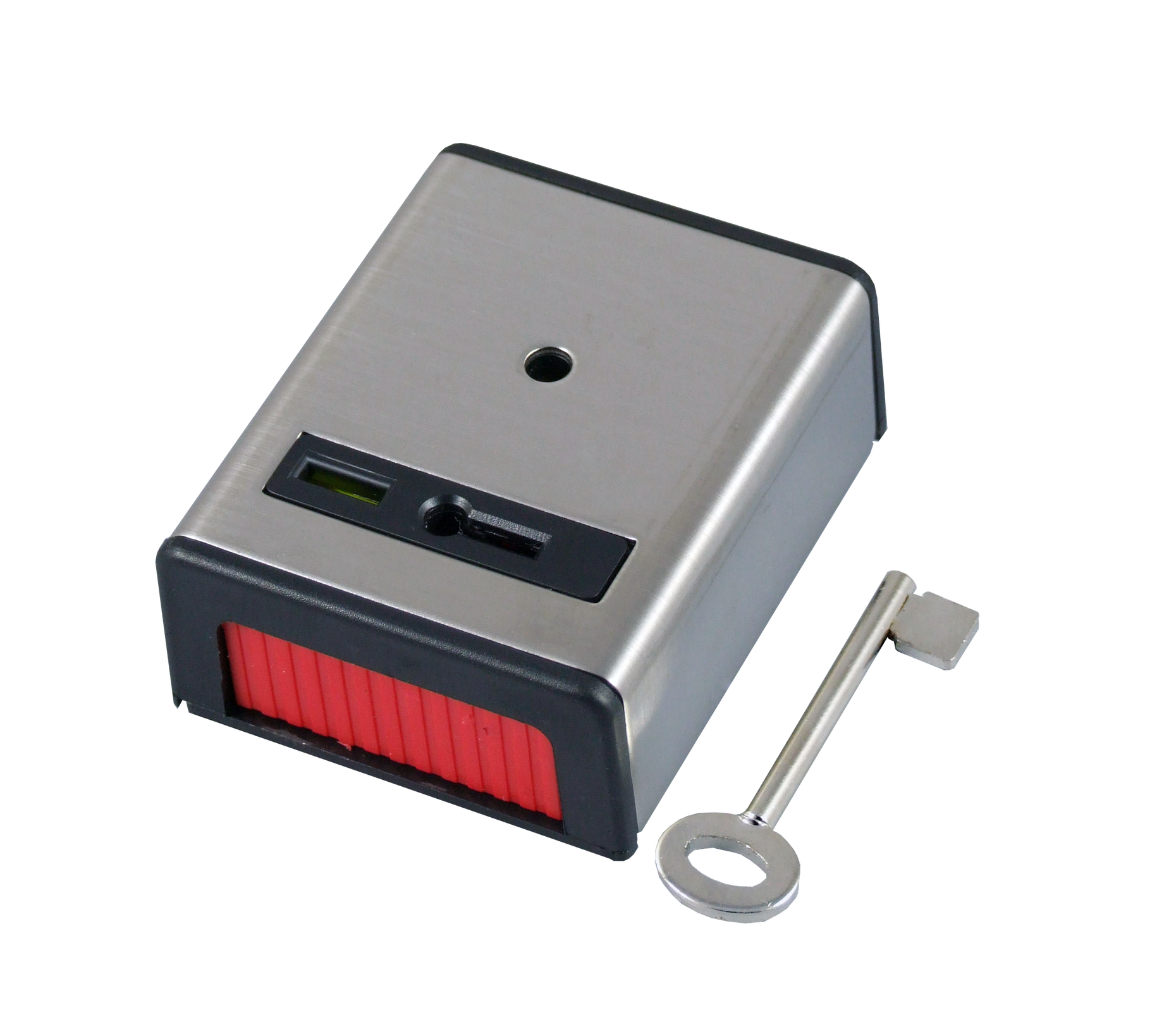

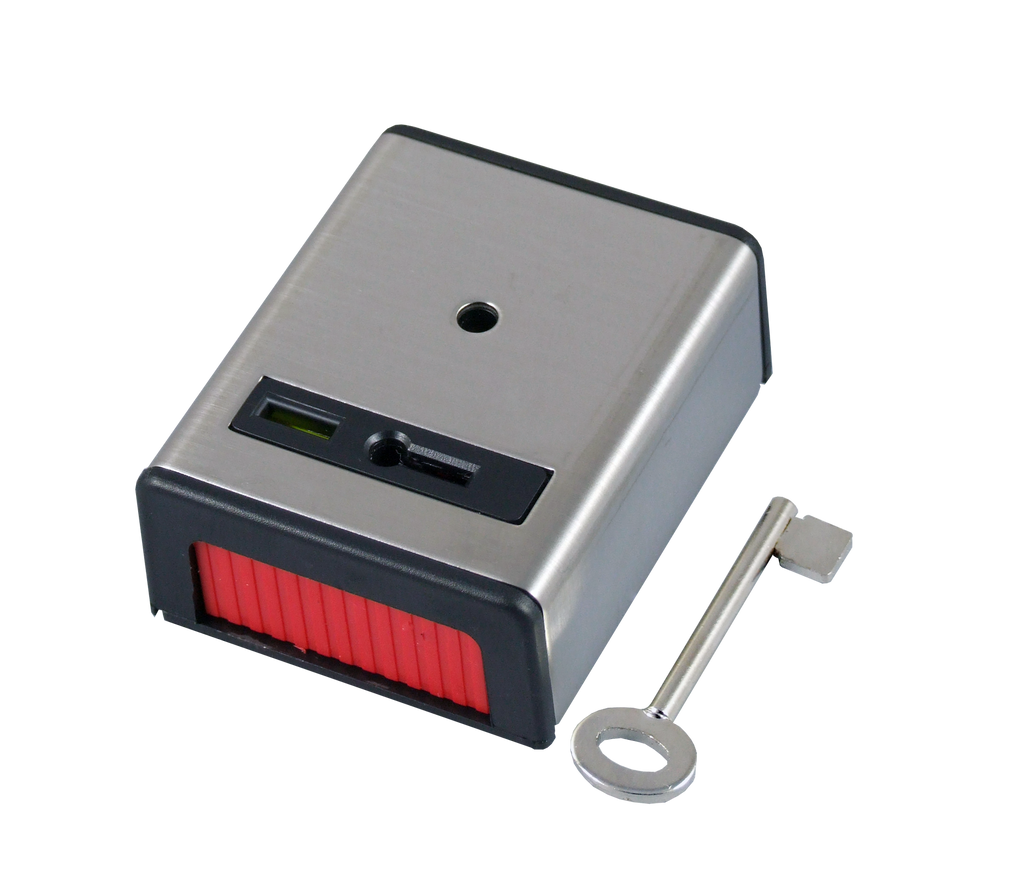

The CQR PASP1/SS is a stainless steel single-push panic button (PA) for intruder alarm systems. It latches when pressed and is reset with a key, so staff can raise an alarm simply and discreetly.
Key features
- Grade 1, Environmental Class II
- Single push, latching operation
- Key reset
- Surface mounting with screw terminals
- Stainless steel finish
- 2-year warranty
Technical specifications
- Model: PASP1/SS
- Security grade: 1
- Environmental class: II
- Operation: push, latching
- Reset method: key
- Mounting: surface
- Connection: screw
- Dimensions (H × W × D): 70 × 56 × 28 mm
- Material: HIPS & stainless steel
- IP rating: IP3X
- Temperature range: -10 °C to +40 °C
- Standards: EN50131-1, EN50130-5
- Warranty: 2 years
