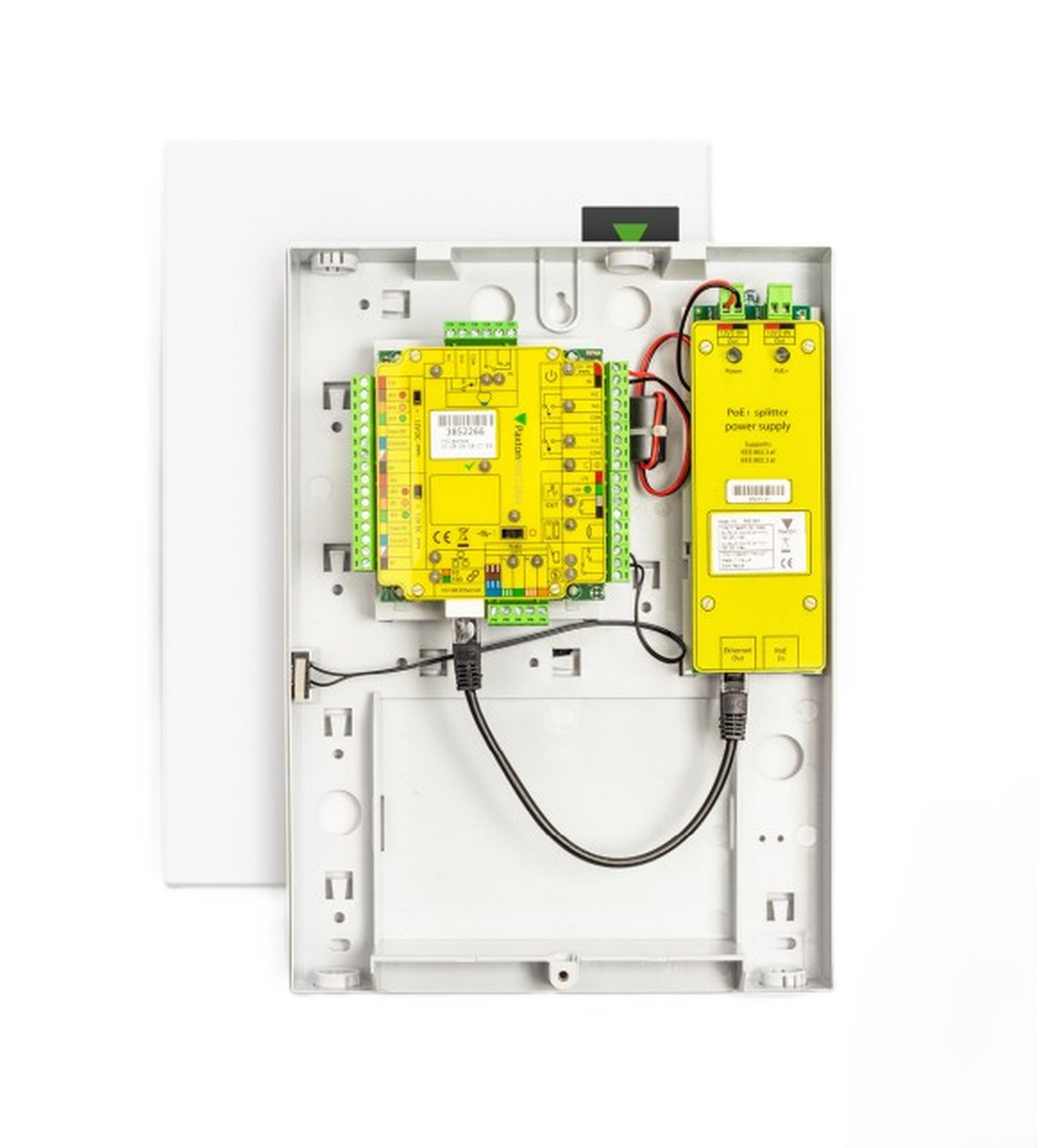

Paxton Net2 Plus 1 Door Controller PoE+ Plastic Cabinet

Paxton Net2 Plus 1 Door Controller, PoE+, Plastic Cabinet (682-284)

The Paxton Net2 plus 682-284 is a single door networked access control controller in a plastic cabinet with a PoE+ power supply, so it can be powered and connected over one Ethernet cable.

Net2 is a networked access control system. A networked system gives the advantages of central control, event reporting and flexible control over users’ access. Each control unit is part of a network but can run independently, making its own decisions and remembering events.

The Net2 plus control unit connects to the central administration PC using an RJ45 plug into a standard TCP/IP Ethernet network. This greatly increases the flexibility of installation options on sites that have LAN/WAN networks. The Net2 plus control unit also has an RS485 connection, so it can be connected to other Net2 plus or Net2 classic control units using a dedicated CAT5 cable. One Net2 plus control unit can be the network interface to the LAN and also run a wired RS485 daisy chain of other Net2 plus or Net2 classic units, removing the need for an independent TCP/IP to RS485 converter.

Net2 plus is also available with a Power over Ethernet (PoE) power supply. PoE is a technology that allows both power and data to be passed along Ethernet cabling. Net2 plus with PoE simply plugs straight into the existing LAN using a standard RJ45 plug, providing it is powered by either a compatible PoE switch or a PoE injector.

Net2 Plus is supplied as a PCB only or in a cabinet with or without a power supply. Both metal and plastic cabinets are available, with a 2A or PoE+ power supply. This listing is the plastic cabinet with PoE+ power supply.

Features

• Single door networkable access control unit
• Plug into a TCP/IP network using an RJ45 plug
• Built-in TCP/IP converter
• Different control units can be mixed on a site
• FLASH memory allows easy upgrades
• Use Paxton or third party readers

Used for: networked door access control in offices, schools, healthcare and commercial buildings.

Frequently Asked Questions

How is the PoE+ version powered?

It plugs into the existing LAN with a standard RJ45 plug and must be powered by a compatible PoE switch or a PoE injector.

Can it connect to other Net2 controllers?

Yes. Its RS485 connection lets it run a wired daisy chain of other Net2 plus or Net2 classic units over dedicated CAT5 cable, acting as the network interface to the LAN.

Which readers can I use?

Net2 plus can be used with Paxton or third party readers.
