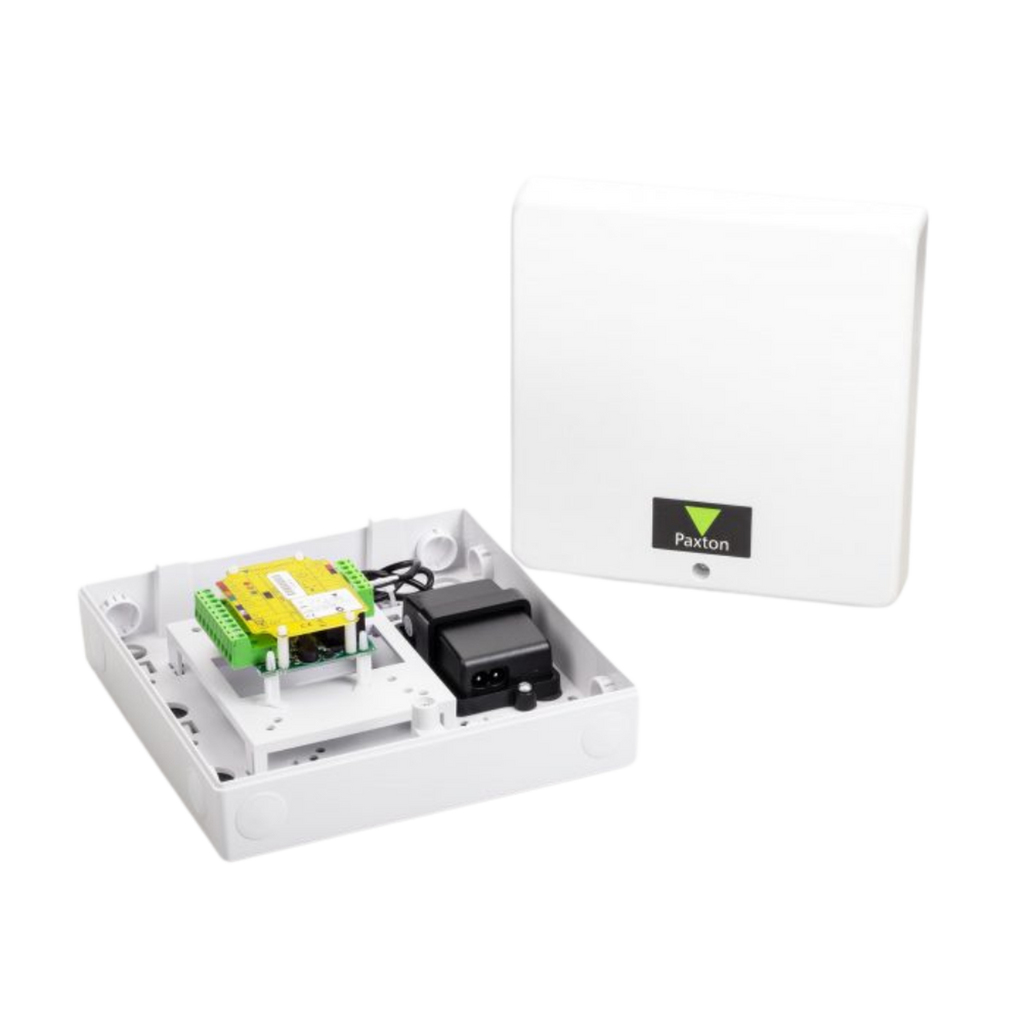

The Paxton Switch2 is a standalone single-door access control unit supplied here with a 12V 1A power supply in a white plastic housing (Paxton sales code 242-166). The control unit is mounted on the secure side of the door and stores all user access permissions, so the door remains secure even if the reader is tampered with. It works with Paxton PROXIMITY, CARDLOCK and TOUCHLOCK readers and keypads.
Key features
- Standalone single-door control – no PC software required
- Up to 50 codes when used with a TOUCHLOCK keypad
- Card plus PIN operation with Proximity KP keypads
- Zoning to control access by token colour (with the function card pack)
- Voltage-free relay output to switch any lock or electrical device
- Two readers can be connected for read-in and read-out control
- Lost tokens barred at the door using Paxton’s shadow card system
- Inputs for exit button and door contact, with door-forced alarm output
Technical specifications
-
Paxton sales code: 242-166
-
Operating voltage: 10–14V DC
-
Current consumption: 80mA
-
Relay switchable voltage: 24V DC
-
Relay switchable current: 4A
-
Door open time: 1–60 seconds
-
Operating temperature: −20°C to +55°C
-
Supplied with: 12V 1A PSU in white plastic housing
