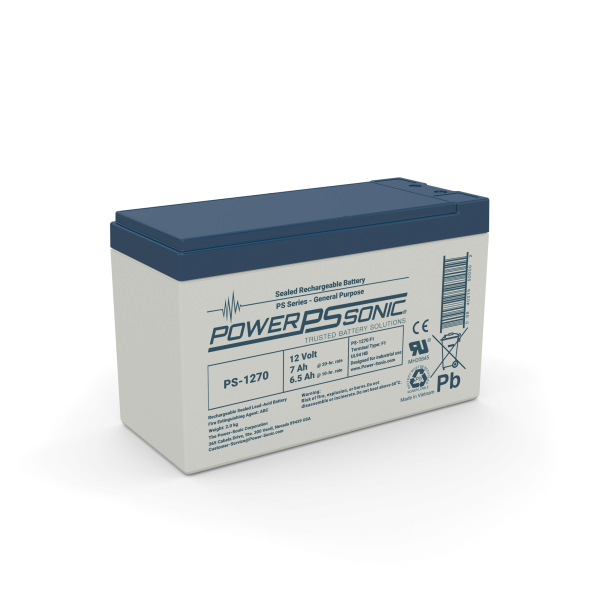

Power Sonic PS-1270 F1 Battery 12V and 7AH

The Power Sonic PS-1270 F1 is a 12V 7Ah sealed lead acid battery with F1 terminals, widely used as standby power in fire alarm panels, intruder alarms and access control power supplies.

The Power Sonic PS-1270 F1 is a 12V 7Ah sealed lead acid (SLA) battery from Power Sonic’s PS Series general purpose range. Power Sonic engineers these batteries for general purpose float and light cyclic applications, including fire and security systems, emergency lighting, UPS and medical devices.

Key features

• Absorbent Glass Mat (AGM) sealed lead acid construction, maintenance-free
• Gas recombination technology for quick recovery of capacity during charge
• ABS case
• 5-year float life class (per Power Sonic float life data)

Technical specifications

• Nominal voltage: 12V (6 cells)
• Nominal capacity (20-hour rate): 7.0Ah
• Capacity (10-hour rate): 6.53Ah
• Capacity (5-hour rate): 6.05Ah
• Capacity (1-hour rate): 4.27Ah
• Approximate weight: 1.97 kg
• Dimensions (L × W × H): 151 × 65 × 94 mm
• Height over terminals: 100 mm
• Internal resistance (approx.): 33 mΩ
• Max short circuit discharge current: 196A
• Operating temperature – charge: −20°C to +50°C
• Operating temperature – discharge: −15°C to +60°C
• Terminals: F1

Specifications taken from the Power Sonic datasheet; dimensions have a tolerance of ±2 mm.

Used for: standby power for fire alarm panels, intruder alarms, emergency lighting, UPS and other float applications. Also see the Yuasa NP7-12 12V 7Ah battery.
