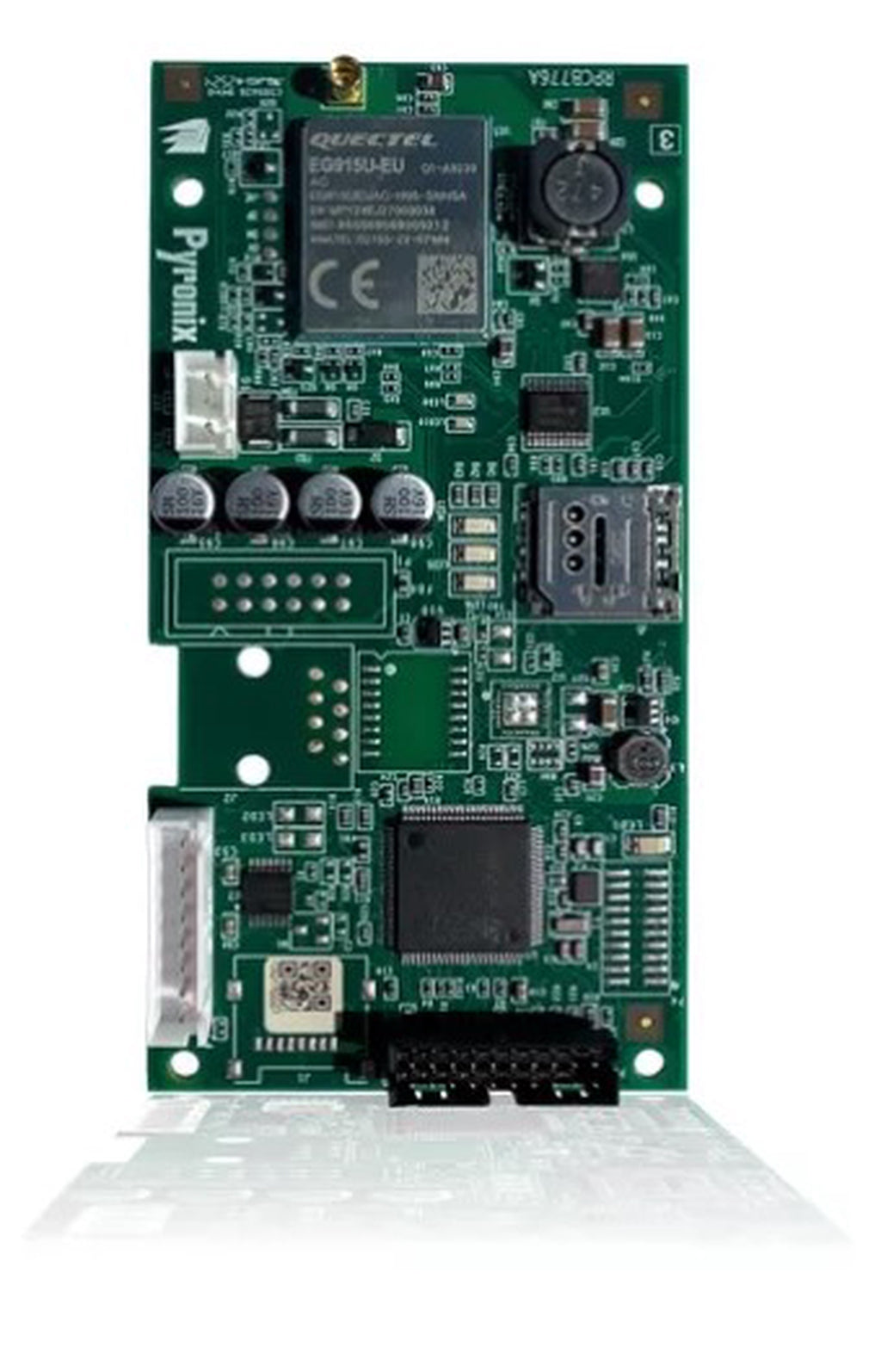

Pyronix 4G Communication Module

The Pyronix DIGI-4G is a 4G Cat 1 communication module for Pyronix Enforcer and Euro alarm panels. It sends fast, secure alarm signals over 4G, with automatic fallback to 2G where 4G coverage is weak. It is a direct replacement for older DIGI-GPRS and PSTN modules, so it suits legacy upgrades and sites with no broadband.

Key features

• 4G Cat 1 signalling with automatic 2G fallback
• Replaces DIGI-GPRS and outdated PSTN or GPRS modules
• Quick to fit: power down the panel and swap the old GPRS unit
• Low latency for real-time signalling and HomeControl2.0 app use
• Low power use helps signalling continue during mains failure
• LEDs show operation, signal strength and connection type (4G or 2G)
• Grade 3, SP5 signalling performance

Technical specifications

• Product code: DIGI-4G
• Compatible panels: Enforcer and Euro 46 (v10 or later), Euro 76
• Network: 4G Cat 1 with 2G fallback
• Operating voltage: 9 to 16V DC
• Current consumption: approx. 40mA at 12V DC
• Dimensions: 56 x 110 x 9mm (W x H x D)
• Weight: 36g
• Operating temperature: -10°C to +40°C
• Environmental class: II
• Security grade: 3
• Standards: BS EN 50131-1, BS EN 50131-3, BS EN 50131-10, BS EN 50136-1, BS EN 50136-2
• ATS performance: SP5

Note: compatibility depends on the panel software version.
