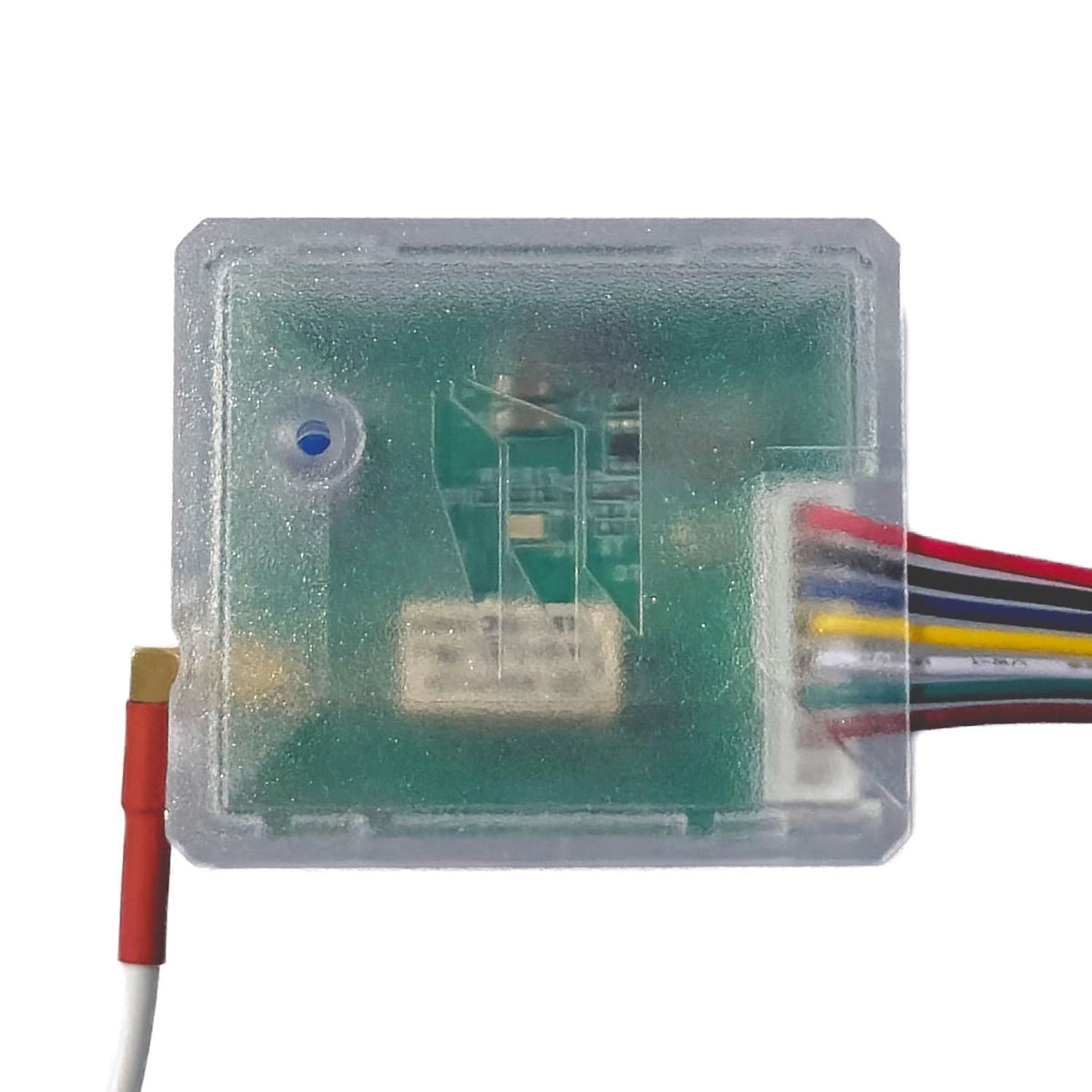

Pyronix DIGI-PCC PyronixCloud Connect

The Pyronix DIGI-PCC PyronixCloud Connect is a small Wi-Fi module that adds app control and push notifications to older wired intruder alarm systems. It works with a range of Pyronix and third party panels, letting users arm, disarm and check their system remotely in the Pyronix HomeControl2.0 app. Setup is done over Bluetooth from the app and takes about 15 minutes, with no Ethernet cable needed.

Key features

• Adds HomeControl2.0 app control and instant alerts to wired alarm panels
• Arm and disarm remotely, including keyswitch style control
• Real time activity updates and status monitoring
• Works with a range of Pyronix and third party panels
• 2.4GHz Wi-Fi, no Ethernet cable needed
• Bluetooth Low Energy setup from the app
• External antenna for a strong signal inside metal enclosures
• Pre-wired, colour coded leads for quick install

Technical specifications

• Product code: DIGI-PCC
• Connectivity: 2.4GHz Wi-Fi (up to about 30m); BLE for setup
• Inputs: 2
• Outputs: 1 relay, 1A at 30V DC
• Operating voltage: 9 to 15V DC
• Dimensions (W x H x D): 51 x 45 x 20mm
• Weight: 70g
• Casing: clear ABS/polycarbonate
• Operating temperature: -10°C to +40°C
• Environmental class: II
• Standards: EN 62368-1, EN 300 328, EN 301 489-17, EN IEC 63000

Note: check that your alarm panel is compatible before ordering.
