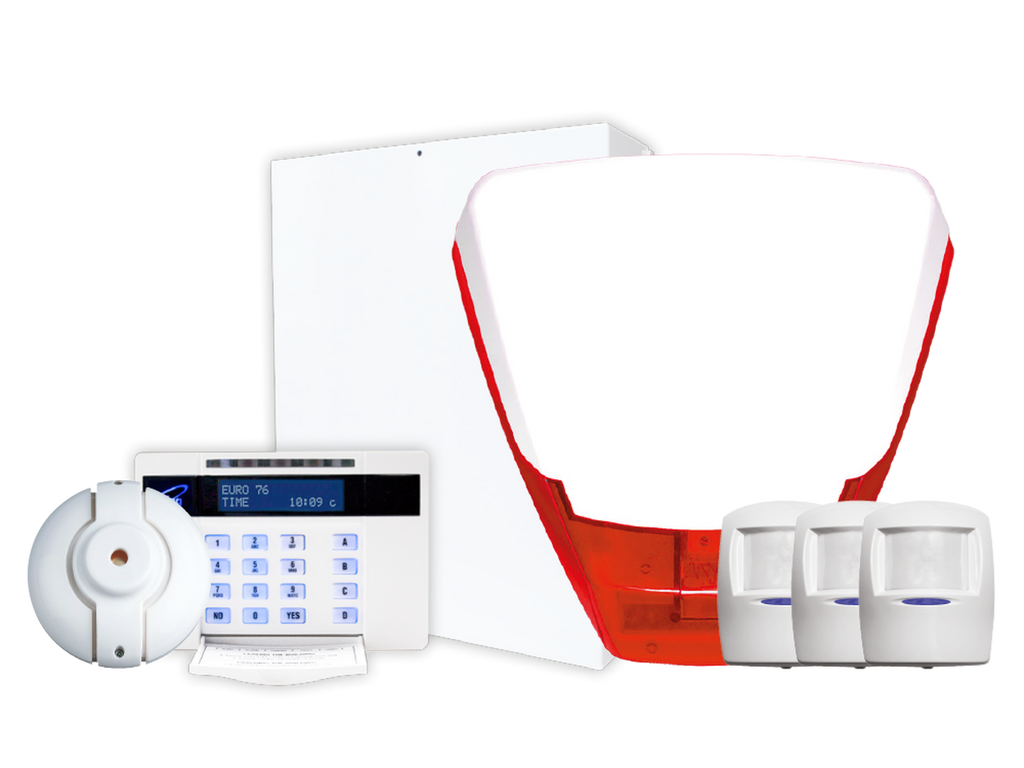

The Pyronix EURO76/S-KIT is a Grade 2 intruder alarm kit built around the EURO 76 small metal hybrid control panel, for residential and commercial properties. It includes a Deltabell-E external sounder with a white lid, a TwinAlert internal sounder, a keypad and three MeQ Blue wired PIRs to protect up to three rooms.
The EURO 76 is a hybrid (wired and wireless) panel with 76 zones and monitoring over cellular and IP communication. Wireless devices need the ZEM32-WE expander, and a communication module (Wi-Fi, LAN or GPRS) is sold separately.
Key features
- EURO 76 small metal hybrid panel with tamper-protected metal casing, PCB, power supply and keypad
- EN 50131 Grade 2, environmental class II (small panel)
- 8 wired inputs on board, expandable to 76 zones
- Up to 64 two-way wireless zones with 2 × ZEM32-WE
- 6 independent areas or levels
- 85 user codes and prox tags
- Compatible with the HomeControl2.0 app
- Reporting over Wi-Fi, LAN or GPRS (SIA IP, Contact ID IP, Fast Format IP, Cloud/App, SMS), WebWayOne and Chiron
Technical specifications
-
Kit part code: EURO76/S-KIT
-
Panel part code: EURO76/S-UK
-
Wired inputs: 8 on board (76 maximum)
-
Two-way wireless zones: 64 with 2 × ZEM32-WE
-
Outputs on board: 5, expandable to 75
-
Keypads: Up to 6 wired, 4 wireless (wireless requires ZEM32-WE)
-
User codes and prox tags: 85
-
Internal power supply: 1.5A
-
Current consumption: 80mA
-
Programmable output: 3A relay, max. 30V
-
Siren and strobe output: 500mA
-
Standby battery capacity: 3–7Ah
-
Operating temperature: −10°C to +50°C
-
Panel dimensions (W × H × D): 250 × 297 × 82 mm
-
Panel weight: 3.6 kg
-
Warranty: 2 years
What's in the box
- EURO 76 Small hybrid control panel (EURO76/S-UK) with keypad (EUR-064)
- Deltabell-E external sounder with white lid
- TwinAlert internal sounder
- PIR detectors to protect up to three rooms
