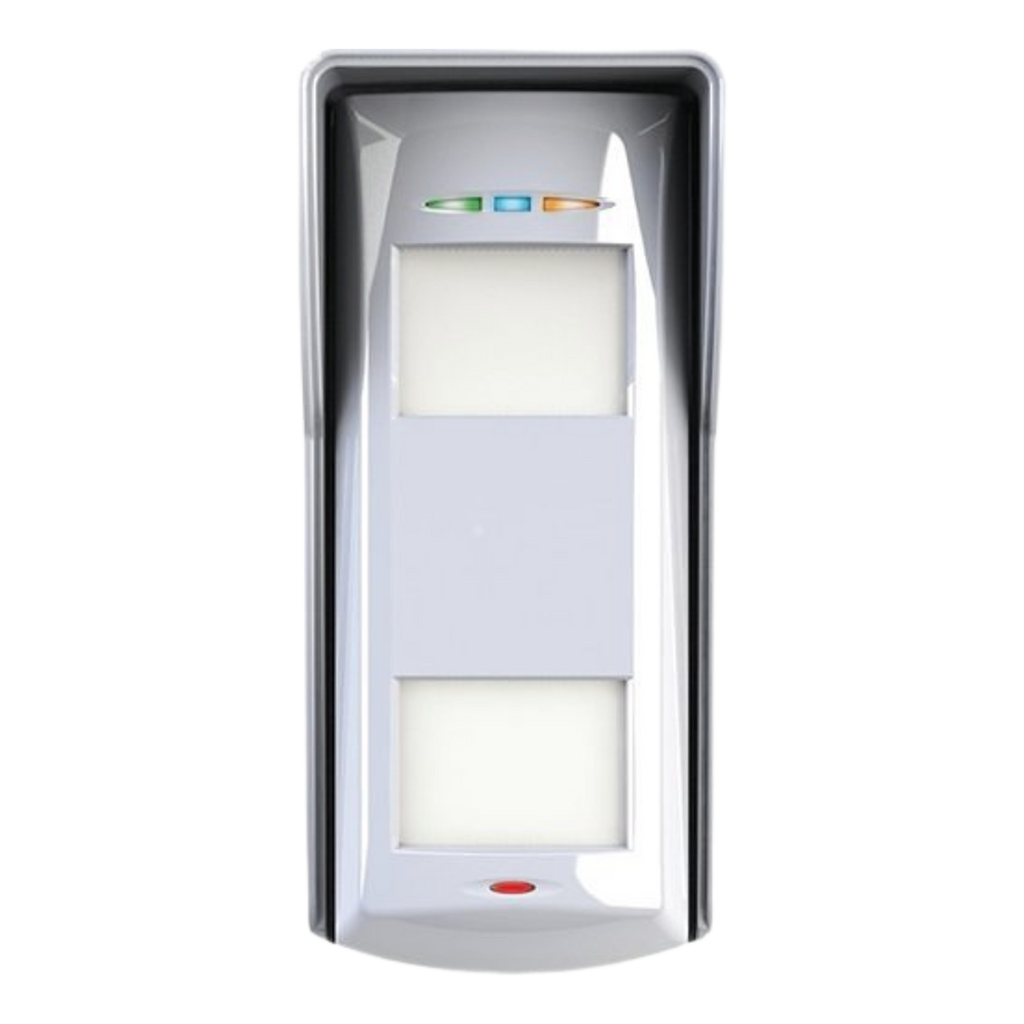

Pyronix XDL12TTAM3 Ext Tri-Tech Low Mount Detector w/Anti/Masking

The Pyronix XDL12TT-AM3 is a wired, low mount external motion detector with anti-masking. It uses two dual element PIR sensors and a microwave sensor in one housing, and its Tri-Signal Detection Logic only raises an alarm when all three sensors trigger in quick succession, which helps cut false alarms outdoors. It is pet tolerant when mounted low and suits gardens, driveways and building perimeters.

Key features

• Tri-technology: 2 dual element PIR sensors and a microwave Doppler sensor
• Tri-Signal Detection Logic with Blue Wave Technology and anti-sway analytics
• 12m range, 85 degree volumetric or 17 degree curtain coverage
• Adjustable 0 to 1m tri-masking across all three technologies, plus anti-blocking
• Pet tolerant up to 35kg at a mounting height of 1 to 1.5m
• Front and rear tamper
• IP55 rated for outdoor use

Technical specifications

• Product code: XDL12TT-AM3
• Range: 12m
• Coverage: 85 degree volumetric; 17 degree curtain
• Detection zones: 22 over 2 planes
• Optimum mounting height: 1.2m
• Operating voltage: 9 to 16V DC (13.8V DC typical)
• Current: about 24mA at 13.8V DC
• Relay outputs: 3, rated 60V DC, about 50mA
• Tamper switch: 12V DC, 50mA
• IP rating: IP55; Environmental Class IV
• Operating temperature: -30°C to +70°C
• Dimensions: 188 x 77 x 84mm (H x W x D)
• Weight: 300g
• Warranty: 5 years (excluding lens)

Note: optional brackets (XD-FIXEDBRACKET, XD-WALLBRACKET, XD-45D-ADAPTER) are sold separately.
