Name: RGL FIREIS01 On/Off Latching Fire Isolation Switch
Brand: RGL Electronics
SKU: FIREIS01
Price: 20.30 GBP
Availability: InStock

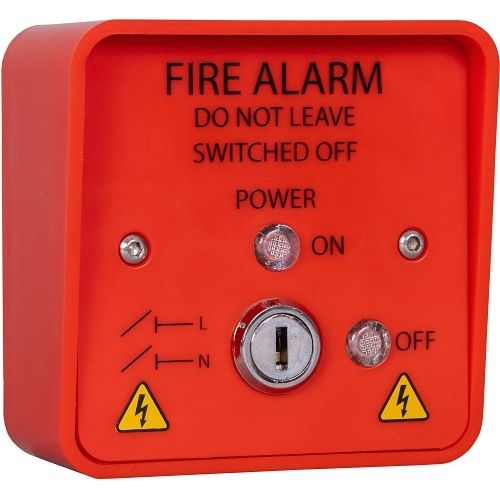

RGL FIREIS01 On/Off Latching Fire Isolation Switch

Roll over image to zoom in Click on image to zoom

Mains isolation key switch, providing a secure method of safely isolating the mains supply to a fire alarm system.

Main Features

When in OFF position the Red LED pulses and the internal fuse is disconnected from the supply
When in ON/POWER position the Green LED lights up
Cable tie points for secure installations
Can only be switched by an authorised person
Made in accordance with BS5839 Pt1 2013
Surface mounted as standard, but can be flush fitted using a 35mm kobo box

Specifications

Depth	55.00mm
Device Supported	Fire Alarm
Height	90.00mm
Input Voltage	230V AC
Limited Warranty	2-Year
Package Contents	Fire Isolation Switch 2 x Keys (KEY-FIS) 2 Screws Shrouded Surface Box
Package Type	Box
Product Line	Fire Accessory
Product Series	RGL FIRE
Width	90.00mm
Colour	Green
RoHS Compliant	Compliant
WEEE Compliant	Compliant

Downloads

Product Manual
