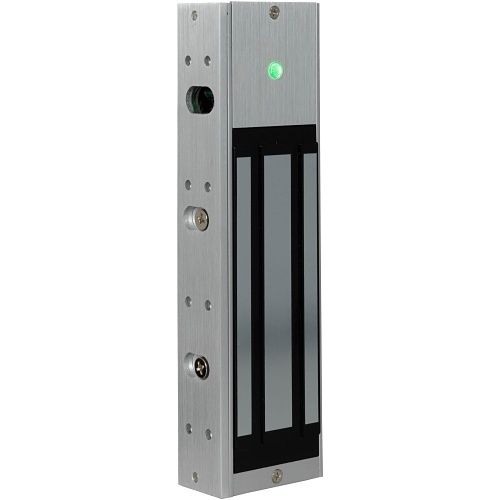

RGL ML1200-M Magnet Monitored 1200lbs, 545kg Force
SKU: ML1200-MBrand: RGL Electronics
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 30 | 2 to 3 working days |
RGL ML1200-M Magnet Monitored 1200lbs, 545kg Force
£61.25
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Standard monitored maglock 1200lb / 545kg
- Fire Tested (30, 60, 90 and 120 min timber door sets)
- Multi LED indication on ML600-D-M
- No residual magnetism
- Easy and safe installation system
- Fail Safe Operation (Power to Lock)
Frequently bought together
RGL Electronics
RGL ML1200-MDS Monitored Door Status Magnetic Lock, Aluminium
Sale price£85.90
In stock
Product details
The RGL ML1200-M is an electromagnetic lock ideal for use with most access control/entry systems. It is also suitable for wooden, metal or glass doors and has an impressive holding force of 545kg or 1200lbs. This unit features built-in surge protection and is suitable for use on both 12 and 24 volt systems. The ML1200-M also includes a monitoring contact and has been fire tested to BSEN1634-1-2014.
Main Features
- Standard monitored maglock 1200lb / 545kg
- Fire Tested (30, 60, 90 and 120 min timber door sets)
- Multi LED indication on ML600-D-M
- No residual magnetism
- Easy and safe installation system
- Fail Safe Operation (Power to Lock)
- Voltage free relay contacts
- Dual Voltage 12-24VDC
- Suitable for internal use
Specifications
| Application/Usage | Door |
|---|---|
| Compatibility | ADJ1200-L; AH1200; BK1200-F-L/AB; BK1200L; BK1200ZL; Suitable Brackets/Housings |
| Depth | 40.00mm |
| Door Supported | Single Door |
| Features | Monitored; Surge Protection |
| Finishing | Stainless Steel |
| Height | 267.00mm |
| Holding Force | 544.30kg |
| Input Voltage | 12V DC; 24V DC |
| Limited Warranty | 2-Year |
| Material | Aluminum |
| Mount Type | Surface Mount |
| Package Contents |
|
| Product Line | Electro Magnetic Lock |
| Product Series | RGL Maglock Range |
| Product Type | Magnetic Lock |
| Width | 73.00mm |
| Certifications & Standards | EMC EN61000-6-1 & 3; EN1634-1; EN62368-1; LVD |
| Input Current | 300mA |
| Manufacturer | RGL Electronics Ltd |
| RoHS Compliant | Compliant |
| WEEE Compliant | Out of Scope |
Downloads
Product datasheet
RGL ML1200-M Magnet Monitored 1200lbs, 545kg Force Product datasheet · ML1200-M · PDF Open datasheet
