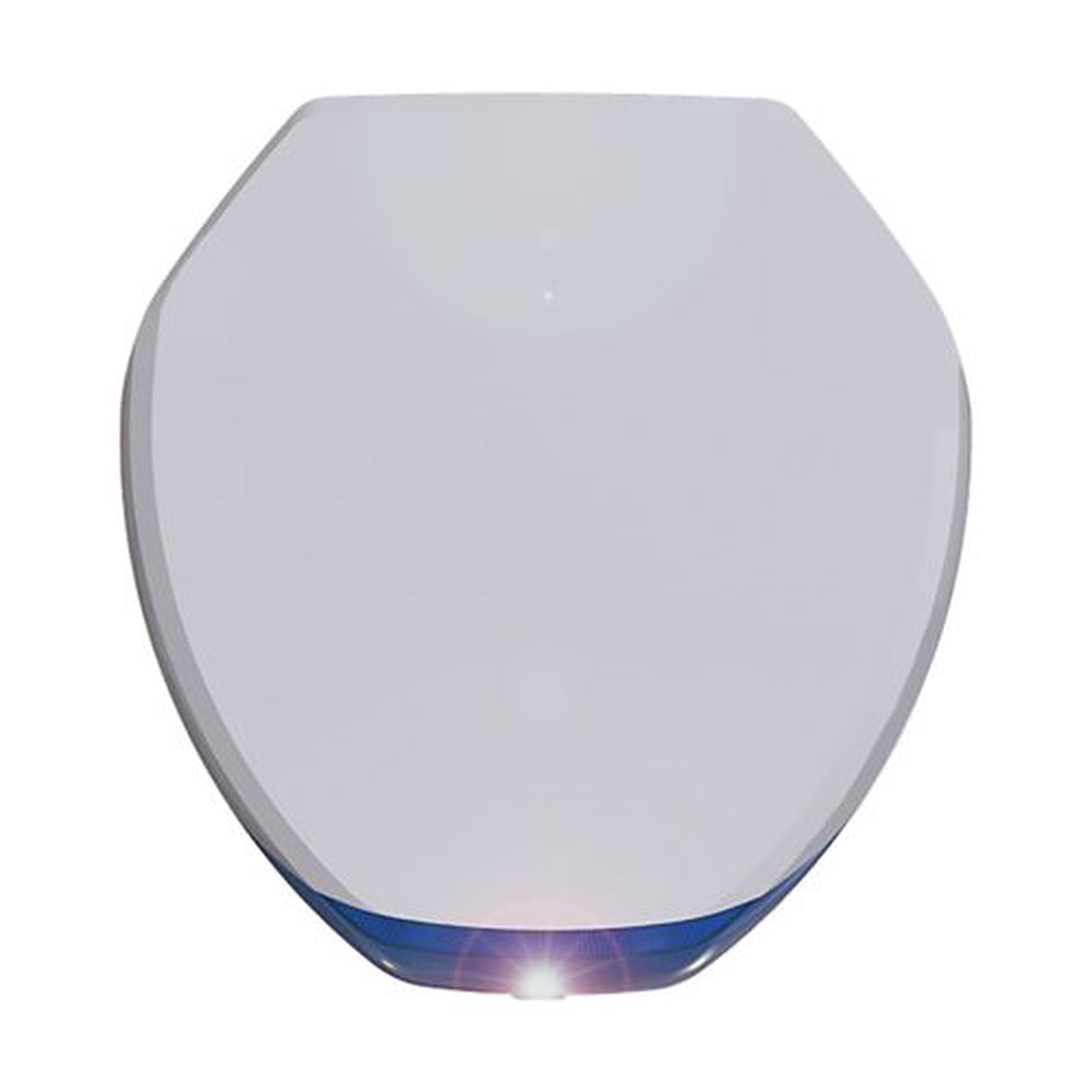

The Scantronic SDR-CV-BL-PLUS is a white external siren cover with a blue lens for the Eaton Scantronic external sounder range.
This -PLUS version adds backlight support. In Eaton's datasheet the -PLUS covers are listed as cover options for the wired SDR-W-EXT-NC-PLUS external sounder, which is backlight-ready.
Key features
- White cover with blue lens
- Backlight support
- Impact-resistant construction: ABS cover with polycarbonate lens
- Common enclosure design across the Scantronic external sounder range
- Also available with red or orange lenses
Technical specifications
- Part number: SDR-CV-BL-PLUS
- Material: ABS (cover), polycarbonate (lens)
- Colour: white with blue lens
- Backlight support: yes
- Listed for: SDR-W-EXT-NC-PLUS wired external sounder
- Dimensions (as listed by Eaton): 290 x 275 x 60 mm
- Weight: 0.56 kg
- Mounting: surface
