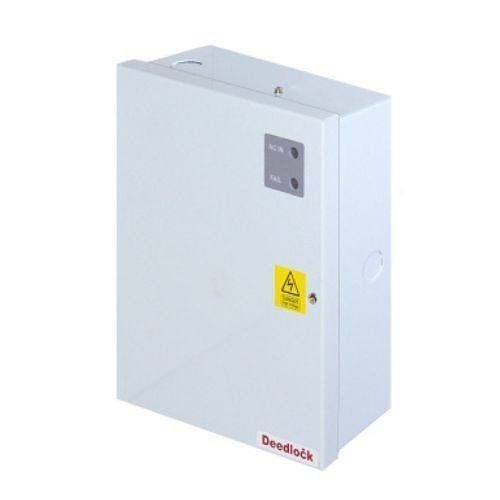

Deedlock 12V DC Power Supply Units are all switch mode units with either 1A, 2A, 3A. These high efficiency and cost effective units are ideal for use in intruder, access control and general security applications.
Main Features
Full electronic short circuit and overload protection on load output under mains operation
High efficiency electronics for reduced running costs and lower operating temperatures
Installer safe design with all high voltage electronic fully shrouded
Lid open and REAR anti-vandal tamper detection
Mains transient protection
Green Mains Present LED
Red Fault LED
Specifications
Amperage
2.00A
Compatibility
Intruder
Access Control
General Security Applications
Depth
75.00mm
Environmental Certification
RoHS; WEEE
Environmentally Friendly
Yes
Height
200.00mm
Input Voltage
90-264V AC
Limited Warranty
1-Year
Mount Type
Junction Box Mount
Output Current
2.0000A
Output Power
0W
Output Voltage
12V DC
Product Type
Power Supply
Certifications & Standards
EMC 2004/108/EC; Low Voltage 2006/95/EC; RoHS 2002/95/EC; WEEE 2002/96/EC
