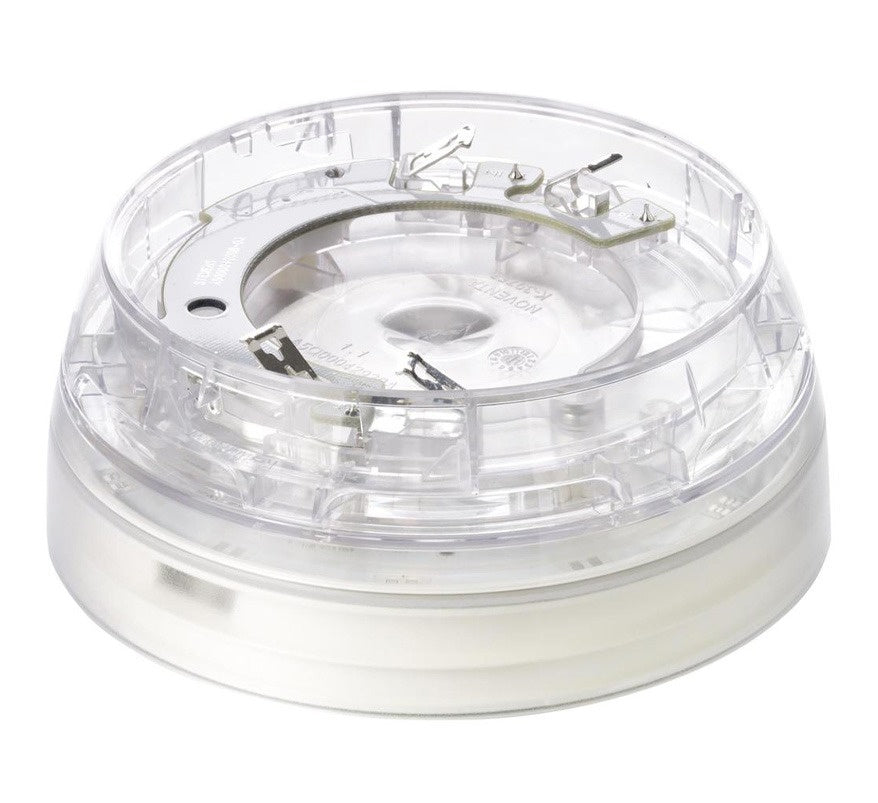

The Siemens DBS729 (S54372-F14-A1) is a sounder interbase with supplementary optical indication for the addressable C-NET detector bus, used with Cerberus PRO FC72x and Cerberus FIT FC361 fire control panels. It fits between a DB72x detector base and a point detector to form a single unit, and gives both an audible alarm and flashing red LEDs in the event of fire. Typical uses include hotel rooms, restrooms and offices.
Key features
- Addressed on C-NET, with its own device address, configurable independently of the detector
- Powered from C-NET: no auxiliary supply needed
- 11 tones and 2 programmable alarm levels; sounds synchronised across all alarm devices
- Adjustable sound level up to 89dBA
- Red LEDs with three programmable luminous intensity levels and two flashing modes (not available with all panels)
- Integrated line separator
- Compatible with all Cerberus PRO FD720 series point detectors; a BP720 blanking plate can be fitted if no detector is used
- Mounts on a DB72x detector base (sold separately)
Technical specifications
-
Order number: S54372-F14-A1
-
Operating voltage: 12 to 33V DC
-
Quiescent current: Max. 250µA
-
Current, sound active: 3.5mA
-
Current, optical indicator active: 1.5 / 4.0 / 6.5mA (dark / medium / light)
-
Current, sound and optical active: 5.0 / 7.5 / 10.5mA (dark / medium / light)
-
Sound level (alarm): 82 to 89dBA
-
Tones: 11
-
Luminous intensity: 0.9 to 3.2cd (supplementary indication)
-
Communication protocol: C-NET
-
System compatibility: FS720, FC360
-
Colour: Approx. RAL 9010 pure white / translucent
-
Conductor cross-section on detector base: 0.2 to 1.5mm²
-
Protection category: IP21C with RS721 interbase seal
-
Operating temperature: -25 to +55°C
-
Storage temperature: -30 to +75°C
-
Dimensions: Ø127.4 x 51.6mm (interbase)
-
Weight: 0.236kg
-
Standards: EN 54-3 type A, EN 54-17
-
Approval: VdS G211084
