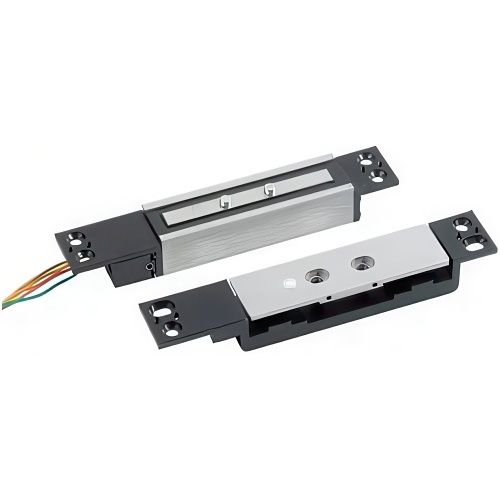

STP-SL183 Monitored Micro Shearlock with Auto Re-Lock, 12VDC
£110.45
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Auto relock with adjustable time delay 0.5-25 seconds
- Lock monitoring
- Door status monitoring
- Recommended for horizontal mount
- Mortice fitting
- Fail-safe
Frequently bought together
Product details
This shearlock is ideal for single action or double action doors. The shear locking action requires an extremely high force to overcome and mortice instalation provides a concealed finish.
Main Features
- Auto relock with adjustable time delay 0.5-25 seconds
- Lock monitoring
- Door status monitoring
- Recommended for horizontal mount
- Mortice fitting
- Fail-safe
Specifications
| Application/Usage | Single action or double action doors |
|---|---|
| Depth | 30.0mm |
| Features | Auto relock with adjustable time delay 0.5-25 seconds; Door status monitoring; Fail-safe; LED indicator included - Optional install; Lock monitoring; Magnetic distance (max): 3mm 12Vdc / 5mm 24Vdc; Monitoring relay: NO and NC contacts; Mortice fitting; Recommended for horizontal mount; Up to 1200kg (2600lb) holding force |
| Holding Force | 1200kg |
| Input Voltage | 12-24V DC |
| Limited Warranty | 1-Year |
| Product Type | Electric locking devices |
| Width | 182.0mm |
| Dimensions | 182 mm x 30 mm |
| Localization | English |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
STP-SL183 Monitored Micro Shearlock with Auto Re-Lock, 12VDC Product datasheet · STP-SL183 · PDF Open datasheet
