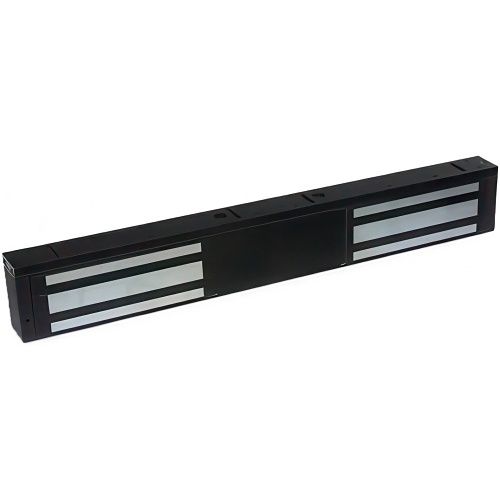

STP STEALTH40DS Double Standard Monitored With Door Status Maglock, Black
SKU: STEALTH40DSBrand: STP
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 20 | 2 to 3 working days |
STP STEALTH40DS Double Standard Monitored With Door Status Maglock, Black
£163.55
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- MOV provides spike and surge protection
- Fail-safe operation (power to lock)
- Anti-residual magnetism protection
- Top-plate, armature-plate and fixings included
- Dual voltage 12Vdc or 24Vdc (selectable)
- Surface mount
Frequently bought together
STP
STP STEALTH500ABP Standard Armature Plate, Surface Mount, Fire Rated, Stealth Black Finish
Sale price£20.05
In stock
STP
STP STEALTH500ZL Standard Adjustable Z and L Bracket Set for Inward-Opening Doors, Stealth Black Finish
Sale price£26.45
In stock
STP
STP STEALTH500ZLDC Standard Double Covered Z and L Bracket Set, Fully Adjustable, Stealth Black Finish
Sale price£73.30
In stock
STP
STP STEALTH520 Standard Armature Housing for Maglocks, Surface Mount, Fire Rated, Stealth Black Finish
Sale price£20.05
In stock
STP
STP STEALTHNT200S Surface Mount Contactless Door Release Button, Black
Sale price£41.50
In stockProduct details
Standard monitored double magnetic lock designed for indoor applications where 545kg holding force is required. LED lock status indication and relay contacts for signalling. Includes door status monitoring contacts to monitor the door position.
Main Features
- MOV provides spike and surge protection
- Fail-safe operation (power to lock)
- Anti-residual magnetism protection
- Top-plate, armature-plate and fixings included
- Dual voltage 12Vdc or 24Vdc (selectable)
- Surface mount
- Stealth black finish
- Lock monitoring
- Door status Monitoring
- Fire rated
Specifications
| Application/Usage | Indoor applications |
|---|---|
| Depth | 40.00mm |
| Features | Anti-residual magnetism protection; Door status monitoring; Dual voltage 12Vdc or 24Vdc (selectable); Fail-safe operation (power to lock); Fire rated; LED lock status indication; Lock monitoring; MOV provides spike and surge protection; Stealth black finish; Surface Mount |
| Finishing | Stealth Black |
| Height | 73.00mm |
| Holding Force | 545.00kg |
| Input Voltage | 12V DC; 24V DC |
| Limited Warranty | 1-Year |
| Material | Aluminum |
| Mount Type | Surface Mount |
| Package Contents | Armature-plate; Fixings; Top-plate |
| Product Series | STEALTH LOCKING |
| Product Type | Magnetic Lock |
| Weight | 9.60kg |
| Width | 532.00mm |
| Colour | Black |
| Dimensions | 532 mm x 73 mm x 40 mm |
| Localization | English |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
STP STEALTH40DS Double Standard Monitored With Door Status Maglock, Black Product datasheet · STEALTH40DS · PDF Open datasheet
