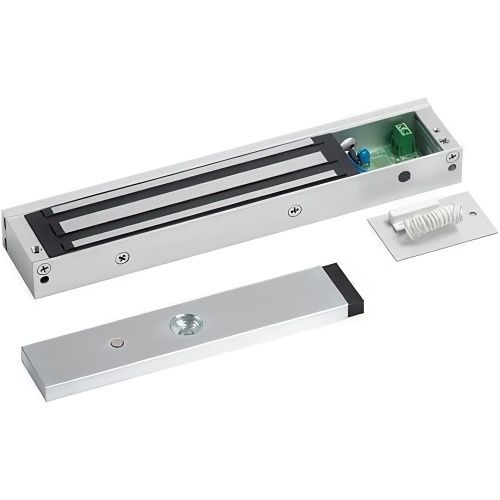

The compact design of this magnetic lock makes it ideal for most indoor applications where 275kg holding force is sufficient. This model includes door status monitoring contacts to monitor the door position (open or closed).
Main Features
MOV provides spike and surge protection
Fail-safe operation (power to lock)
Anti-residual magnetism protection
Top-plate armature-plate and fixings included
Slim design; Surface mount
Dual voltage 12Vdc or 24Vdc (selectable)
Silver anodised aluminium finish
Lock monitoring
Door status monitoring
Specifications
Application/Usage
Indoor applications
Depth
26.0mm
Features
Anti-residual magnetism protection; Door status monitoring; Dual voltage 12Vdc or 24Vdc (selectable); Fail-safe operation (power to lock); Lock monitoring; MOV provides spike and surge protection; Red/Green LED indicator; Silver anodised aluminium finish; Slim design; Surface mount; Top-plate, armature-plate and fixings included
Finishing
Silver Anodised
Height
48.0mm
Holding Force
275kg
Input Voltage
12V DC; 24V DC
Limited Warranty
1-Year
Material
Aluminium
Mount Type
Surface Mount
Package Contents
Arm safety kit; Armature-plate; Fixings; Top-plate
