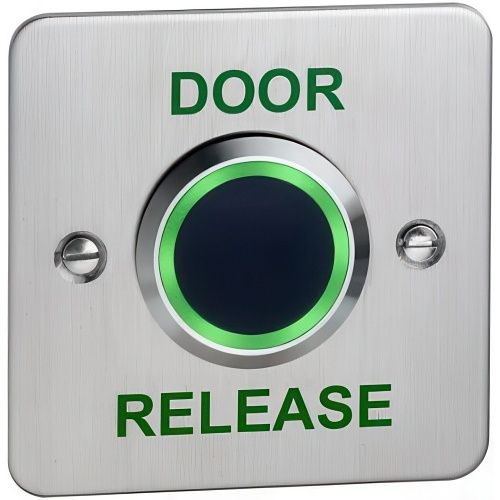

This no touch button has a touchless proximity switch activated by close proximity of the hand. No need to touch making it ideal for clean environments. Adjustable timer and proximity range.
Main Features
Illuminated halo normally red, going green when activated
Infrared proximity sensor
Single gang stainless steel back-plate, screen printed ‘DOOR RELEASE’
Adjustable proximity range 4cm to 15cm (+/- 25%);
Adjustable door-open period (0.5-20s) or toggle mode
Flush mount
IP65 (sensor unit only)
Specifications
Application/Usage
Clean environments
Contact Type
NC (Normally Closed); NO (Normally Open)
Current Rating
45mA
Features
Adjustable door-open period (0.5-20s) or toggle mode; Adjustable proximity range 4cm to 15cm (+/- 25%); Flush Mount; Illuminated halo normally red, going green when activated; Infrared proximity sensor; IP65 (sensor unit only); Single gang stainless steel back-plate, screen printed 'DOOR RELEASE'
Gang Type
Single Gang
Ingress Protection Rating
IP65
Input Voltage
12-24V DC
Limited Warranty
1-Year
Material
Stainless Steel
Maximum Timer Duration
20s
Mount Type
Flush Mount
Print/Message
Door Release
Product Type
No Touch Infrared Exit Button
Maximum Operating Temperature
70°C
Dimensions
85 mm x 85 mm x 25 mm
LED Indicator
Illuminated halo normally red, turning green when activated
