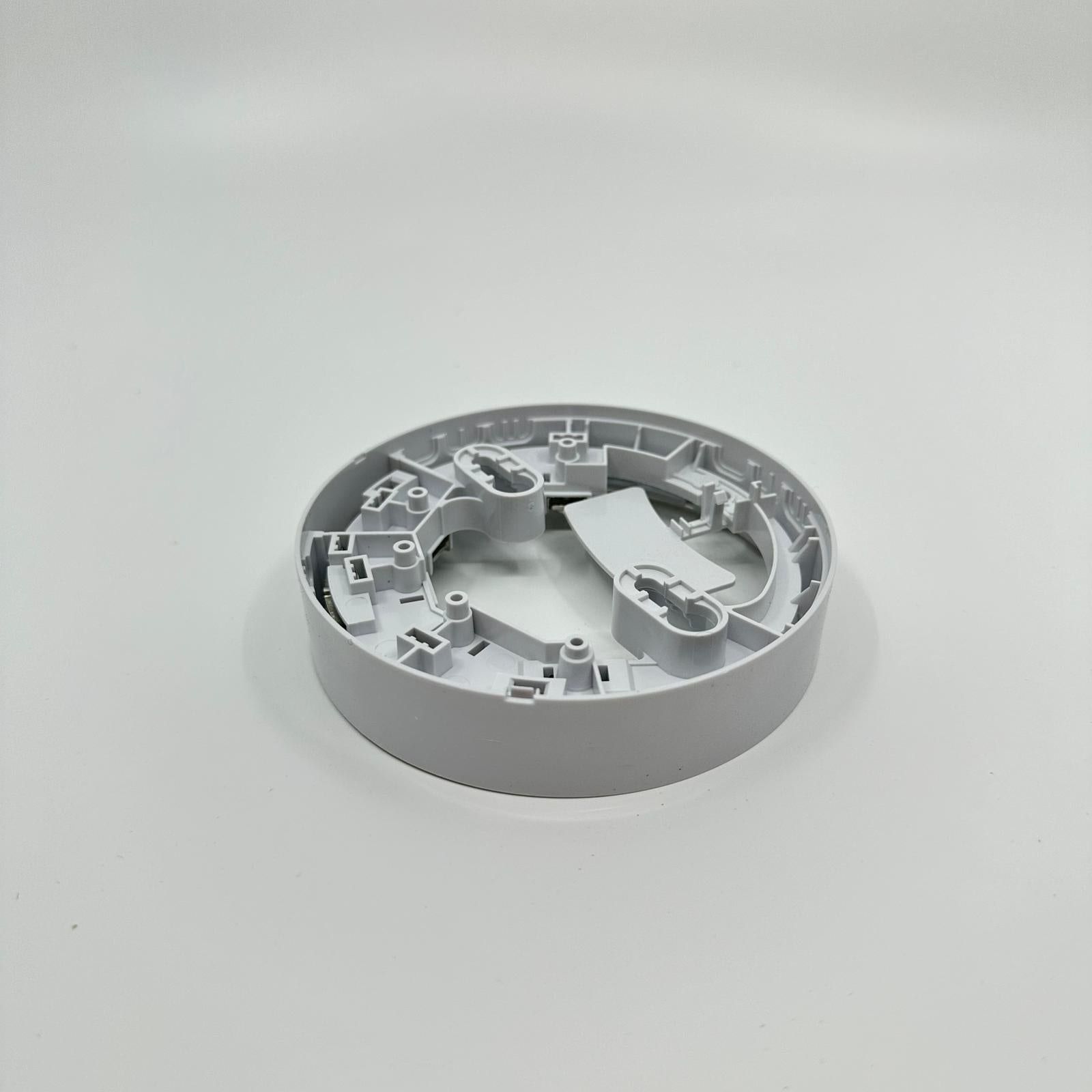

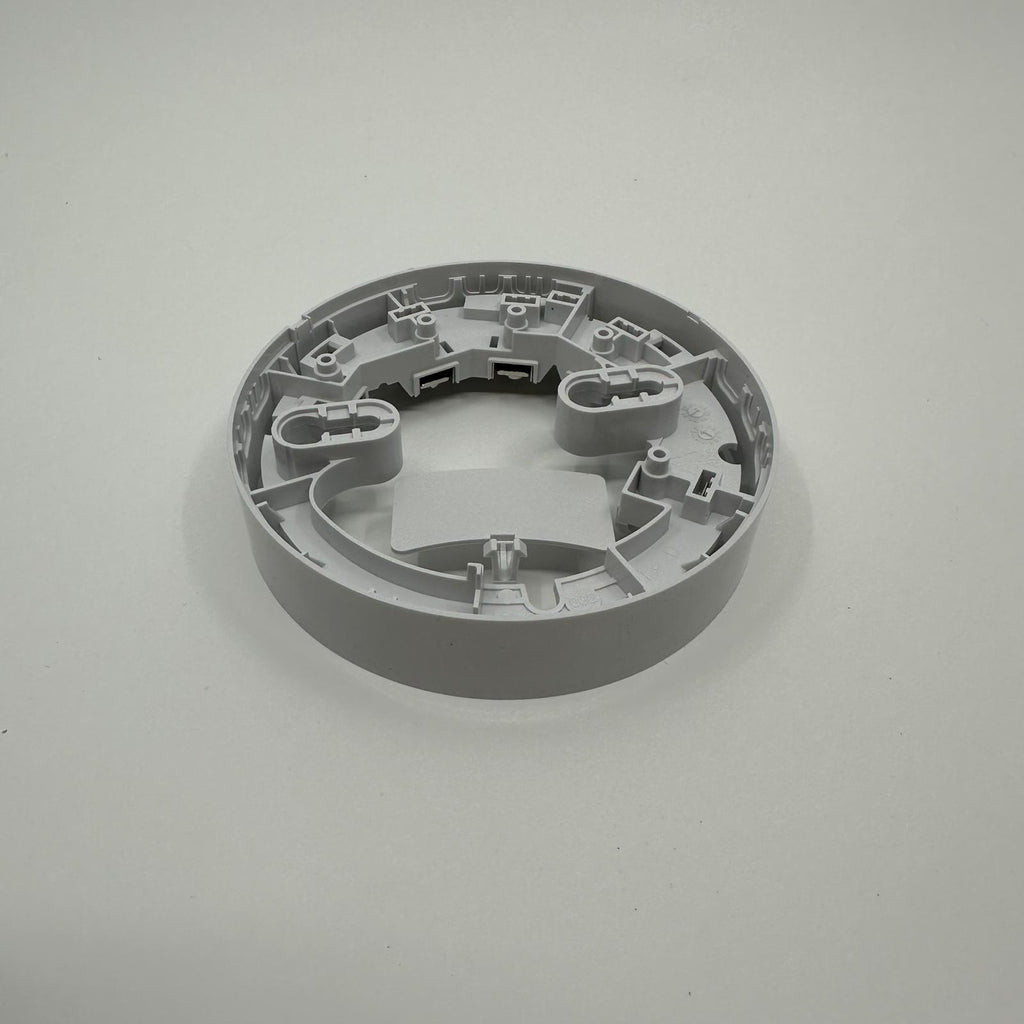

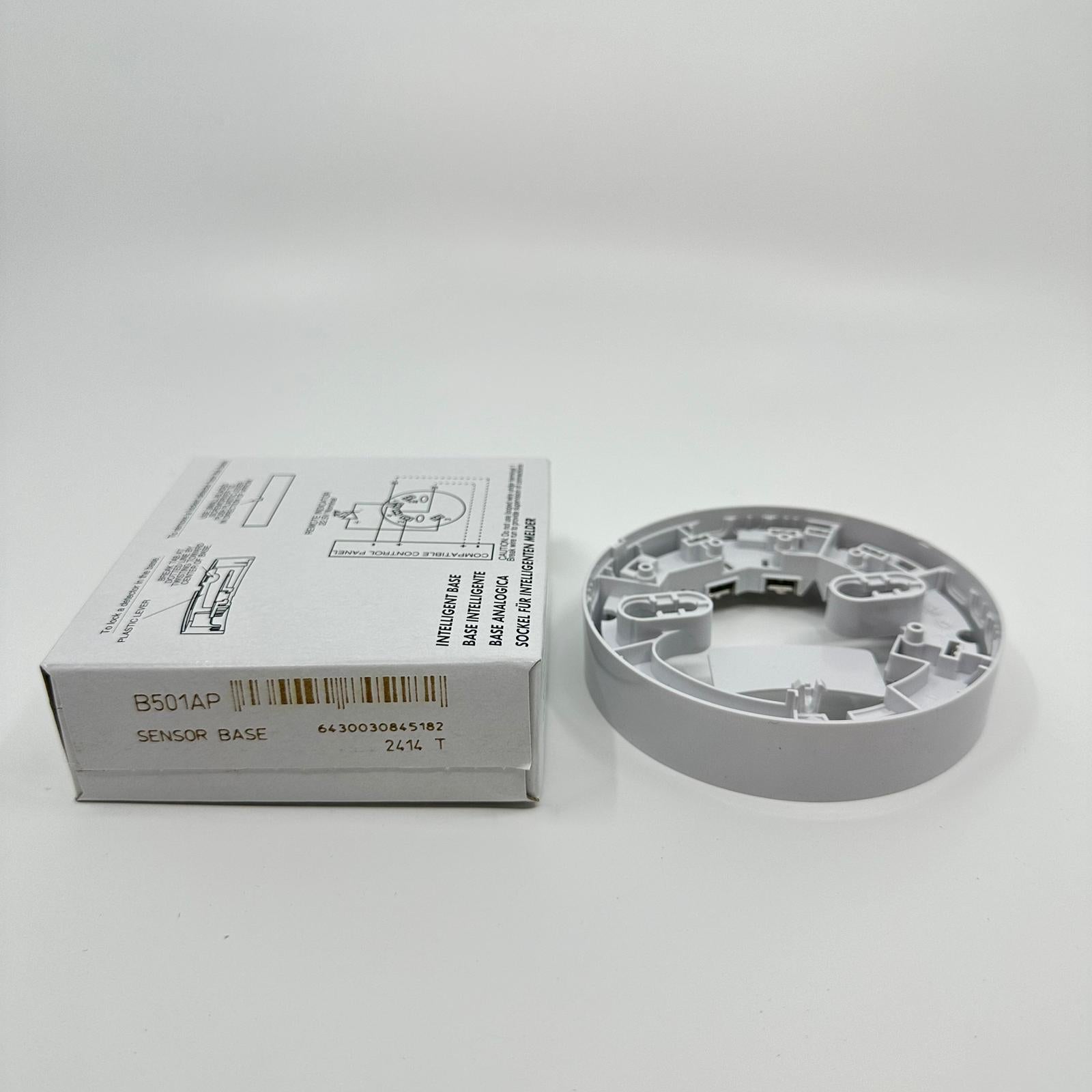

System Sensor B501AP Addressable Base Pure White
Analogue sensor base with SEMS screw connections for isolated and non-isolated detectors and address identification label. PURE WHITE
This System Sensor base is designed for use with all 500, 200, 200+ and 200 Advanced intelligent ranges of sensors and their variants. The standard B501AP is white, an IV suffix indicates the base is ivory in colour, a BK suffix for black.
- Width: 102mm
- Weight: 39 g
- Height: 22.5 mm
- Mounting to mounting boxes with a hole spacing of 60mm. Screw size max diameter 4 mm (head diameter 8 mm).
- -30°C to +60°C operating temperature range
- 10% to 93% Relative Operating Humidity
- Compatible with all S200 addressable sensors
