Product details

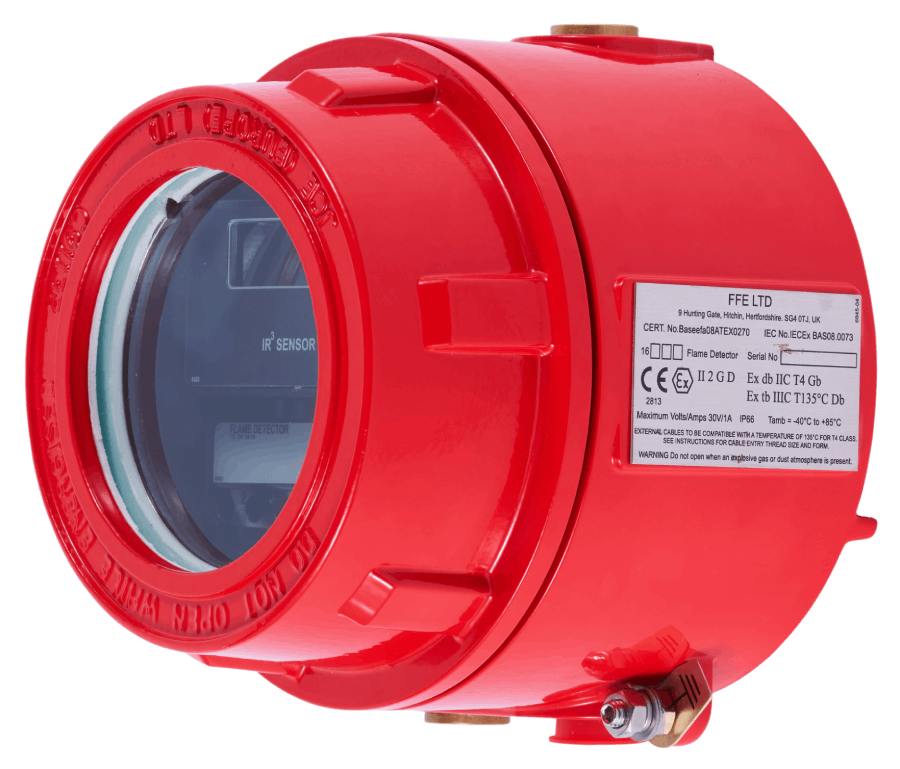

A Talentum 16000 series IR3 flame detector in a flameproof (Ex d) housing, FM / CSFM-approved version. Three infrared sensors respond to different wavelengths of the flickering (1-15 Hz) radiation emitted by flames, discriminating between real fires and other radiation sources.
Key features
- Triple IR (multi-spectrum) sensing with excellent immunity to false sources
- Detects almost all flames, from hydrocarbon fires through to invisible hydrogen fires
- Tolerant of fumes, vapours, dust and mist; suitable for indoor and outdoor areas
- Selectable sensitivity and response speed
- Programmable relay outputs - normally open or normally closed, latching or non-latching
- Built-in automatic and manual test
- Flameproof (Ex d) copper-free aluminium alloy enclosure
Specification
| Product code | 16519-20 |
|---|---|
| Brand | Talentum |
| Detector type | IR3 (triple infrared) flame detector |
| Housing | Copper-free aluminium alloy |
| Dimensions | 158 (h) x 149 (w) x 134 (d) mm |
| Cable entries | 3 x 20 mm |
| Supply voltage | 14 to 30 Vdc |
| Quiescent current | 3 mA to 8 mA |
| Alarm current | 9 mA to 28 mA |
| Operating temperature | -10 to +55 °C |
| Relative humidity | 95% non-condensing |
| Range (Class 1 / Class 3) | 25 m / 12 m |
| Field of view | 90° minimum cone |
| Operating wavelength | IR 1.0 to 2.7 micrometres |
| Approvals | FM, CSFM |
