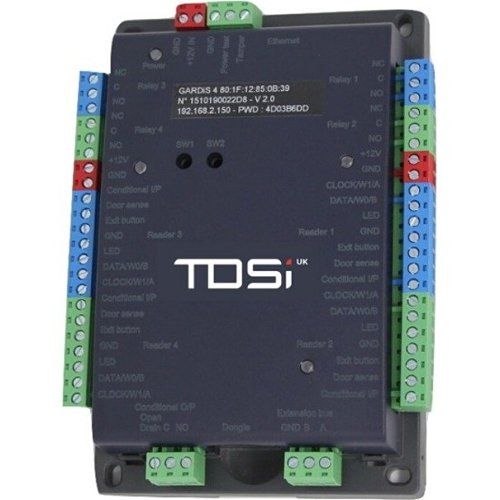

GARDiS is the new user-friendly, cyber-secure, web embedded access controller developed by TDSi. Easy to install and no additional software is required.
The intuitive design of the GARDiS controller means it requires minimal training to install. Fully expandable and capable of integration with Simons Voss and Assa Abloy wireless locks, the GARDiS controller also supports all standard reader output formats.
Main Features
Easy to specify & quote
Hassle-free installation
Easy to maintain
No bank-breaking add-ons
5-year warranty
Cyber ready controller
True IP
No dedicated software required
No engineering tools required
No quibble returns
Specifications
Application/Usage
Door
Communication Technology
IP; RS-485; TCP/IP
Compatibility
Assa Abloy; Simons Voss
Depth
185.40mm
Ethernet
Yes
Height
48.30mm
Input Voltage
100-240V AC; 9-14V DC
Limited Warranty
2-Year
Number of Doors
4
Number of Users
5000
Package Contents
4 Door Access Controller
TDSi Reader Configuration Card
4 x Supression Diodes
Best Practice Leaflet
Packaged Quantity
1
Product Type
Door Access Control Panel
Weight
300.00g
Width
129.50mm
Additional Information
Limited functionality available (when not using with GARDIS Software).
