Testifire XTR2 All-In-One Connected Smoke & Heat Detector Test Kit (TESTIFIRE-XTR2-001)

The Testifire XTR2 kit (TESTIFIRE-XTR2-001) from Detectortesters is a connected, all-in-one tester for functional testing of smoke and heat detectors. It generates smoke from a registered cartridge and heat from the same head, including a high-heat setting for detectors rated up to 100°C, and works with the DT Connect app to capture results and generate test reports automatically. The kit includes the XTR2 head unit, lithium-ion battery, smoke generator, charger kit and a smoke cartridge; it fits Solo access poles for testing at height.

Key features

• Smoke, heat and hi-heat testing in one head, with sequential and combined test modes
• High heat setting for testing heat detectors set to 100°C
• Automatic result capture using detector LED recognition (solid or blinking)
• Auto-generated test reports via the DT Connect app (free trial of DT Connect Premium included; subscription needed after the trial for full reporting features)
• Clearing mode to eliminate repeat alarms
• Auto LED torch and proximity sensor for testing in dark areas
• Field-replaceable battery, smoke generator and cartridge
• Compatible with ASD systems and flat detectors using the optional XTR2 ASD adaptor
• Lightweight design with re-designed ergonomics for use at height

Technical specifications

• Product code: TESTIFIRE-XTR2-001
• Application: smoke and heat detectors
• Power source: lithium-ion battery
• Stimulus: smoke cartridge and heat
• Smoke bursts per registered cartridge: 800
• Smoke tests per full battery charge: 550
• Other tests per full battery charge: 100 heat, 55 hi-heat or 250 combined tests
• Smoke generator life: 120,000 smoke seconds (approximately 8,000 smoke tests)
• Warranty: 2 years, with repair plans available after warranty

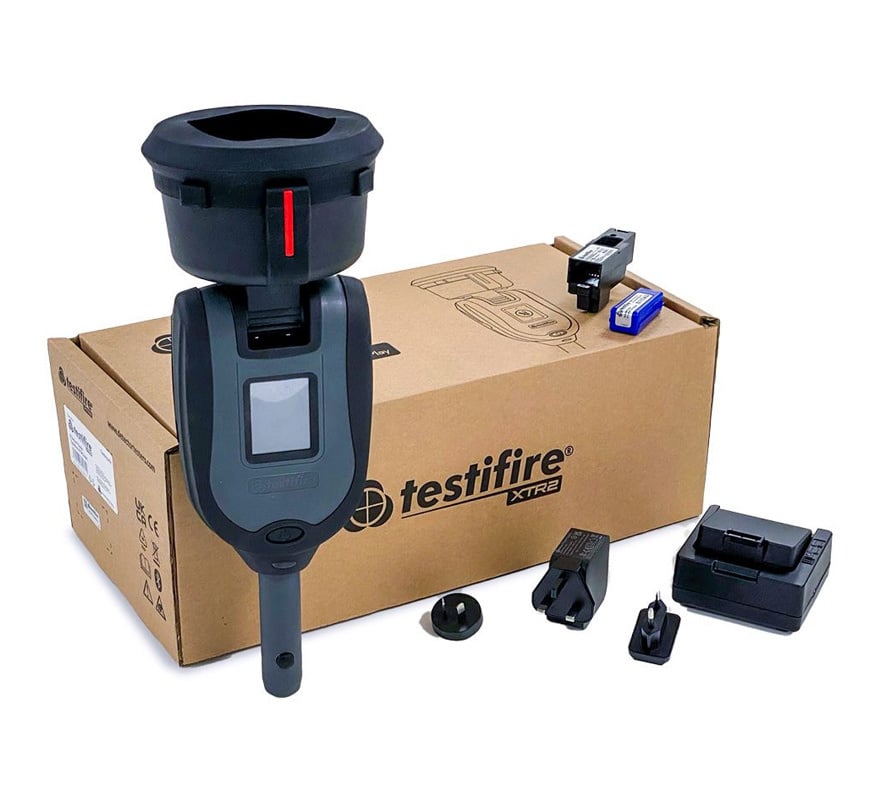

What's in the box

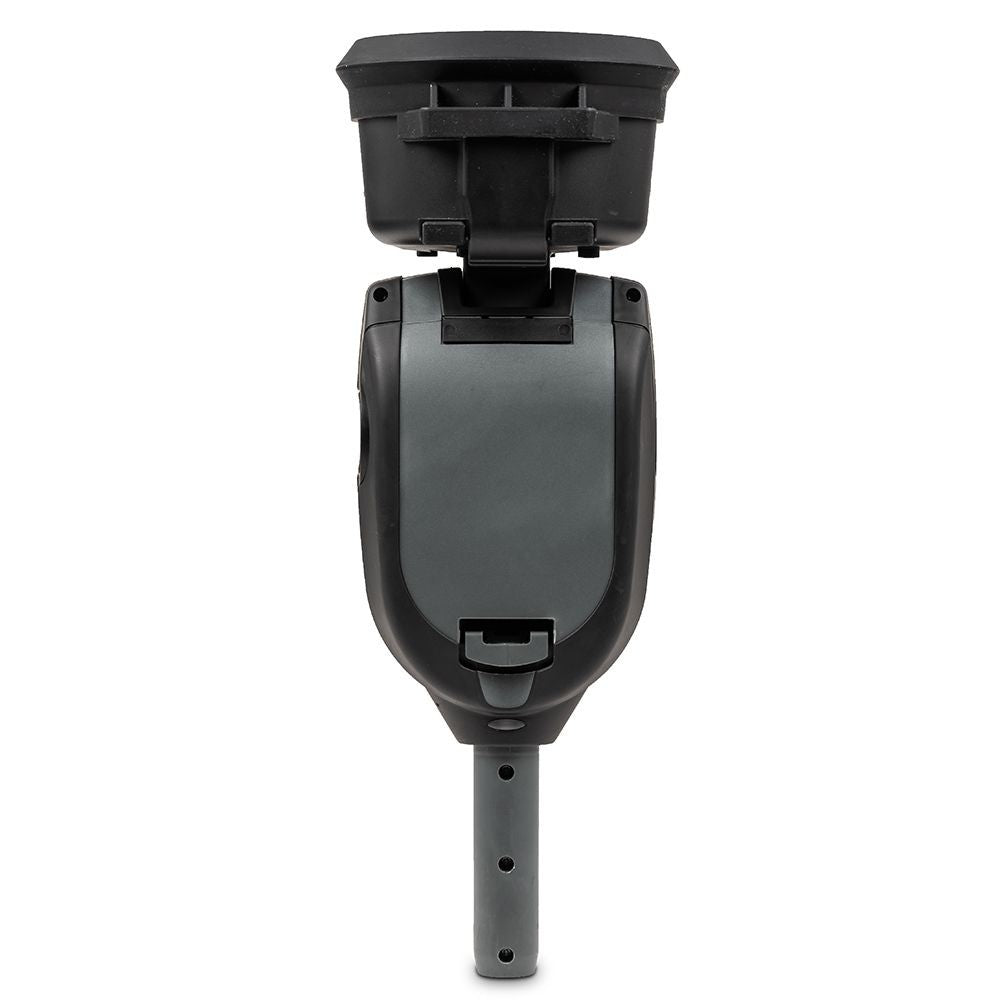

• 1 x Testifire XTR2 head unit (TESTIFIRE-XTR2-HEAD-001)

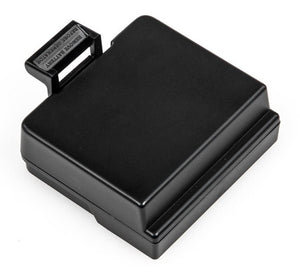

• 1 x lithium-ion battery (TESTIFIRE-BP-001)
• 1 x smoke generator (TESTIFIRE-GEN-001)
• 1 x charger kit (TESTIFIRE-CHAK-001)

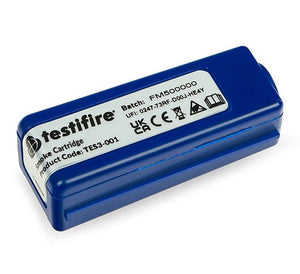

• 1 x TES3 smoke cartridge
