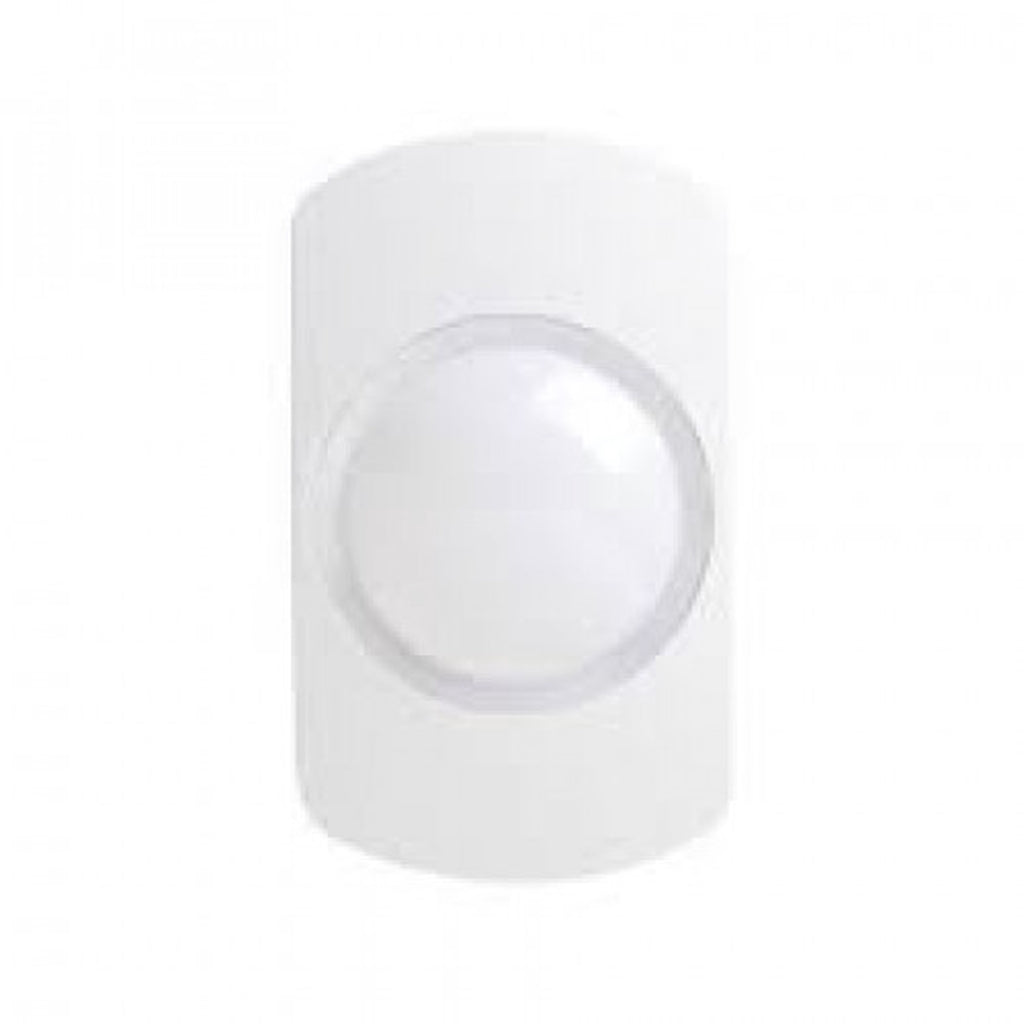

The Texecom Capture P15-W (GDA-0001) is a Grade 2 wireless 15m PIR motion detector for wall mounting, using Texecom's Ricochet® mesh wireless technology for use with Texecom wireless intruder alarm systems. It shares the same low-profile form factor as the wired Capture detectors and suits residential and retail applications.
Key features
- 15m / 90° volumetric coverage
- Dual element pyro
- Optional PetWise mode (non-compliant mode; up to 35kg pet immunity at 10m / 90°)
- EN 50131-2-2 and PD 6662:2017 Grade 2, Environmental Class II
- Ricochet® mesh wireless with automatic wireless set-up
- Tri-colour LED; front-loaded, fully sealed electronics
- Flexible mounting points; tamper fixing for removal-from-mounting detection
- Lifetime warranty (battery 24 months)
Technical specifications
- Detection: dual element PIR, 15m at 90°
- Maximum current: 18mA; quiescent current: 21µA
- Frequency: 868MHz (868.2 to 868.4MHz), max RF power 10mW, listen-before-talk receiver
- Operating voltage: 3V; battery type CR123 (supplied battery capacity 1250mAh)
- Low battery signal: 2.85V; detector runs for at least 30 days after low battery is signalled
- Mounting height: 1.5m to 3m (wall, corner or flat surface; internal use only)
- Operating temperature: -10°C to +55°C; humidity 0 to 95% non-condensing
- Dimensions: 65mm wide x 112mm high x 43mm deep
- Colour: white
- Weight (with fascia, insert and battery): 127g
