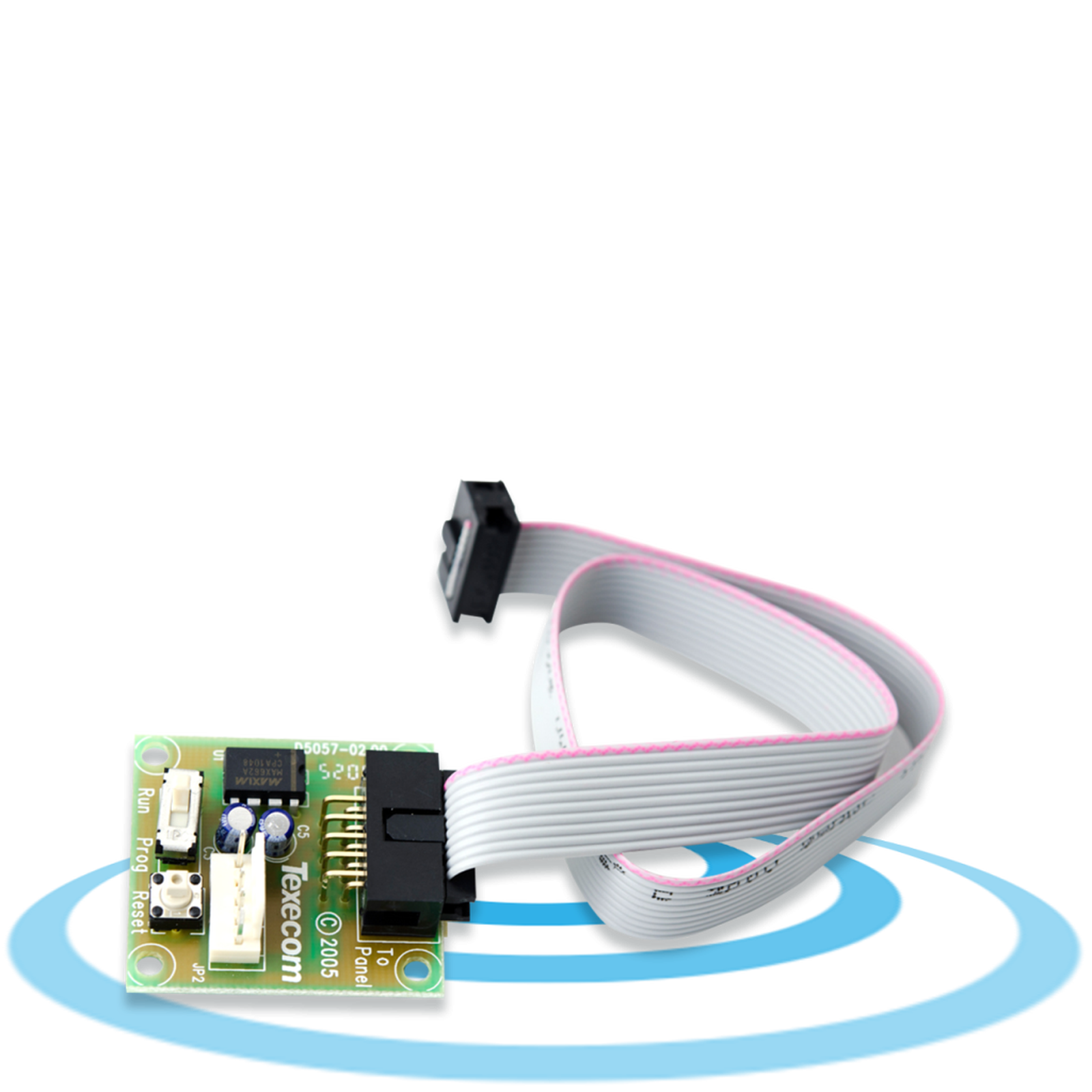

The Texecom Premier Elite Flasher Interface (CDH-0001) is the flash interface PCB used to update the firmware of Texecom Premier Elite series control panels. It connects between the control panel and a PC running the Premier Elite Flasher software, allowing engineers to flash-upgrade the panel firmware on site.
Key features
- Flash upgrades Premier Elite series control panel firmware
- Used with the Premier Elite Flasher software and a firmware data file
- On-board RESET button and Prog switch for flashing
- Flasher software covers Premier Elite 12/24/48/64/88/168/640 panels (V4 and V5 firmware) and 64/88/168/640 panels (V6 and later)
Technical specifications
- Part number: CDH-0001
- PC connection: via USB-Com (JAC-0001); an alternative version of the Flasher software is needed if a PC-Com (JAA-0001) is used
- Software: Premier Elite Flasher; Wintex UDL V6.2.5.0 or later recommended to save panel data before flashing
- Not compatible with non-Elite Premier panels
- Does not update the Ricochet expander firmware on -W panels
