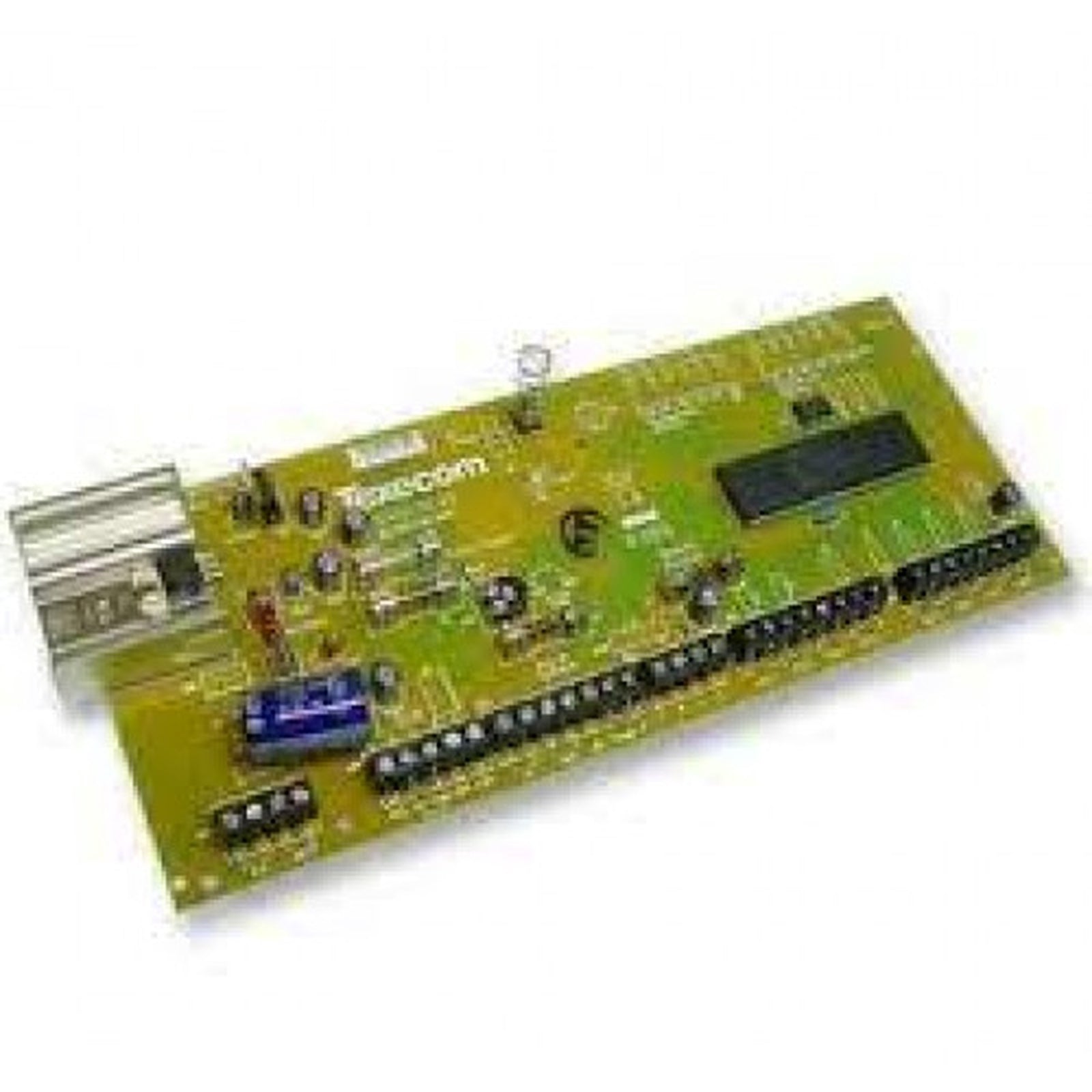

The Texecom Veritas R8 Plus/Excel PCB (CFD-0007) is the replacement main circuit board assembly for Texecom Veritas R8 Plus and Veritas Excel intruder alarm control panels. It replaces the PCB assembly inside the panel enclosure.
Key features
- 8 fully programmable zones plus global system tamper
- EOL or normally closed zone operation
- 8 channel communicator interface with line monitor
- Accepts up to 6 remote keypads (LED or LCD), including the Veritas Excel LCD keypad
- 4 programmable part set suites and 8 programmable access codes
- 250 event log, time and date stamped
- Upload/download compatible
Technical specifications
- Panel grading: PD 6662 Grade 2, Environmental Class II
- Endstation quiescent current: <50mA; alarm current: <150mA
- Panel power supply: 230V AC mains via the panel transformer, 1A DC maximum total current rating
- Loudspeaker output: one 16Ω or two 8Ω speakers (total load not less than 16Ω)
- Compatible panels: Veritas R8 Plus and Veritas Excel
