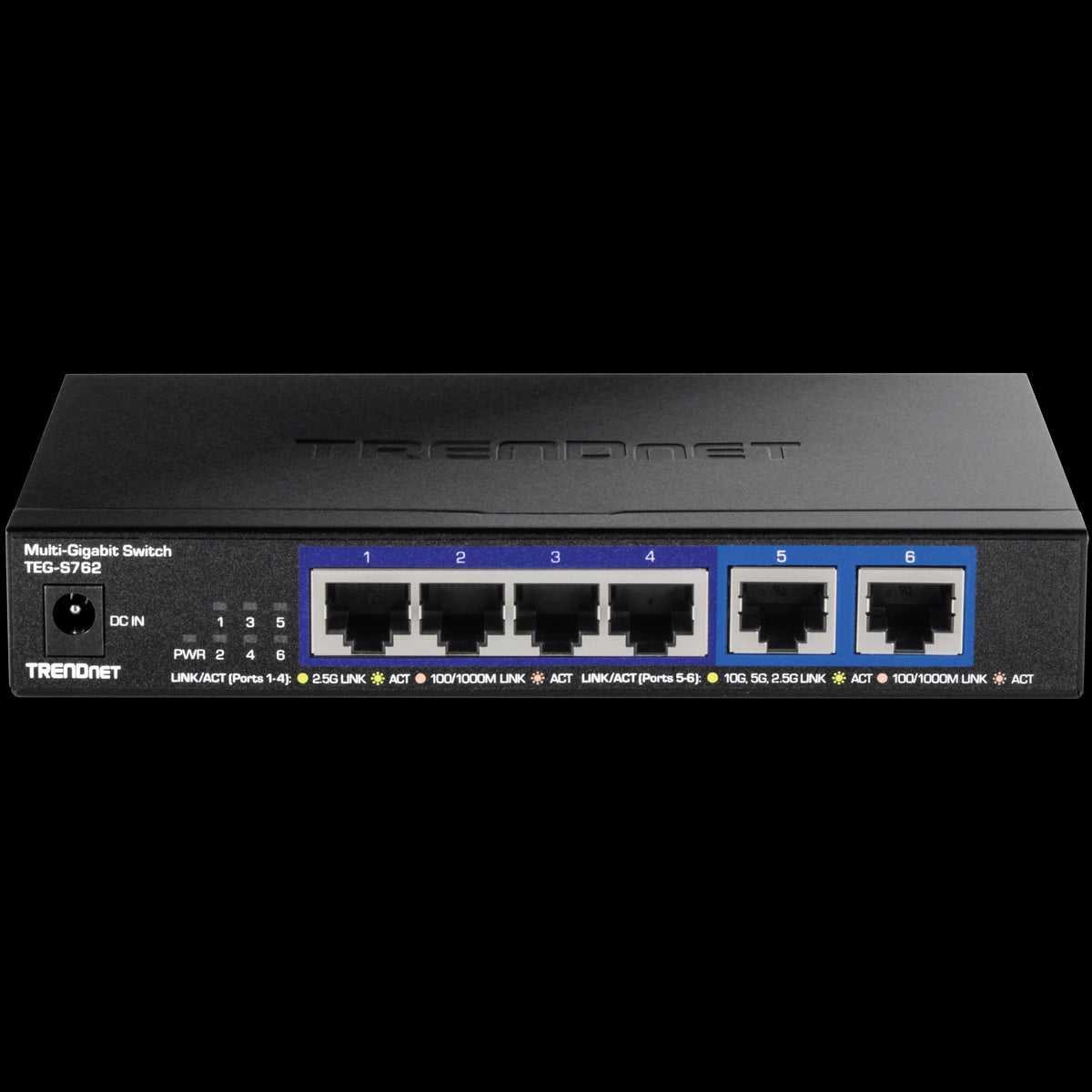

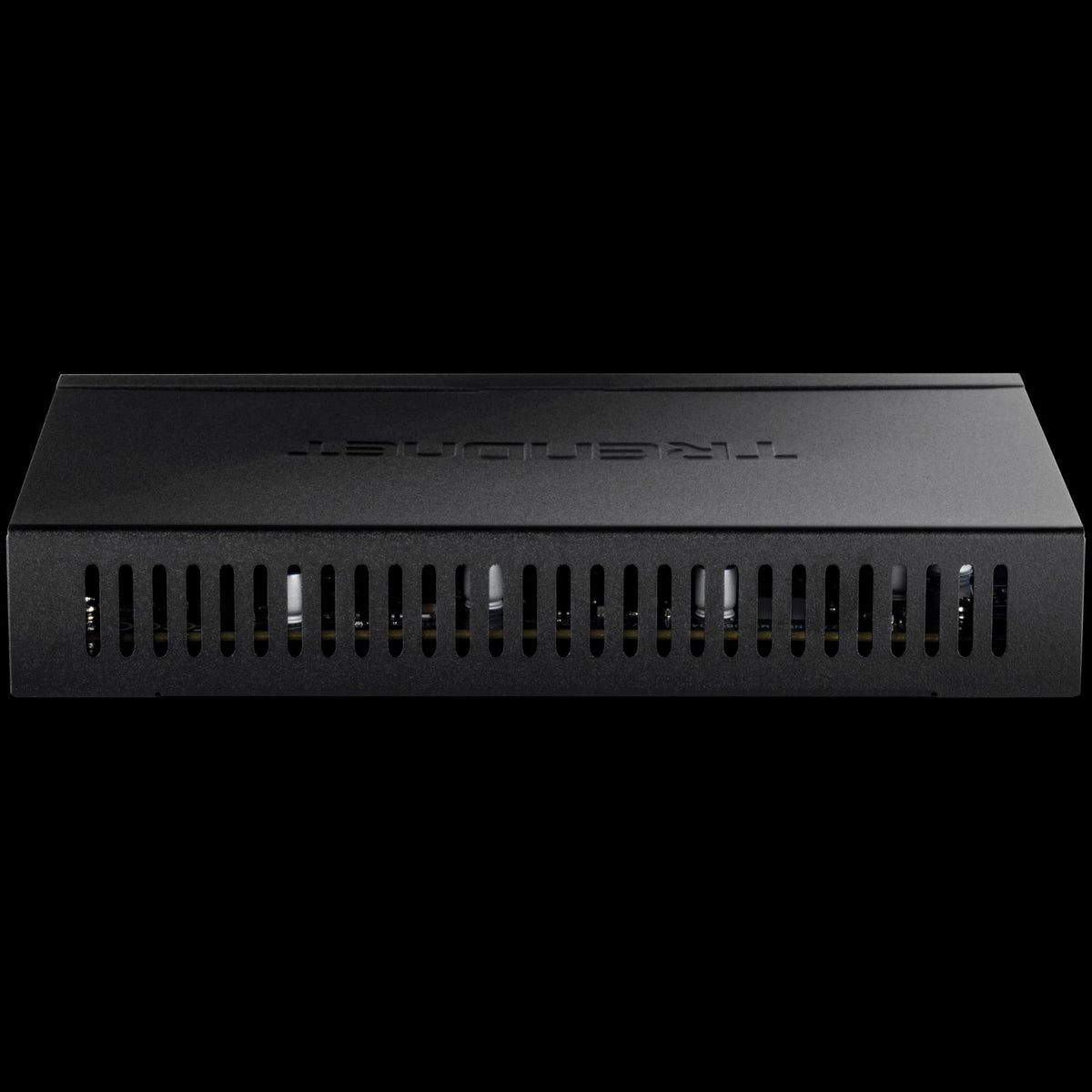

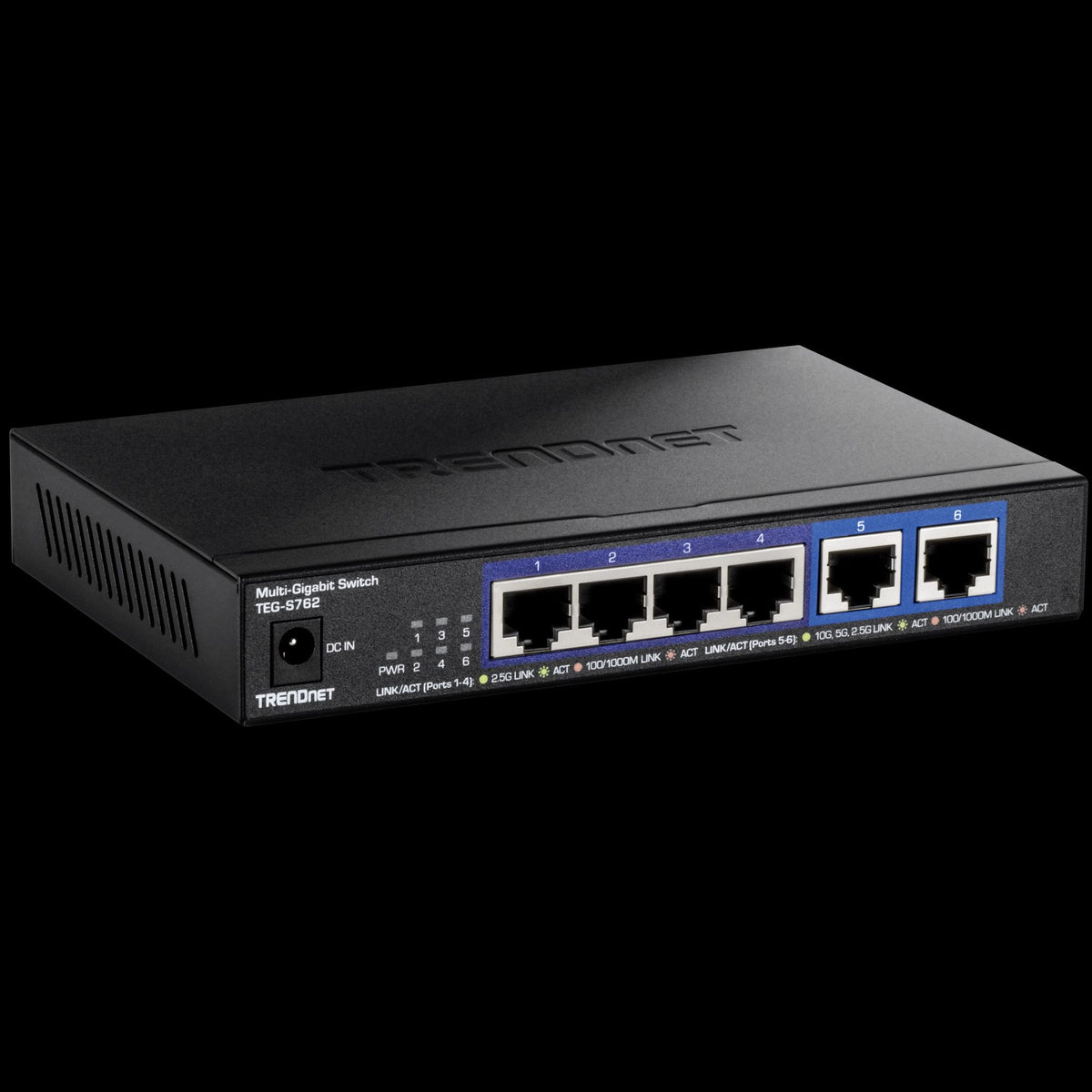

The TRENDnet TEG-S762 6-Port Multi-Gig Switch is designed for high-speed networking with a focus on performance and quiet operation. It features 4x 2.5G RJ-45 ports and 2x 10G RJ-45 ports, offering a total switching capacity of 60 Gbps to support demanding network environments. The switch includes a fanless design for silent operation and sturdy metal housing for durability. It supports jumbo frames up to 9KB and is compatible with existing CAT5e or better cabling. Additionally, the unit is wall mountable, facilitating flexible installation options.
Main Features
4x 2.5G RJ-45 ports
2x 10G RJ-45 ports
60 Gbps switching capacity
Fanless design for silent operation

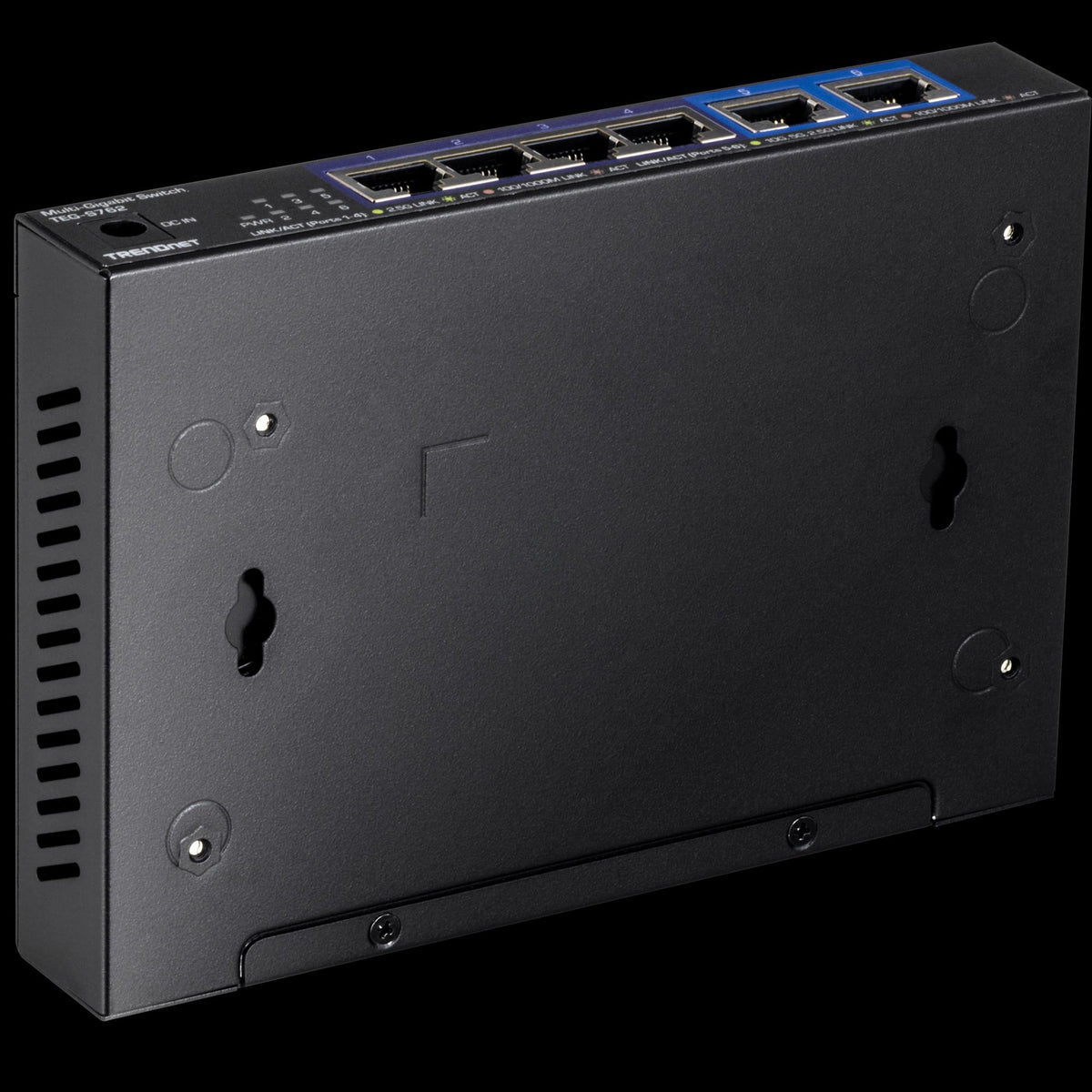

Wall mountable
Sturdy metal housing
Jumbo frame support up to 9KB
Compatible with existing CAT5e or better cabling
Specifications
Data Transfer Rate
2000Mbps
Depth
145.00mm
Features
2 x 10G RJ-45 ports; 4 x 2.5G RJ-45 ports; 60Gbps switching capacity; Compatible with existing Cat5e or better cabling; Fanless design for silent operation; Jumbo Frame support up to 9KB; Sturdy metal housing; Wall Mountable
Height
33.00mm
Input Voltage
100-240V AC
Limited Warranty
Lifetime
Material
Metal
NDAA Compliant
Yes
Number of Network (RJ-45) Ports
6
Number of Ports
6
Output Voltage
12V DC
Package Contents
Power adapter (12V, 1A); Quick Installation Guide; TEG-S762
