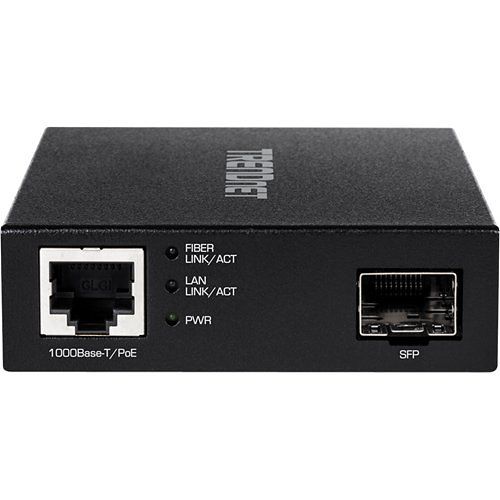

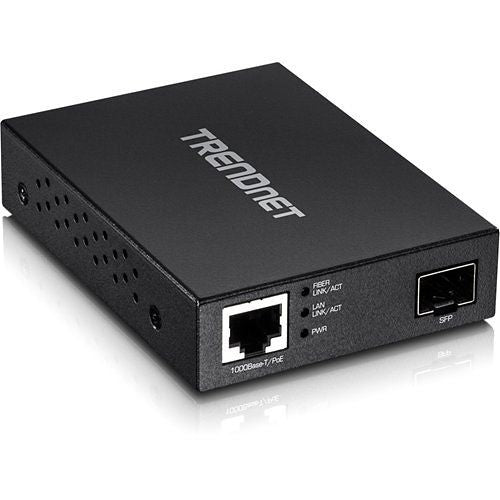

TRENDnet TFC-PGSFP Gigabit PoE PD SFP Fiber Media Converter
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
- 1 x 100/1000BASE-SX/LX SFP slot
- Supports Link Fault Pass-Through (LFPT)
- Jumbo Frame (9KB) Support
Frequently bought together
Product details
TRENDnet's Gigabit PoE PD SFP Fiber Media Converter, model TFC-PGSFP, converts 100/1000BASE-T copper Ethernet to 1000BASE-SX/LX Fiber SFP media and vice versa. The TFC-PGSFP is conveniently powered via PoE switch or injector, no power adapter is required. It features one gigabit PoE input port for power and data, plus one SFP slot that supports both multimode (SX) or single-mode (LX) SFP modules. The SFP slot accommodates both Fast Ethernet and Gigabit SFP modules providing further installation flexibility.
Dual Speed SFP Slot
Dual-speed SFP slot supports both 100Mbps and 1000Mbps SFP modules for multimode or single-mode fiber applications.
PoE Powered
No power adapter required-this fiber SFP converter is powered via an 802.3af/at PoE switch or injector at distances up to 100m (328 ft.).
Compact
Small and compact metal housing design provides greater installation flexibility.
Ports
1 x 100/1000BASE-T RJ-45 PoE input port, 1 x 100/1000BASE-SX/LX SFP slot
PoE Powered
No power adapter required-this fiber SFP converter is powered via an 802.3af/at PoE switch or injector at distances up to 100m (328 ft.)
Dual Speed SFP Slot
Dual-speed SFP slot supports both 100Mbps and 1000Mbps SFP modules
Jumbo Frame
Sends larger packets, or jumbo frames (up to 9KB), for increased performance
- 1 x 100/1000BASE-SX/LX SFP slot
- Supports Link Fault Pass-Through (LFPT)
- Jumbo Frame (9KB) Support
Specifications
| Depth | 254.0mm |
|---|---|
| Environmental Certification | CE |
| Environmentally Friendly | Yes |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Height | 101.6mm |
| Limited Warranty | 3-Year |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Mount Type | Wall Mount |
| NDAA Compliant | Yes |
| Network (RJ-45) | Yes |
| Network Technology | 1000Base-SX; 1000Base-T |
| Number of Network (RJ-45) Ports | 1 |
| Number of PoE (RJ-45) Ports | 1 |
| Number of Ports | 1 |
| Number of SFP Slots | 1 |
| Package Contents |
|
| Packaged Quantity | 1 |
| Power Consumption | 2W |
| Power Source | PoE (Power over Ethernet) |
| Product Series | TFC |
| Product Type | Transceiver/Media Converter |
| TAA Compliant | Yes |
| Width | 254.0mm |
| Country of Origin | TW |
| Expansion Slot Type | SFP |
| Manufacturer | TRENDnet |
| Number of Total Expansion Slots | 1 |
| RoHS Compliant | Restricted Substances Not Used |
| WEEE Compliant | Not Applicable |
Downloads
Datasheet
TRENDnet TFC-PGSFP Gigabit PoE PD SFP Fiber Media Converter Need the datasheet? Our team will email it to you. Request datasheet
