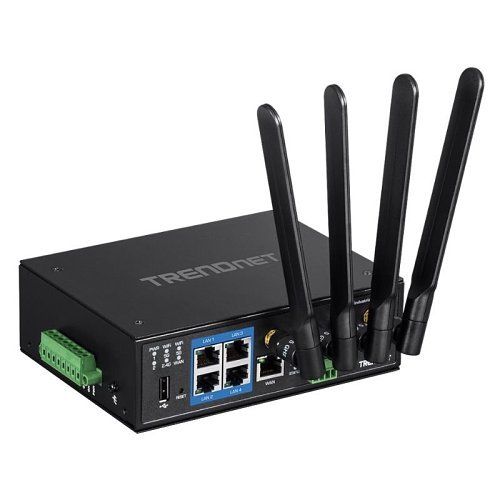

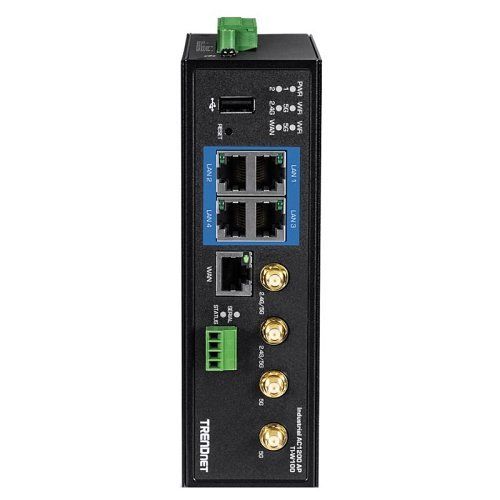

TRENDnet TI-W100 Industrial AC1200 Wireless Dual Band, 4Gb Port Router
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
- Industrial AC1200 Dual-Band Wireless
- Hardened IP30 rated metal housing
- Up to 8 SSIDs per band
- SSID to VLAN mapping
- Wireless WAN support (WAN load balancing/failover between wired Ethernet WAN and Wireless WAN)
- 802.1Q/Port-based VLAN support
Frequently bought together










Product details
TRENDnet's Industrial AC1200 Wireless Dual Band Gigabit Router, model TI-W100, features dual-band AC1200 WiFi to maximize device networking speeds; it is equipped with an 867 Mbps Wireless AC network, and a 300 Mbps Wireless N network. The industrial WiFi router supports dual-WAN hybrid connections (Ethernet and WiFi) for load balancing or fail-over modes, and encrypted Virtual Private Network (VPN) access for remote users. This industrial grade router is equipped with an IP30 rated metal housing, and designed to operate within a wide temperature range of -30° to 70° C (-22° to 158° F) for rugged industrial environments. Advanced traffic management controls, troubleshooting, and SNMP monitoring support make this industrial WiFi router a powerful solution for SMB networks. The industrial wireless router features advanced management, QoS, VLAN, VPN, and other capabilities to ensure optimal performance, scalability, and protection of your network. Intelligently manage your offices' web access with our advanced contenting filtering tool, increase employee productivity, and finally take control of your internet.
- Industrial AC1200 Dual-Band Wireless
- Hardened IP30 rated metal housing
- Up to 8 SSIDs per band
- SSID to VLAN mapping
- Wireless WAN support (WAN load balancing/failover between wired Ethernet WAN and Wireless WAN)
- 802.1Q/Port-based VLAN support
- Inter-VLAN routing

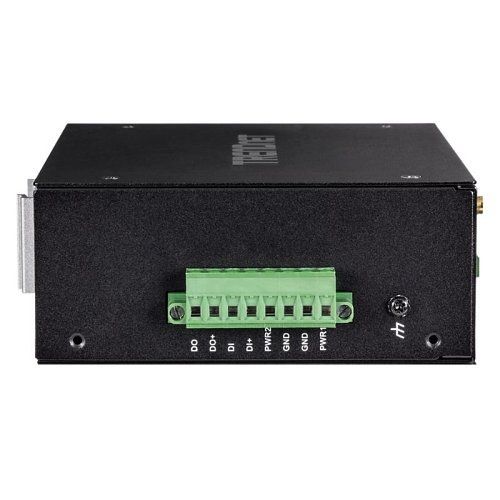

- Redundant power inputs with overload current protection
- Modbus serial port and virtual COM support
- Optional Magnetic WiFi Antenna base, model TEW-LB101 (sold separately)
Specifications
| Depth | 120.00mm |
|---|---|
| Environmentally Friendly | Yes |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |

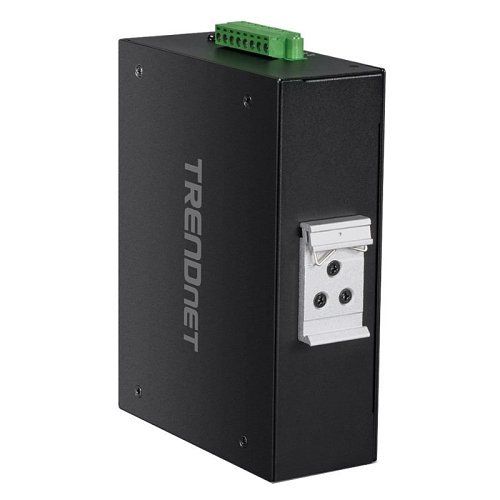

| Form Factor | DIN Rail Mount |
| Height | 51.00mm |
| Limited Warranty | 3-Year |
| Mount Type | DIN Rail Mount |
| NDAA Compliant | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Number of USB Ports | 1 |
| Package Contents |
|
| Packaged Quantity | 1 |
| PoE (RJ-45) Port | Yes |
| Product Type | Wireless Router |
| TAA Compliant | Yes |
| Width | 160.00mm |
| Wireless LAN Standard | 802.11ac |
| Wireless Transmission Speed | 1200.00Mbps |
| Number of Antennas | 4 |
| Broadband Transmission Technology | Ethernet |
| Encryption Standard | 3DES; AES (128-bit); AES (192-bit); AES (256-bit); Blowfish; DES; MD4; MD5; RSA; SHA-1; SHA-256; SHA-512; WPA2-PSK; WPA-PSK |
| Firewall Type | Stateful Inspection |
| ISM Band | Yes |
| ISM Maximum Frequency | 2.4GHz |
| Manufacturer | TRENDnet |
| Network Band | 2.4GHz; 5GHz |
| Number of Broadband (RJ-45) Ports | 1 |
| RoHS Compliant | Compliant |
| UNII Band | Yes |
| UNII Maximum Frequency | 5GHz |
| WEEE Compliant | Compliant |
