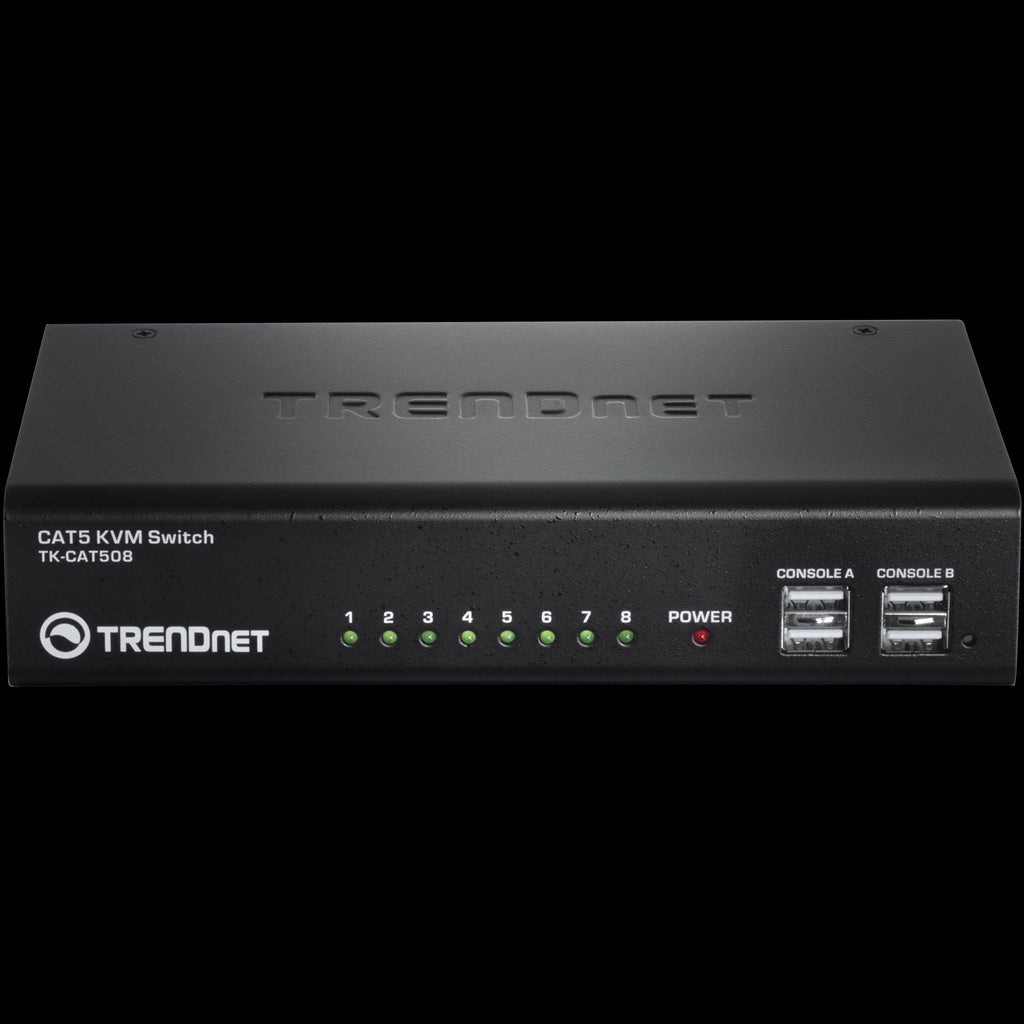

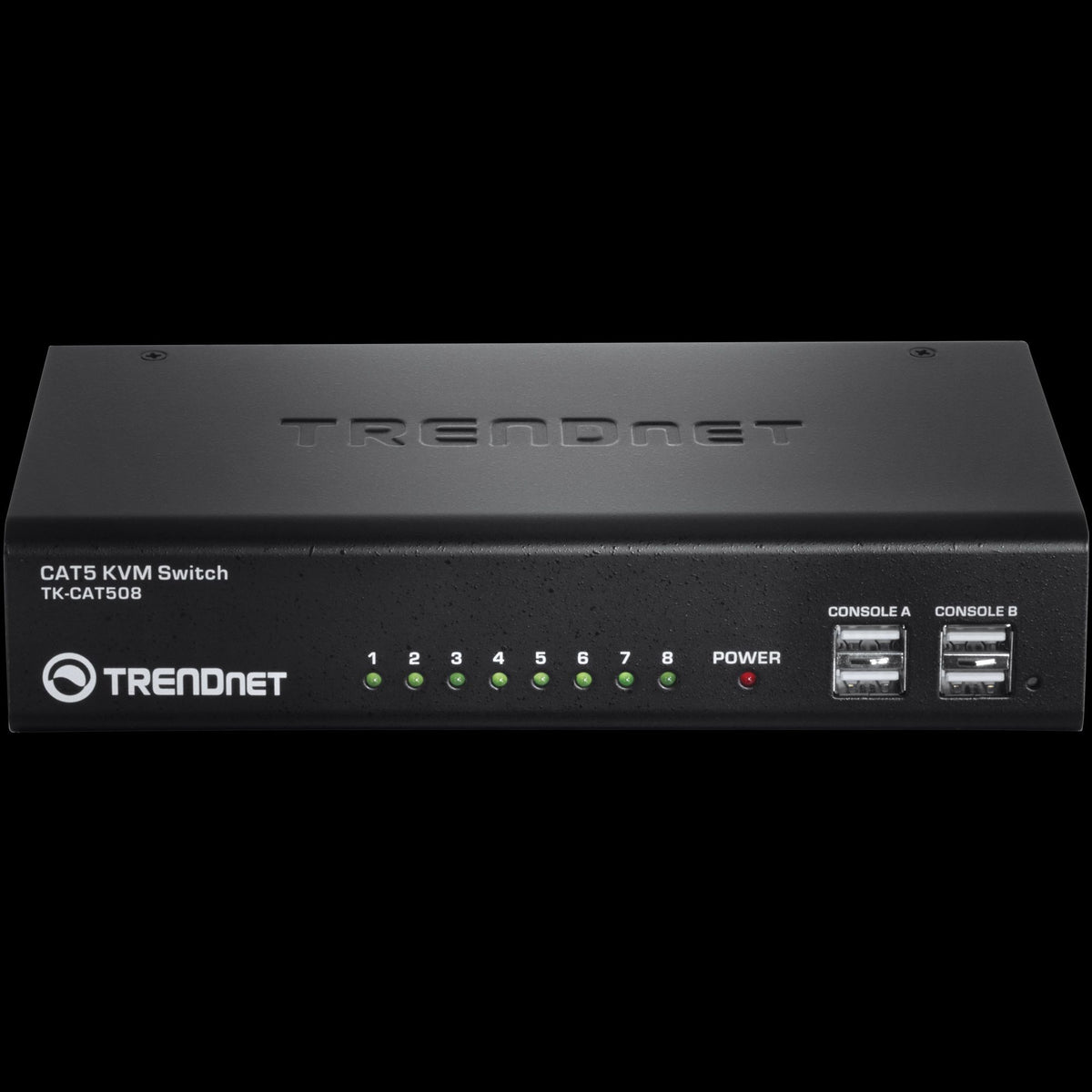

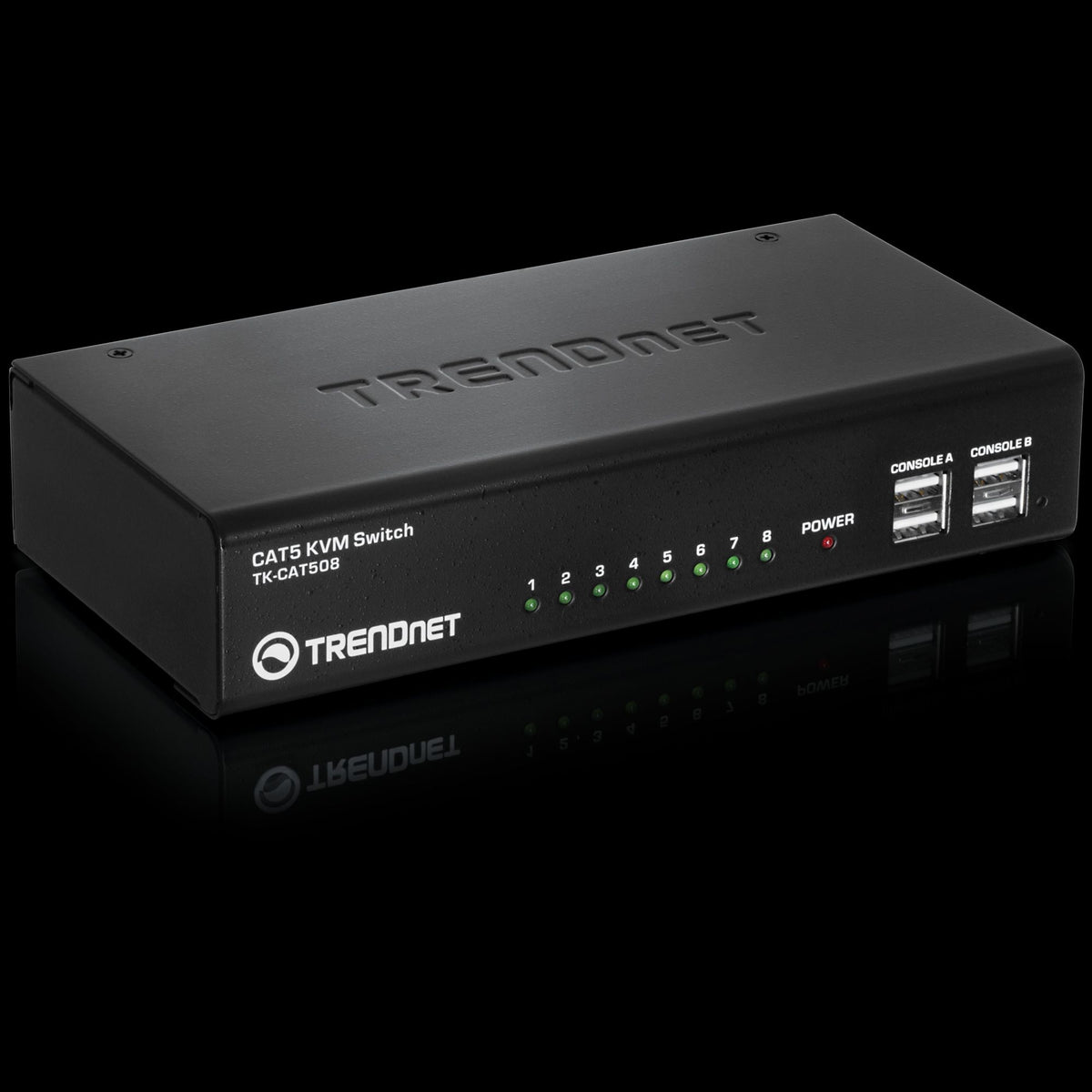

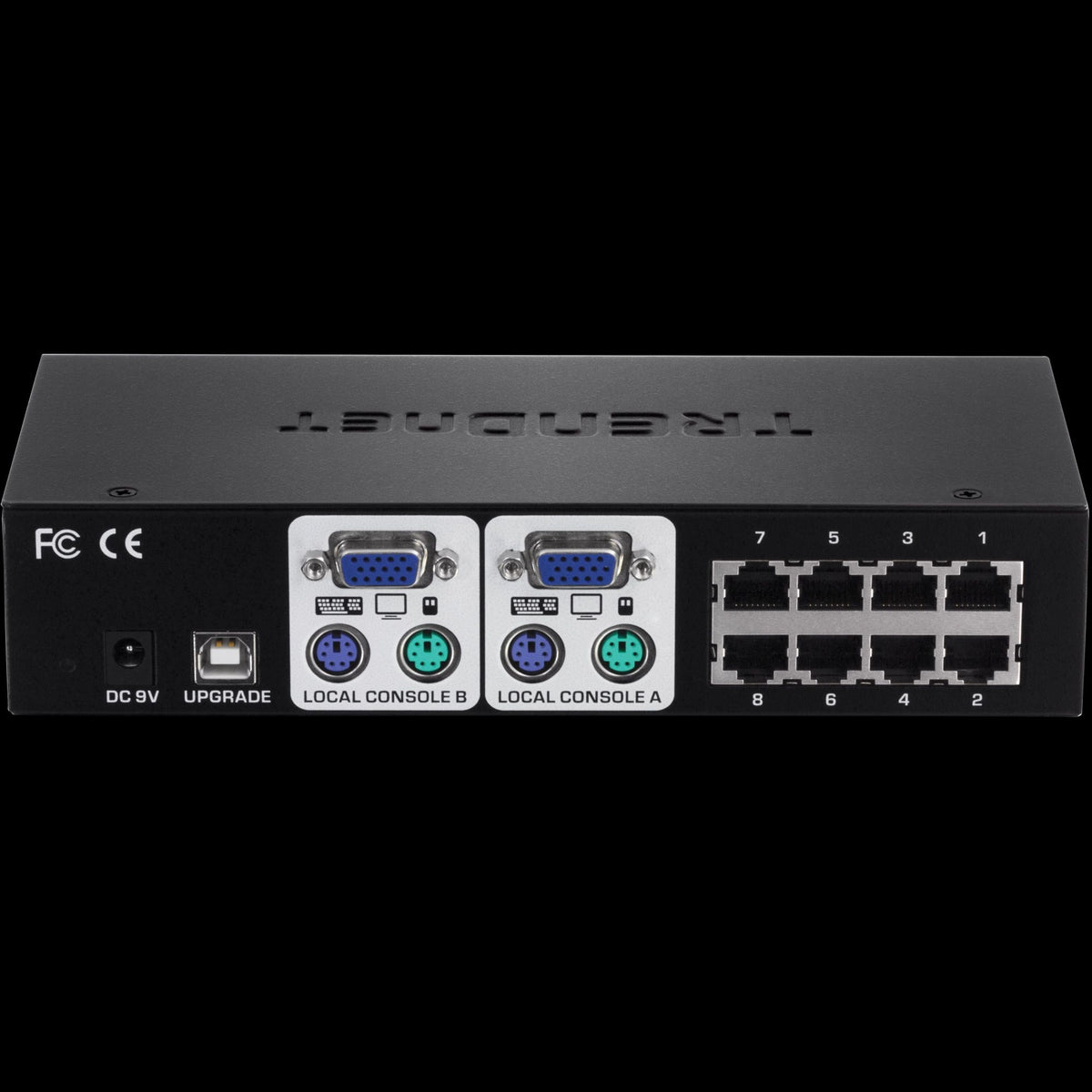

8-Port CAT5 KVM Switch with Dual Console support and OSD management.
Main Features
Manage up to 8 servers over distances of up to 30m
Dual console support for 2-consoles concurrently
Supports resolutions up to 1600 x 1200 pixels
On Screen Display (OSD) interface
USB and PS/2 console support
Rugged metal enclosure
Programmable Hot Key commands
8x Fast Ethernet ports for server connection
Firmware upgradable
Specifications
Application/Usage
Centralized control of SMB server environments
Compatibility
PS/2; TK-CAT5P; TK-CAT5U; USB
Depth
104.0mm
Device Supported
Server
Display Resolution
1600 x 1200
Features
8 x Fast Ethernet ports for server connection; Dual Console support for two consoles concurrently; Firmware upgradable; Manage up to 8 servers over distances of up to 30 meters; NDAA compliant; On Screen Display (OSD) interface; Programmable Hot Key commands; Rugged metal enclosure; Supports resolutions up to 1600 x 1200 pixels; USB and PS/2 console support
Height
44.0mm
Input Voltage
100-240V AC
Limited Warranty
2-Year
Material
Metal
Maximum Operating Distance
30m
Maximum Video Resolution
1600 x 1200
NDAA Compliant
Yes
Number of Network (RJ-45) Ports
8
Number of Users
2
Package Contents

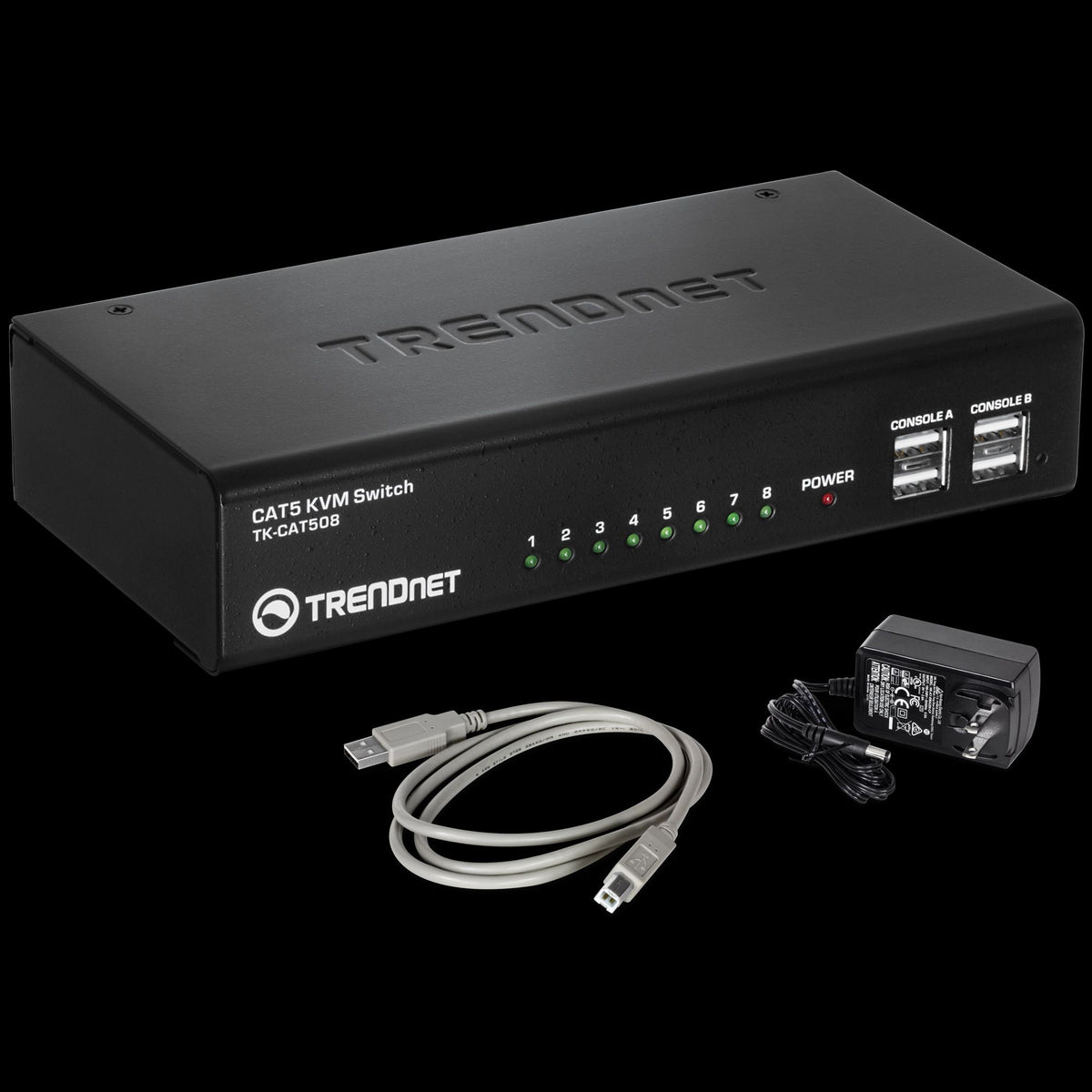

Power Adapter (9V 1A); Quick Installation Guide; TK-CAT508; USB cable (1.2 m/4 ft.)
Product Series
Version V1
Product Type
KVM Switch
Weight
748.00g
Width
205.0mm
Number of Computers Supported
8
Additional Information
Dual Console support; On-Screen Display menu controls with password protection; Requires use of TK-CAT5U or TK-CAT5P units
CE Marking
Yes
Certifications & Standards
CE; FCC
Dimensions
205mm x 104mm x 44mm
Keyboard
Yes
Number of VGA Ports
1
Pointing Device Type
Mouse
RoHS Compliant
Compliant
VGA
Yes
WEEE Compliant
Out of Scope
