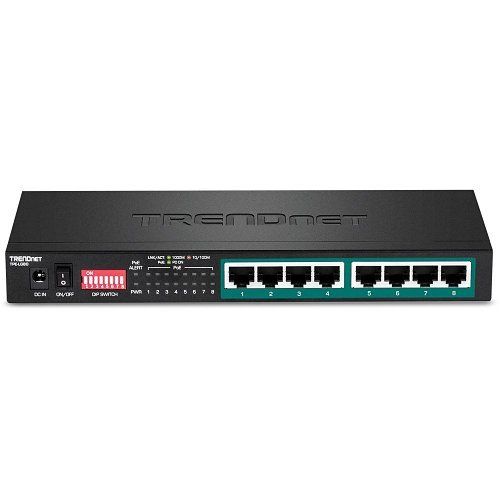

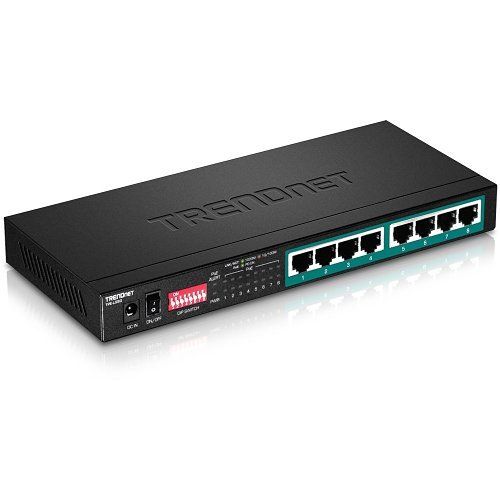

The 8-Port Gigabit Long Range PoE+ Switch, model TPE-LG80, delivers data and power over Ethernet cables to PoE devices such as access points, VoIP phones, and IP cameras. It supports both PoE and PoE+ devices with a 65W PoE power budget. Enable the DIP switch to extend the PoE+ signal up to 200m (656') at 10Mbp for long distance PoE installations. Plug and play this sturdy metal switch for reliable high-speed PoE networking. Its fanless design is perfect for quiet environments that require silent operation.
Main Features
Easy installation
8 x Gigabit PoE+ ports
Enable the DIP switch to extend PoE+ signal up to 200m at 10Mbps
DIP switch supports VLAN port isolation and QoS
16Gbps Switching capacity
65W PoE budget

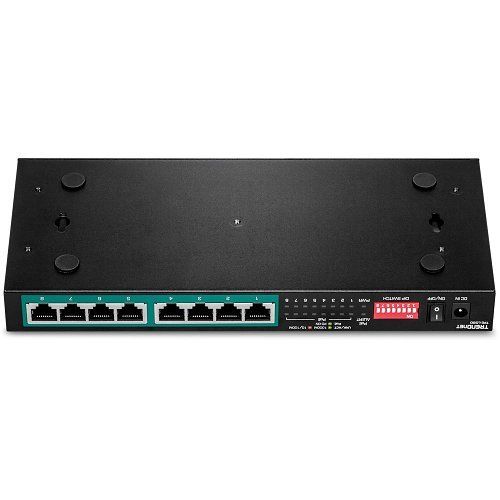

Wall mountable design
Sturdy metal switch
Use with TRENDnet's PoE splitter to network and power non-PoE devices
Specifications
Depth
457.20mm
Environmentally Friendly
Yes
Ethernet Technology
1 Gbps (Gigabit Ethernet)
Frequency
50Hz
Height
76.20mm
Input Voltage
100-240V AC
Length
240.00mm
Limited Warranty
3-Year
Material
Metal
Media Type Supported
Twisted Pair
Mount Type
Wall Mount
NDAA Compliant
Yes
Network Switch Type
Unmanaged
Network Technology
1000Base-T; 100Base-TX; 10Base-T

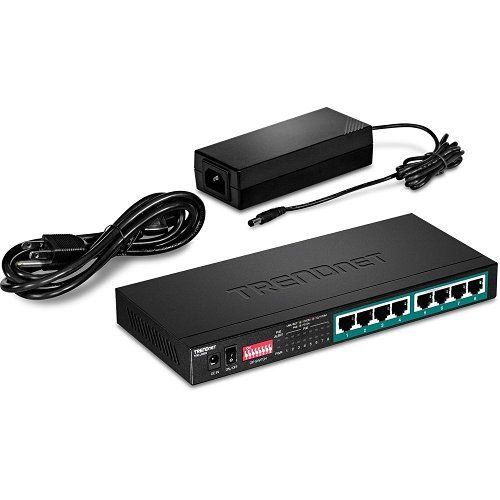

Package Contents
Power brick (55V DC, 1.3A); Power Cord (1.8m/6 ft.); Quick Installation Guide; TPE-LG80
