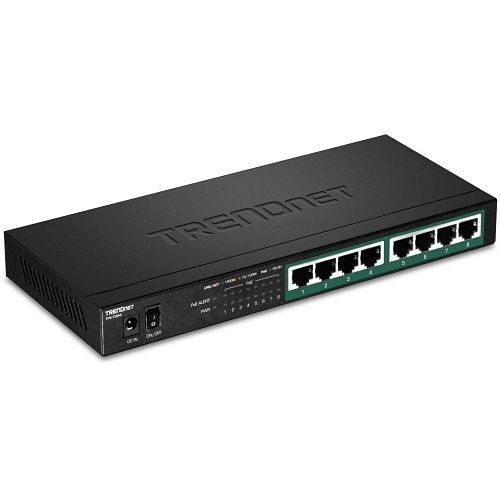

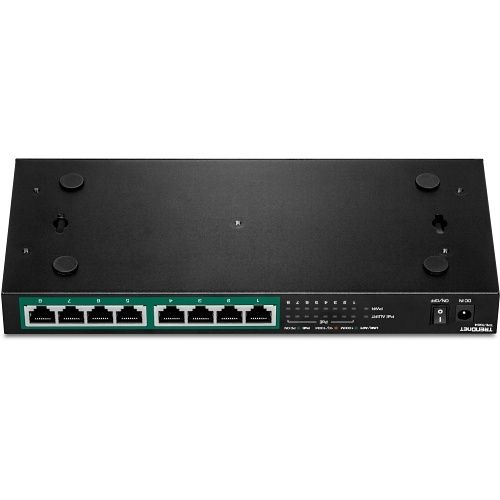

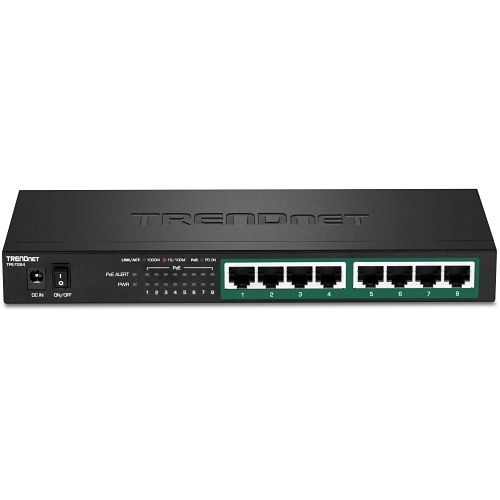

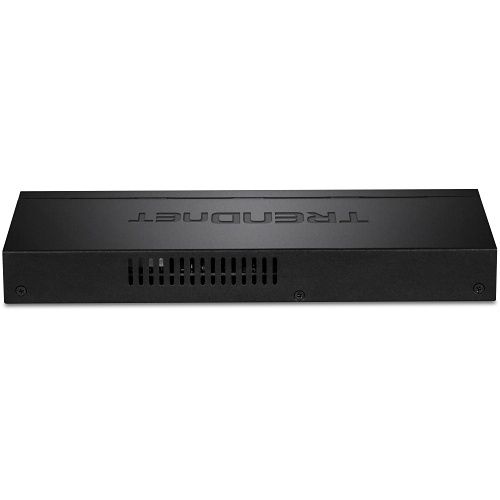

TRENDnet TPE-TG84 8-Port Gigabit PoE+ Switch, 120W, (Replaces TPE-TG84)
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 11 | 2 to 3 working days |
- DEVICE INTERFACE: 8 x Gigabit PoE+ ports; LED indicators
- POE+ POWER BUDGET & SWITCH CAPACITY: 120 W PoE power budget supports up to eight power over Ethernet devices and the 8-port gigabit PoE+ network switch provides 16Gbps switching capacity to support edge network installations
- COMPACT FANLESS DESIGN: With a compact and lightweight rugged metal housing design, this desktop switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit: 2000 Mbps (full duplex)
- OPERATING TEMPERATURE: This 8-port gigabit PoE+ network switch is rated with an operating temperature range of 0° - 40° C (32° - 104° F)
- IEEE and DSCP: IEEE 802.1p QoS and DSCP pass-through support
Frequently bought together
Product details
- DEVICE INTERFACE: 8 x Gigabit PoE+ ports; LED indicators
- POE+ POWER BUDGET & SWITCH CAPACITY: 120 W PoE power budget supports up to eight power over Ethernet devices and the 8-port gigabit PoE+ network switch provides 16Gbps switching capacity to support edge network installations
- COMPACT FANLESS DESIGN: With a compact and lightweight rugged metal housing design, this desktop switch is well-suited for desktop installations. Its fanless design is ideal for quiet environments that require silent operation
- DATA TRANSFER RATE: Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex), Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex), Gigabit: 2000 Mbps (full duplex)
- OPERATING TEMPERATURE: This 8-port gigabit PoE+ network switch is rated with an operating temperature range of 0° - 40° C (32° - 104° F)
- IEEE and DSCP: IEEE 802.1p QoS and DSCP pass-through support
TRENDnet's 8-Port Gigabit PoE+ Switch, model TPE-TG84, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch provides eight gigabit PoE+ ports with a total PoE power budget of 120W. The TPE-TG84 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.
PoE+
A 120W PoE power budget supports up to eight Power over Ethernet devices.
Gigabit Ports
Eight gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.
Compact Design
Compact, lightweight, and fanless, this switch is designed for desktops and quiet environments.
FEATURES | PoE+
Supplies up to 30 watts of PoE power per port with a 120W power budget
Gigabit Ports
8 x Gigabit PoE+ Ethernet ports
Compact Design
With a compact and lightweight metal housing design, this switch is wellsuited for desktop installations
Switching Capacity
16Gbps switching capacity
Jumbo Frame
Sends Jumbo Frames (up to 9KB) for increased performance
Fanless
Fanless design is ideal for quiet environments that require silent operation
LED Indicators
LED indicators convey port status
- Effectively increases available bandwidth on your network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 8 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
| Depth | 105.00mm |
|---|---|
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Features | 11.9 Mpps Forwarding Rate; 120W Power Budget; 16 Gb/s Switching Capacity; 8 x Gigabit Ethernet PoE+ Ports |
| Frequency | 50Hz |
| Height | 27.00mm |
| Input Voltage | 240V AC |
| Limited Warranty | 3-Year |
| Material | Metal |
| Media Type Supported | Twisted Pair |
| Mount Type | Wall Mount |
| NDAA Compliant | Yes |
| Network (RJ-45) | Yes |
| Network Technology | 1000Base-T; 100Base-TX; 10Base-T |
| Package Contents |
|
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120W |
| Power Consumption | 126.0000W |
| Power Source | AC Power |
| Product Line | TRENDnet TPE |
| Product Type | Ethernet Switch |
| TAA Compliant | Yes |
| Total Number of Network Ports | 8 |
| Width | 240.00mm |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer | TRENDnet |
| Networking Standards | IEEE 802.1p; IEEE 802.3; IEEE 802.3ab; IEEE 802.3af; IEEE 802.3at; IEEE 802.3u; IEEE 802.3x |
| Power over Ethernet (PoE) | Yes |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
