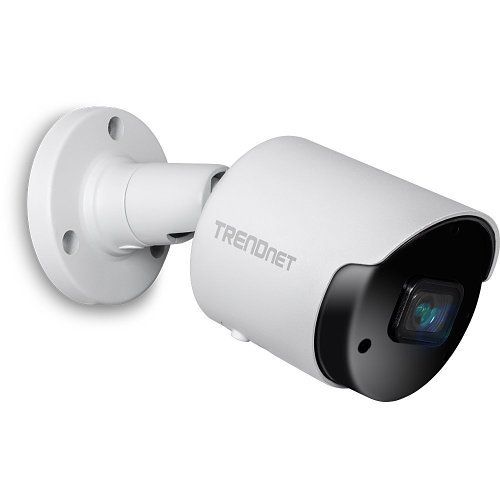

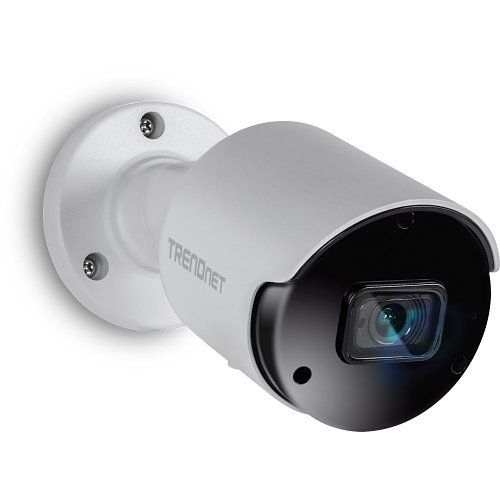

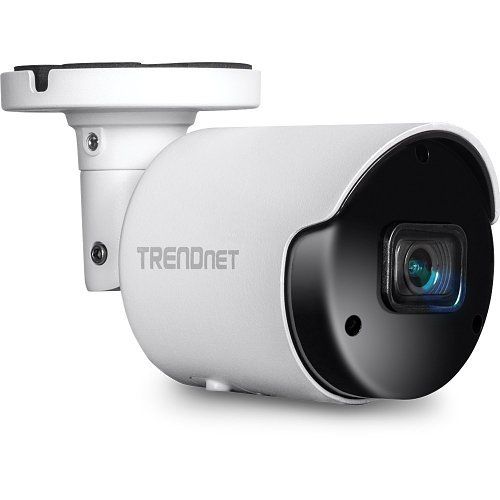

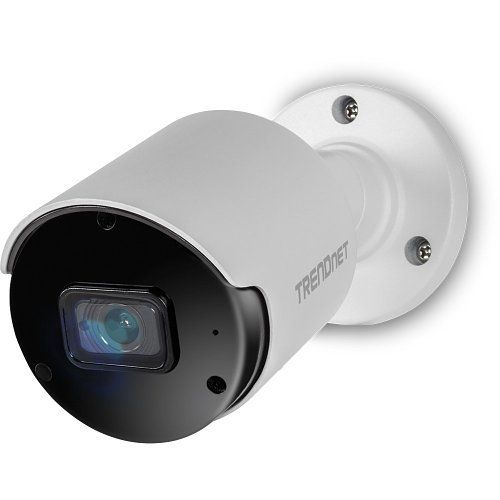

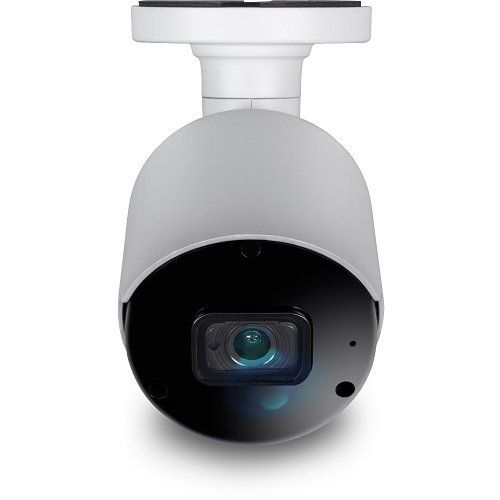

TRENDnet's Indoor/Outdoor 5MP H.265 PoE IR Bullet IP Camera, model TV-IP1514PI, provides day and night surveillance with a night vision range of up to 30m. This bullet network camera delivers year-round surveillance with an IP66 weather-rated housing to withstand outdoor environments. Record up to 5MP HD video at 20 fps in a space-saving H.265 compression format. Easily view live video from the 5MP PoE camera on your mobile device using our free Sentinel mobile app, or on your PC with our free View Manager desktop camera video management software.
Main Features
Easy Cloud P2P QR code installation
5MP HD Video (2592 x 1920) at 20 fps
Night vision IR LEDs for night vision up to 30m (98')
Built-in microphone for one-way audio
Outdoor IP66 weather rating
Wide Dynamic Range image balancing
Save installation costs with Power over Ethernet (PoE)
Programmable motion detection recording and email alerts
Micro SD card slot (up to 256GB)
Free Sentinel iOS and Android mobile apps
Specifications
Camera Type
Bullet Camera
Connectivity Technology
Wired
Durability
Dustproof; Waterproof
Effective Camera Resolution
2MP
Features
Alarm Triggering; Automatic White Balance; Back Light Compensation (BLC); Cross Line Detection; Day/Night; Digital Noise Reduction; Gain Control; Motion Detection; Privacy Masking; Wide Dynamic Range
Field of View
Diagonal; Horizontal; Vertical
Focal Length
3.6mm
Form Factor
Dome
Image Sensor Type
CMOS
Indoor/Outdoor
Outdoor
Ingress Protection Rating
IP66
Input Voltage
100V AC; 240V AC
Lens Type
Fixed
Limited Warranty
3-Year
Maximum Aperture
F/2
Maximum Focal Length
3.6mm
Maximum Resolution
1280 x 720
Maximum Video Resolution
1920 x 1080
Network (RJ-45)
Yes
Night Vision
Yes
Night Vision Type
NIR Active Illumination
Package Contents
TV-IP1514PI Network Camera
Weather seal
Quick installation guide
Camera mounting hardware
Power Source
PoE (Power over Ethernet)
Product Type
Network Camera
Recording Formats
H.264; H.265 (HEVC)
Storage Type
SD Card
TAA Compliant
Yes
Video Resolution
1280 x 720
Weight
295.00g
Maximum Operating Temperature
55°C
Colour
White
Lens Included
Yes
Longest Shutter Speed
1/5 Second
Manufacturer
TRENDnet
Maximum Frame Rate
30fps
Minimum Focal Length
3.6mm
Minimum Operating Temperature
-30°C
Night Vision Distance
15.00m
Operating Humidity
95%
Power over Ethernet (PoE)
Yes
Remote Management
Yes
RoHS Compliant
Compliant
Shortest Shutter Speed
1/12000 Second
Video Formats
H.264 / AVC; H.264 Baseline Profile; H.264 High Profile; H.264 Main Profile; H.265 / HEVC; H.265 Baseline Profile; H.265 High Profile; H.265 Main Profile; MJPEG
