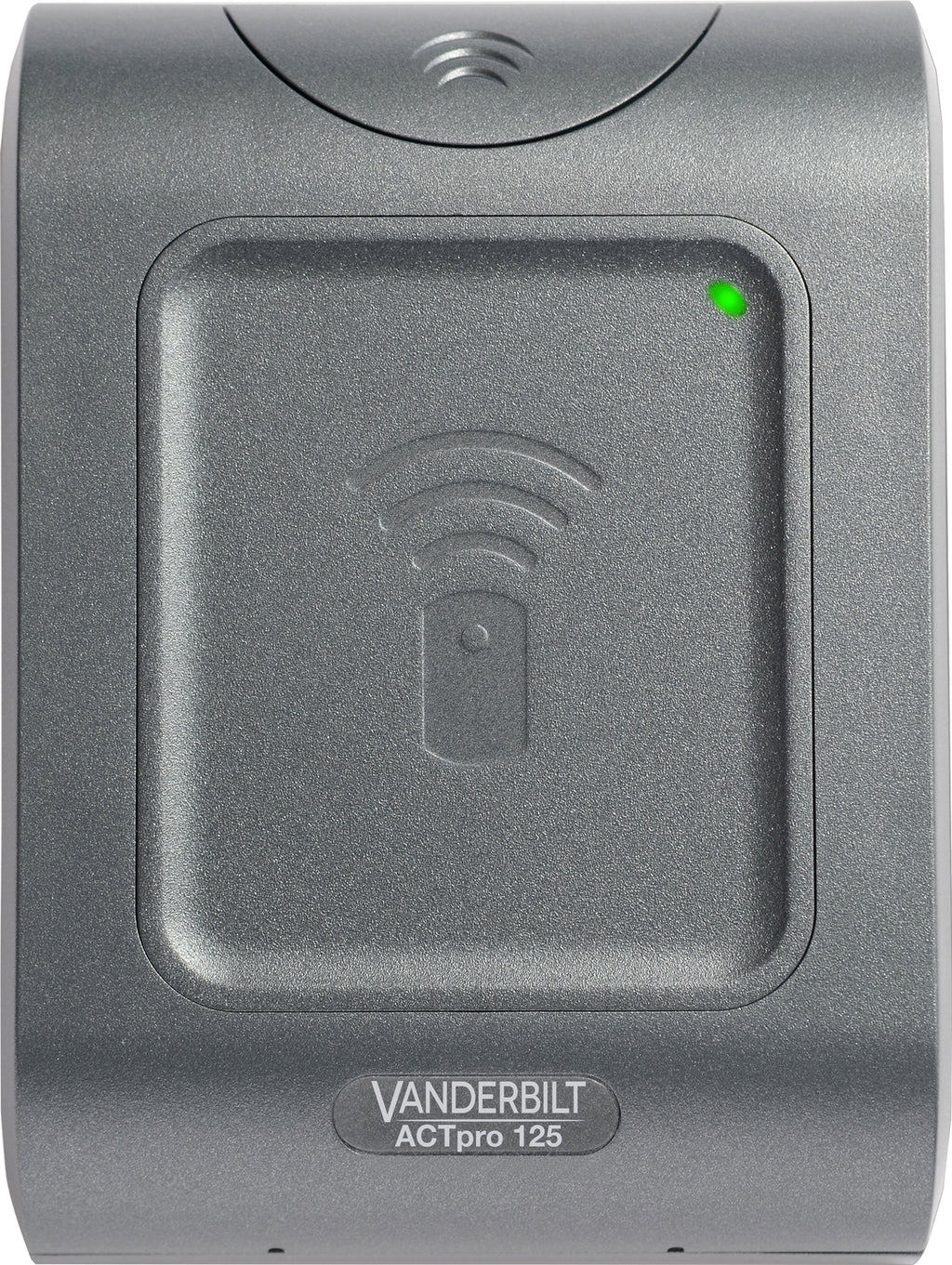

The Vanderbilt EM1040e (V54504-F142-A100) is a 125 kHz proximity reader for ACTpro access control systems. It is a multiformat reader that supports all ACT 125 kHz RFID cards and fobs, including existing HID-compatible tokens.
Key features
- Reads all ACT 125 kHz cards and fobs, plus HID-compatible tokens
- IP65 housing for indoor or outdoor installation
- IK10 impact rating
- Surface or flush mounting
- Connector block terminations
Technical specifications
- Part code: V54504-F142-A100
- Frequency: 125 kHz
- Operating voltage: 5 to 12 V DC
- Current consumption: 40 mA
- Operating temperature: -40 to +70°C
- Dimensions: 94 x 130 x 25 mm
- Weight: 0.13 kg
- Protection: IP65, IK10
