- Extends Ethernet up to 3500'
- Compatible with legacy UTP cables
- Full-speed, long-range point-to-point Ethernet connection over regular Cat 5e or Cat 6 cable
- Fully automatic, simple to install, and maintenance-free
- 12 VDC power supply available separately
Frequently bought together
Product details

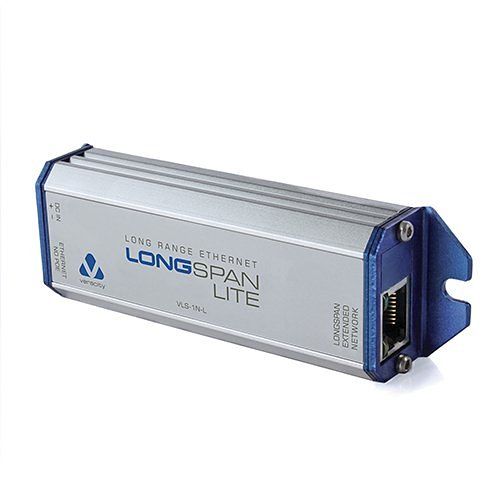

The non-PoE LONGSPAN LITE from Veracity provides high bandwidth over extended ranges up to 3500', enabling a dependable connection to IP cameras and other remote network devices. This smart point-to-point solution requires no mid-cable equipment and, with its automatic self-configuration, installation is simple and easy. The LONGSPAN LITE also supports single-pair UTP cables, providing a fast upgrade solution for legacy analog systems. The LONGSPAN LITE is designed to allow you to run IP cameras up to 2700' using 100Base-T speeds and up to 3500' using 10/100Base-T speeds. This converter supports 1- and 2-pair cables with extended range, allowing analog cameras in UTP installations to be upgraded to IP with no need to replace cabling. The LONGSPAN LITE automatically adapts to the number of pairs available and delivers the same unrestricted 10 or 100Mbps full-duplex network connection. It self-configures for optimum performance every time it is connected and eliminates the need for user setup, DIP switch settings, and system pairings.
- Extends Ethernet up to 3500'
- Compatible with legacy UTP cables
- Full-speed, long-range point-to-point Ethernet connection over regular Cat 5e or Cat 6 cable
- Fully automatic, simple to install, and maintenance-free
- 12 VDC power supply available separately
Specifications
| Environmental Certification | RoHS |
|---|---|
| Environmentally Friendly | Yes |
| Height | 23.0mm |
| Input Voltage | 12V DC |
| Length | 120.0mm |
| Limited Warranty | 5-Year |
| Maximum Data Transfer Rate | 12Mbps |
| NDAA Compliant | Yes |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Packaged Quantity | 1 |
| Product Line | LONGSPAN |
| Product Series | LONGSPAN |
| Product Type | PoE Extender |
| TAA Compliant | Yes |
| Width | 36.0mm |
| Additional Information |
|
| Colour | Silver |
| Manufacturer | Veracity USA, Inc |
| Operating Temperature (T-T) | -40-70°C |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Veracity VLS-1N-L LONGSPAN Long Range Ethernet Product datasheet · VLS-1N-L · PDF Open datasheet
