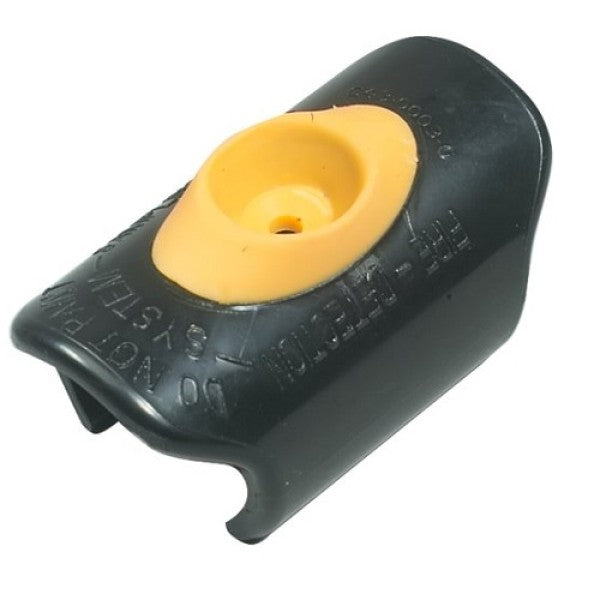

The Xtralis F-PC-3.5 is a standard VESDA ASD Sampling Hole Clip with a 3.5 mm (9/64") sampling hole, supplied in a pack of 5. It clicks over a 10 mm hole drilled in 25–27 mm aspirating sampling pipe to give an accurate, colour-coded sampling hole on aspirating smoke detection pipe networks.
Key features
- Pre-engineered sampling hole for faster, more consistent installation and commissioning
- Colour coding (to the IEC 60062 resistor colour code) shows hole size at a glance, even at height in warehouses and large open spaces
- One 10 mm drill bit for every sampling hole; fit the clip to set the hole size
- Chamfered hole entry helps reduce dust loading at the sampling hole
- Supplied ready to fit: no assembly or tools, clicks firmly into place and does not slip
- Anti-pressure-shock design suited to automatic purge systems
Technical specifications
- Part number: F-PC-3.5
- Hole size: 3.5 mm (9/64")
- Hole colour: orange
- Tab colour: orange
- Length: 55 mm; width: 30.5 mm; weight: 11 g
- Pipe outside diameter: 25–27 mm
- Material: PC/ABS body (RAL 9005), TPE rubber
- Maximum pipe network pressure: 7 bar
- Application temperature: -30 °C to +45 °C; humidity 5% to 95% RH
- Pack quantity: 5
