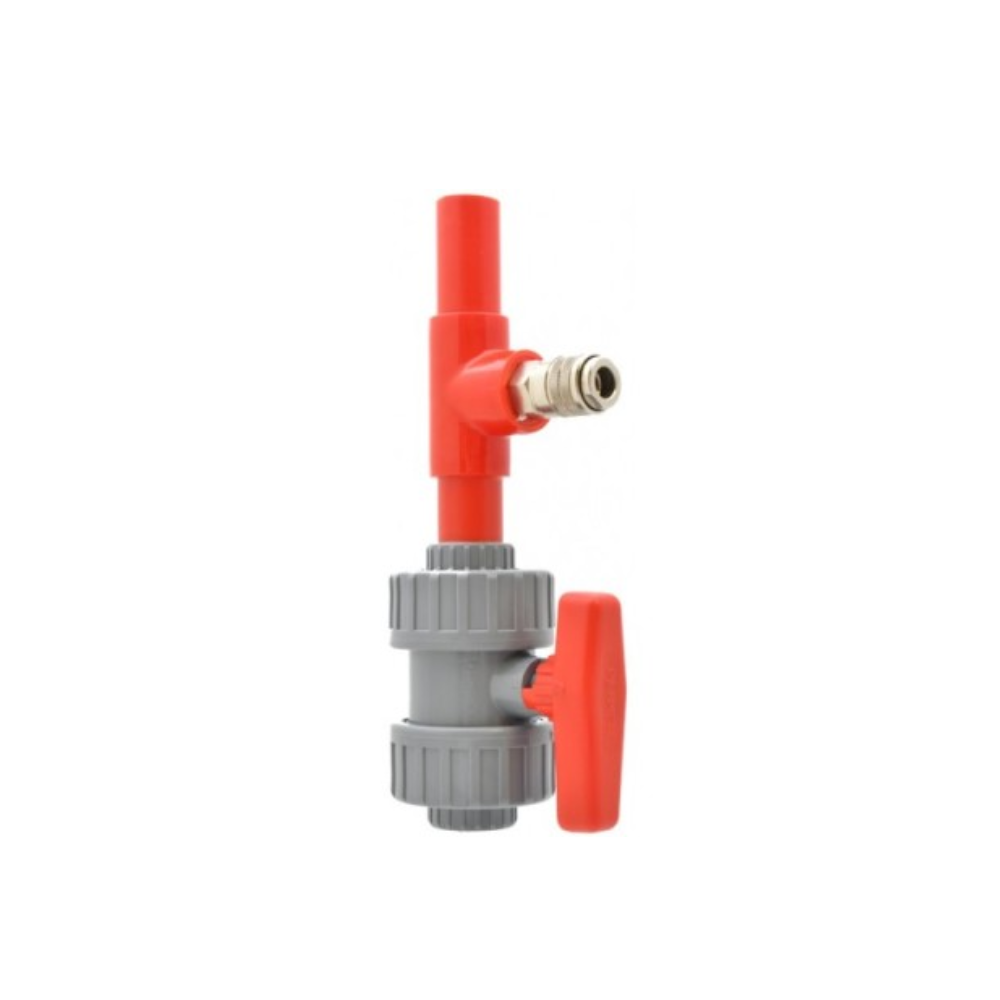

The VESDA PIP-038 is a red ABS 3/4" quick release air line kit. It is part of the Xtralis VESDA pipes and fittings range for aspirating smoke detection (ASD) pipe networks. The range is made from ABS, uses a metric 25 mm outside diameter pipe standard, and is tested and certified to EN 54-20 and EN 61386-1. It is listed in the valves section of the VESDA pipes and fittings range.
Key features
- Quick release air line kit
- Red, to identify fire service pipework
- Fully matched to VESDA ABS pipe for optimal ASD system performance
- Suitable for use with low-pressure ASD systems
Technical specifications
- Part number: PIP-038
- Size: 3/4"
- Material: ABS
- Colour: red (grey version PIP-038-G also available)
- Pipe system: 25 mm OD, 21 mm ID ABS
- Standards: tested and certified to EN 54-20 and EN 61386-1
