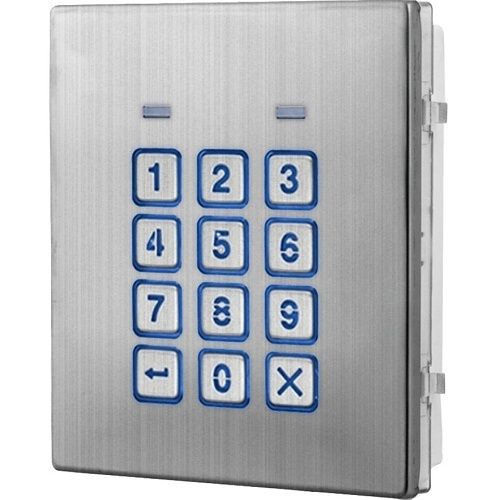

A selection of 4000 series codelock modules with blue backlit buttons which are able to operate as a standalone keypad or can be incorporated as part of an audio or video door entry system.
There are three optional codelocks available: the 4901 codelock module which is completely standalone, the 4902 and 4903 that can both operate as a standalone codelock or be networked via an RS485 bus. In the case of the 4902 it can be networked with other 4902 codelocks only, whereas the 4903 can be networked with the GSMPRO (4810) audio module (as well as other 4903 keypads and 4850R proximity readers).
The 4901 codelock has 3 relays and allows for 3 codes (1 code per relay) while the 4902 codelock has 2 relays and allows for up to 1000 codes that can be assigned to one or both of the relays. The 4903 has 2 relays and allows for 2 codes (1 code per relay) when in standalone mode, however when connected via the RS485 bus to the GSMPRO audio module access codes can be expanded up to 400 permanent codes or 32 temporary codes that can be assigned to one or both of the relays.
The keypads have dry relay contacts (CO, NO and NC) where each output can be programmed from 1-99 seconds (for the 4901 and 4903), 1-255 seconds (for the 4902) or set to 00 for latching. They also feature two switched 0V push to exit inputs to activate relays 1 and 2 respectively. Codes can be between 4-8 digits in length and each keypad module incorporates blue backlit key buttons.
Each codelock is available in a mirror stainless steel finish, a matt 316 grade stainless steel finish (suffix /M) or a gun metal grey finish (suffix /BL).
Features
Blue backlit button codelock modules
Available in mirror stainless steel finish, a matt 316 grade stainless steel finish or gun metal grey finish
Modules are compatible with both surface & flush 4000 series back boxes
Can operate as standalone keypads
4902 and 4903 keypads are also networkable via RS485
User friendly programming menu with audible reassurance tones
4-8 digit programmable access codes
2 programmable relays (4902 and 4903), 3 programmable relays (4901)
Main Features
Blue backlit button codelock modules
Available in mirror stainless steel finish, a matt 316 grade stainless steel finish or gun metal grey finish
Modules are compatible with both surface and flush 4000 series back boxes
Can operate as standalone keypads
4902 and 4903 keypads are also networkable via RS485
User friendly programming menu with audible reassurance tones
4-8 Digit programmable access codes
2-Programmable relays (4902 and 4903), 3-programmable relays (4901)
Specifications
Application/Usage
Door Entry
Compatibility
Incorporated as part of an audio or video door entry system.
Depth
30.00mm
Device Supported
Door Entry Panel; Intercom System
Length
120.00mm
Limited Warranty
2-Year
Product Series
4000
Product Type
Security Keypad
Width
103.00mm
Additional Information
Operational modes: As standalone keypad
Number of codes: 3 (1 code per relay)
Number of relays: 3x CO, NO & NC dry contacts (24Vac/dc @ 3A max)
PTE Inputs: 2x switched 0V inputs for relay 1 & 2 only
