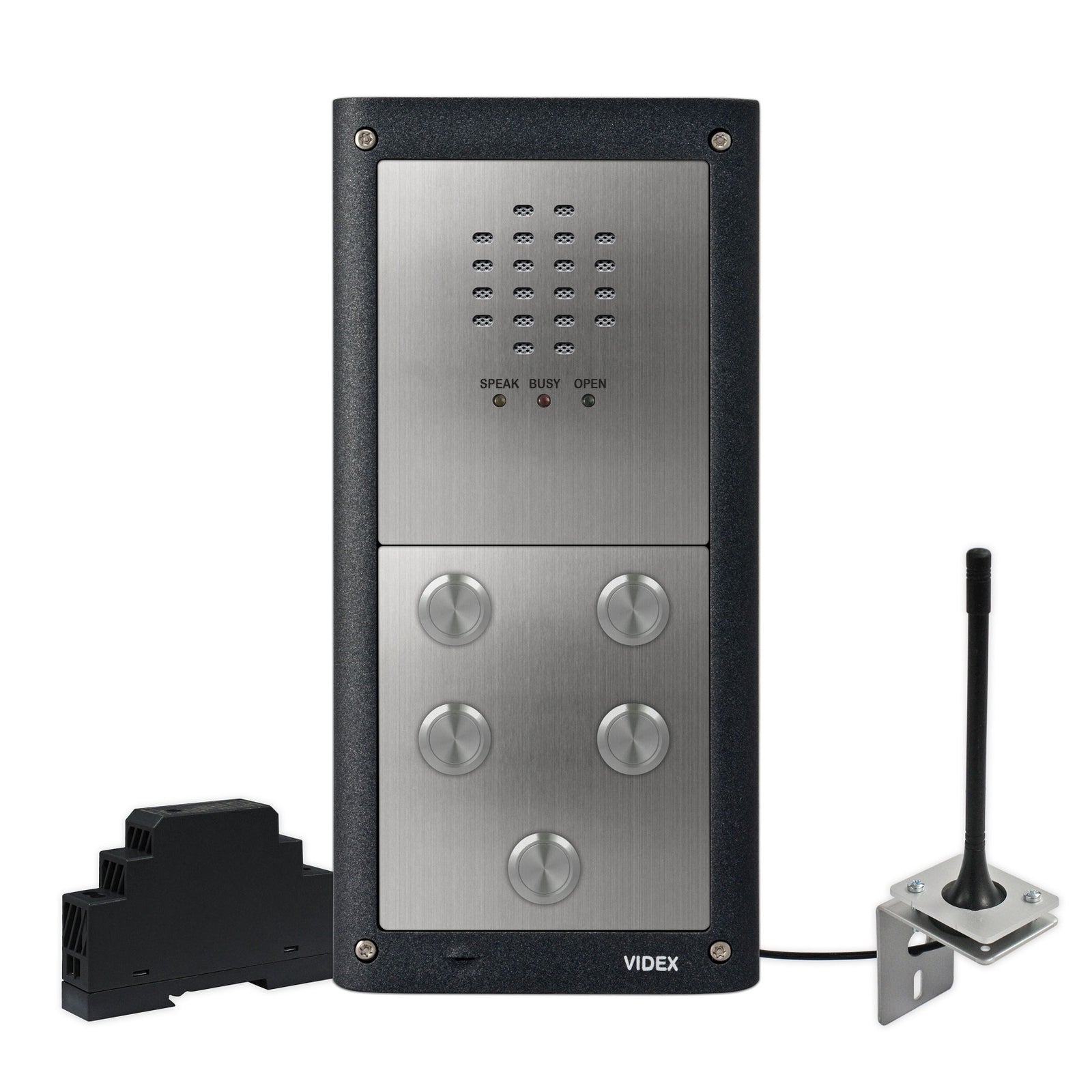

Videx 5 Button VR 4K Surface GSM Audio Kit

Components & features

• Compatible with 2G, 3G and 4G networks
• 1 button up to 12 button kits available (surface or flush)
• Expandable up to 24 call buttons using a combination of additional VR4K series button modules
• 4 telephone numbers per call button (1 primary and 3 diverts)
• 1000 dial to open numbers (which can each be assigned to an access level)
• 32 temporary dial to open numbers (programmable from 1 - 255 hours)
• 1 programmable call button timeband
• Up to 10 programmable access control timebands
• Up to 10 programmable free access timebands
• Up to 10 programmable access levels
• Automatic time correction feature including daylight time saving adjustments
• Programming by
• SMS, via the Videx smartphone
• SMS Wizard
• Apps, the GSMSK PC software or the new "over the air" feature
• Vandal
• Resistant
• 316 grade brushed stainless steel (2.5mm thick)
• DDA compliant call progress LED's Micro
• USB connection (for ease of programming)
• 1 auxiliary input and 1 auxiliary output
• 1 dry contact relay output (C, NO and NC) and 1 exit button input (push to make, switched
• 0V input) Micro
• USB connection (for ease of programming using the GSMSK software)
• Connection for
• Wiegand proximity access control (VR4KPPM)
• Connection for display interface module (VR4KDM)
• Event log for up to 4000 events
