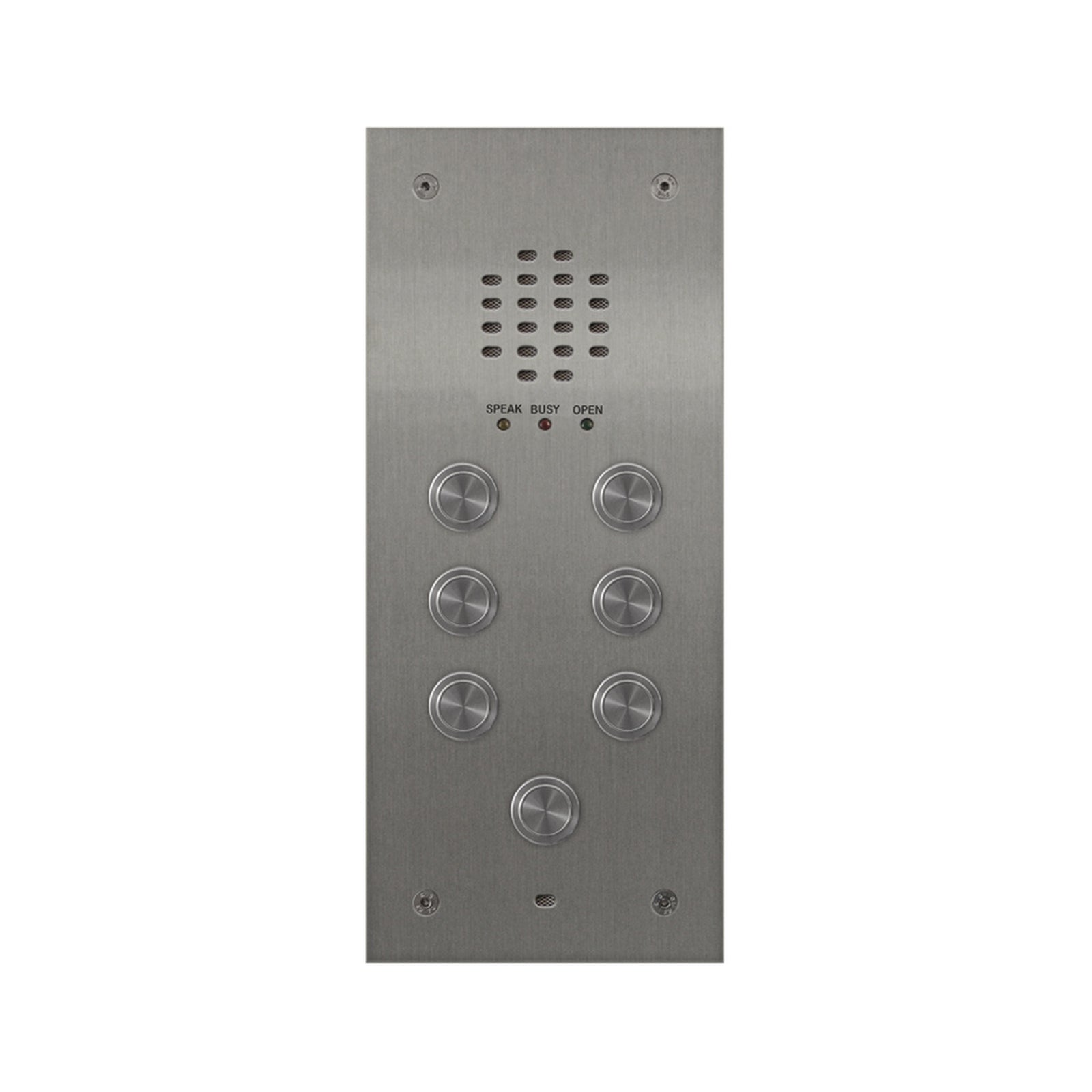

Vandal resistant 7 button flush panel with VX136 amp: 12 Gauge stainless steel flush mount door panel 120mm wide including 136 speaker unit, security fixing screws and standard engraving (2 characters per button). Call progress reassurance tones, busy LED, Speak LED and open LED are also standard. The VR120 door panels (all 120mm wide) have CALL PROGRESS LEDs for “SPEAK”, “DOOR OPEN” and “BUSY,” along with distinct audio reassurance tones to assist the visitor. Buttons are IP68 rated with the option of a yellow bezel offering a high contrast to the fascia for DDA (Disability Discrimination Act) requirements. All face plates are deep engraved with 6mm in-filled black characters to identify each button. Optional colours for specific applications can be specified along with custom logos. The VR120 face plates are attached to their back box with either 4 or 6 anti-vandal fixings, depending on panel size and options. All face plates are fitted with a purpose manufactured neoprene seal to prevent the ingress of dust and liquid. Panels are fitted with either the traditional “4+1” audio amplifier (Art.136) or the VX2200 functional (digital) amplifier (Art.138N) dependent upon system requirements. Audio amplifiers and microphones are protected with a fine offset stainless steel mesh to protect against vandalism. All speakers have Mylar cones to further protect against the effects of moisture. Full control of volume levels to the amplifier and the telephones can be adjusted independently at the amplifier module, as can additional features including speech time, lock release time and reassurance volume etc. Flush boxes are standard. Stainless steel bezel flush boxes and surface boxes with rainshield are also available across the full range. Panels and back boxes can also be designed to specific dimensions. Features 12 Gauge stainless steel IP68 rated buttons with optional yellow bezel SPEAK, BUSY & OPEN call progress LED’s Call progress reassurance tones Dry contact lock output Timed call, speech and lock release Speaker and microphone volume adjustments
