8000 Series button expansion modules are used to achieve the required amount of call buttons for Videx audio or audio/video systems. Each module has a terminal connection that houses 2 terminals for each button. One side of each button is...
Product details

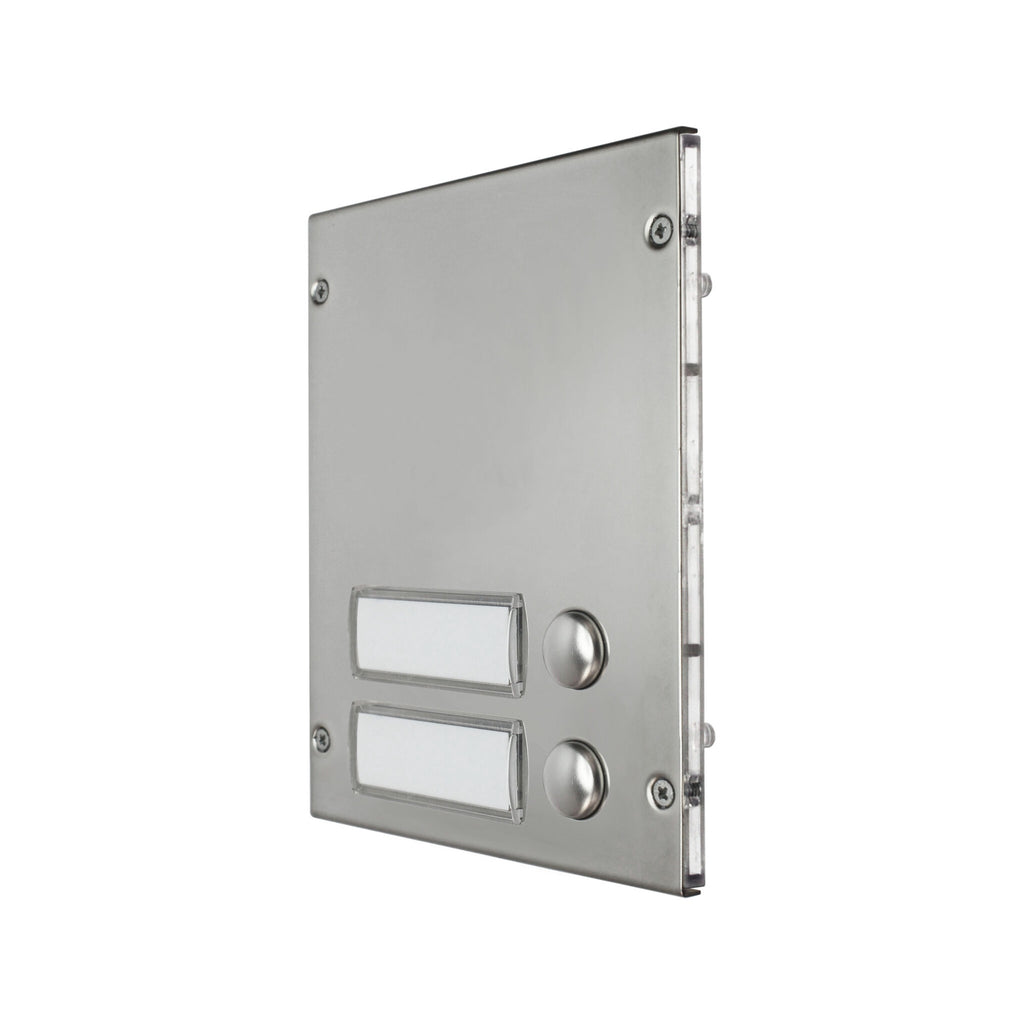

8000 Series button expansion modules are used to achieve the required amount of call buttons for Videx audio or audio/video systems. Each module has a terminal connection that houses 2 terminals for each button. One side of each button is pre-linked making a common terminal and can be removed to provide a volt free button for the likes of a trade facility. Name plate windows are illuminated by LED. Modules are available as a 2 button (8842) up to a 5 button (8845) module. Double buttons modules are also available where 2 buttons share the same name plate window (8842D 4 button up to a 8845D 10 button). The modules are designed to fit the full range of 8000 series surface & flush back boxes and are also backwards compatible with the older Videx 800 series surface & flush back boxes. The front fascia is available in a stainless steel finish. Features Designed for various Videx audio and audio/video systems Tactile push buttons Illuminated name windows 2, 3, 4 or 5 button modules 4, 6, 8 or 10 double button modules (2 buttons share name window) Common single side of all buttons together
Datasheets & documents
No datasheet is online for this product yet. Ask us and we will email it to you.
