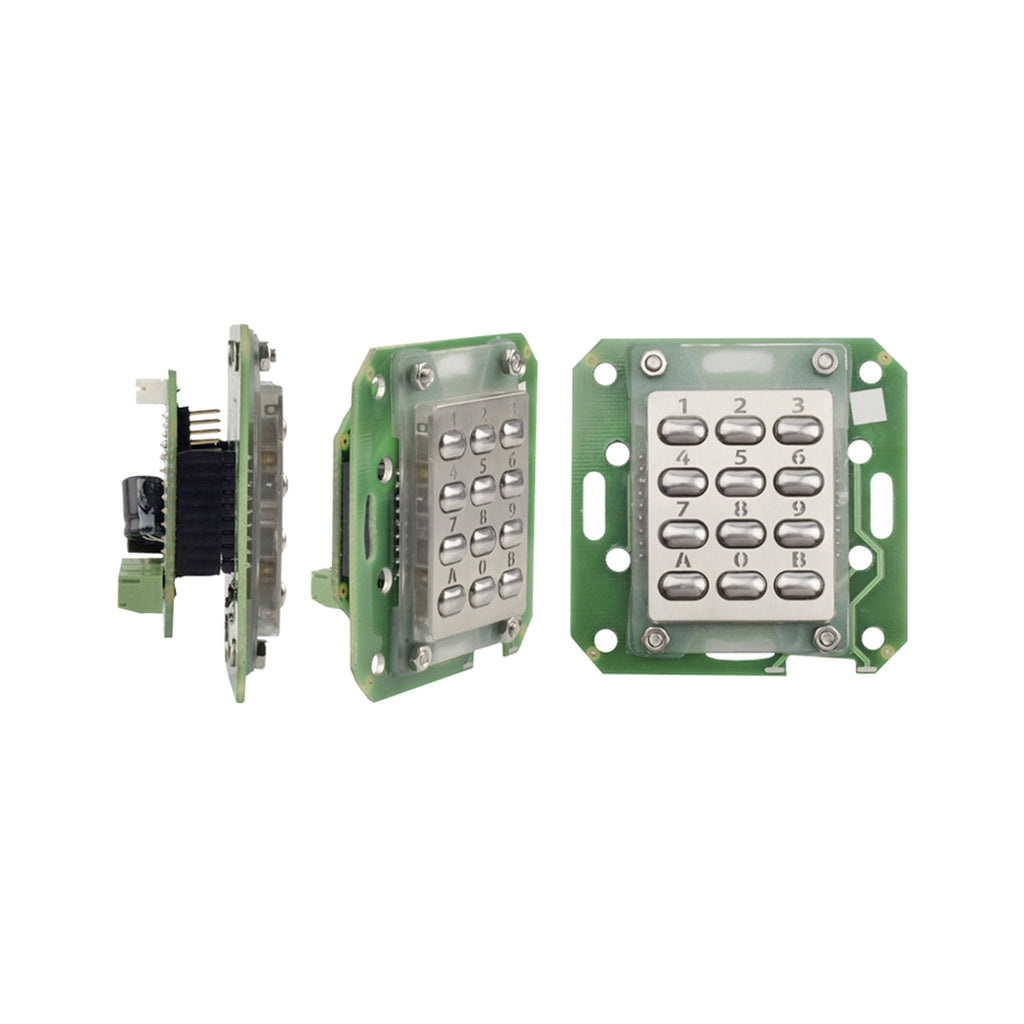

The Videx DINPAD-E is a standalone coded access keypad electronics unit from the Portal Plus DIN range. It controls a door without a separate controller, with two relays and a push-to-exit input, and fits a standard UK single gang flush electrical box.
It is finished with a DINFP series faceplate (single or double gang, available in several colours), which is ordered separately. Double gang faceplates let it be combined with other DIN electronics, such as a proximity reader or touch to exit unit.
Key features
- Standalone coded access, no controller needed
- 2 relay outputs with programmable relay time or latching
- Push-to-exit input
- Fits a standard UK single gang flush electrical box
- Takes DINFP series single or double gang faceplates
Technical specifications
- Part number: DINPAD-E
- User codes: 99
- Operating voltage: 12 VDC
- Current consumption: 120 mA max.
- Relays: 2
- Relay time: 1 to 99 seconds or latching
- Push-to-exit inputs: 1
- IP rating: IP40
- Mounting: standard UK single gang electrical flush box
- Wiring: terminal block
- Operating temperature: -20 °C to +50 °C
