Vimpex Banshee EXCEL LITE Conventional Sounder LED Beacon - Red Body, Red Lens, Deep Base IP66 (958CHL1001)
SKU: 958CHL1001Brand: Vimpex
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 24 | 1 to 3 working days |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Vimpex Banshee EXCEL LITE Conventional Sounder LED Beacon - Red Body, Red Lens, Deep Base IP66 (958CHL1001)
£43.45
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Combined sounder and low-current LED beacon (CHL series)
- 32 user-selectable tones, compatible with industry-standard tones
- Three volume levels: high, medium (-10dB(A)) and low (-20dB(A))
- EN 54-3 tested and approved in accordance with CPR; LPCB approved
- Side and rear cable entry with robust ‘two in, two out’ 2.5mm² terminals
- Uses the same push-and-twist bayonet bases as the BansheeMT, with a locking screw
Frequently bought together
Vimpex
Vimpex CBE6-RS-024-EN ClamBell 24V 6" Fire Alarm Bell - Shallow Base - Red EN54-3
Sale price£19.30
In stock
Vimpex
Vimpex DH-S-24 Door Holder 24V DC, Surface Mount, 200N
Sale price£29.30
Out of stock. Lead time 2 to 6 weeks, estimate only
Vimpex
Vimpex Hydrosense HS Conventional Hydrowire Connection Interface (HS-HWCI)
Sale price£34.35
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

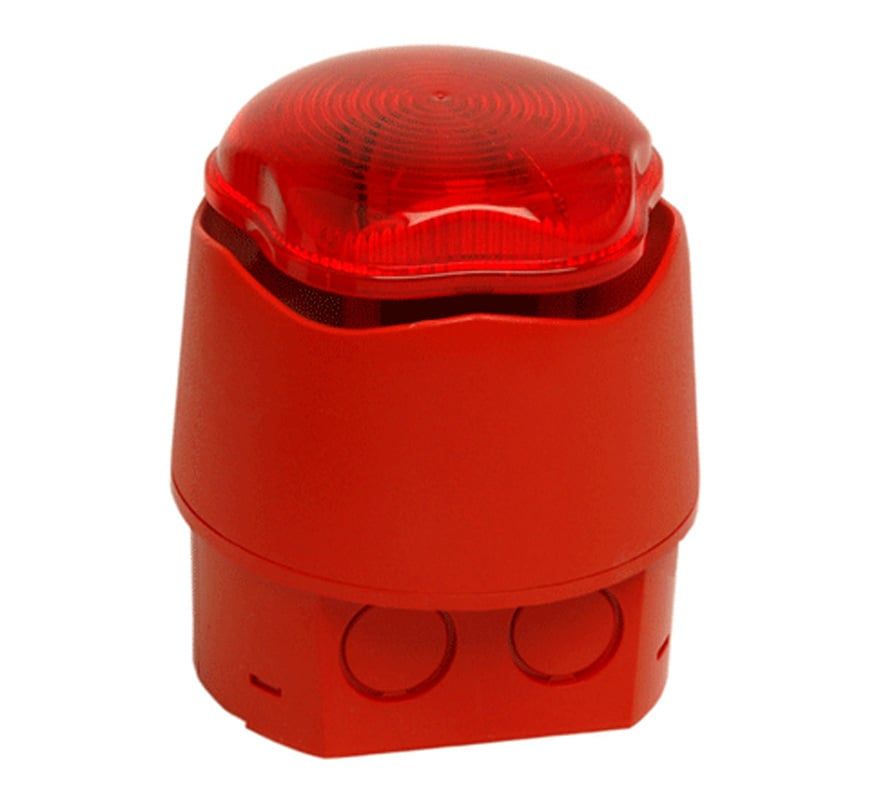

The Vimpex Banshee Excel Lite 958CHL1001 is a conventional combined sounder and LED beacon for fire alarm systems. This model has a red body and red lens and is supplied on the IP66 deep base. It pairs the Excel sounder, with its capsule-driven horn, with a low-current LED beacon (CHL model) and is tested and approved to EN 54-3.
Key features
- Combined sounder and low-current LED beacon (CHL series)
- 32 user-selectable tones, compatible with industry-standard tones
- Three volume levels: high, medium (-10dB(A)) and low (-20dB(A))
- EN 54-3 tested and approved in accordance with CPR; LPCB approved
- Side and rear cable entry with robust ‘two in, two out’ 2.5mm² terminals
- Uses the same push-and-twist bayonet bases as the BansheeMT, with a locking screw
- Manufactured in flame-retardant polymer; recyclable
Technical specifications
- Part number: 958CHL1001 (CHL, red body, red lens, deep base)
- Operating voltage: 9 to 30V DC
- Operating voltage (EN 54-3): 24V DC (20 to 28V)
- Flash current consumption (CHL): 16mA at 24V DC, 12mA at 12V DC (in addition to sounder tone current)
- Flash rate: 1 per second
- Tones: 32
- Operating temperature (CHL): -20°C to +70°C
- Environment category / IP rating: Type A, IP66 with deep base
