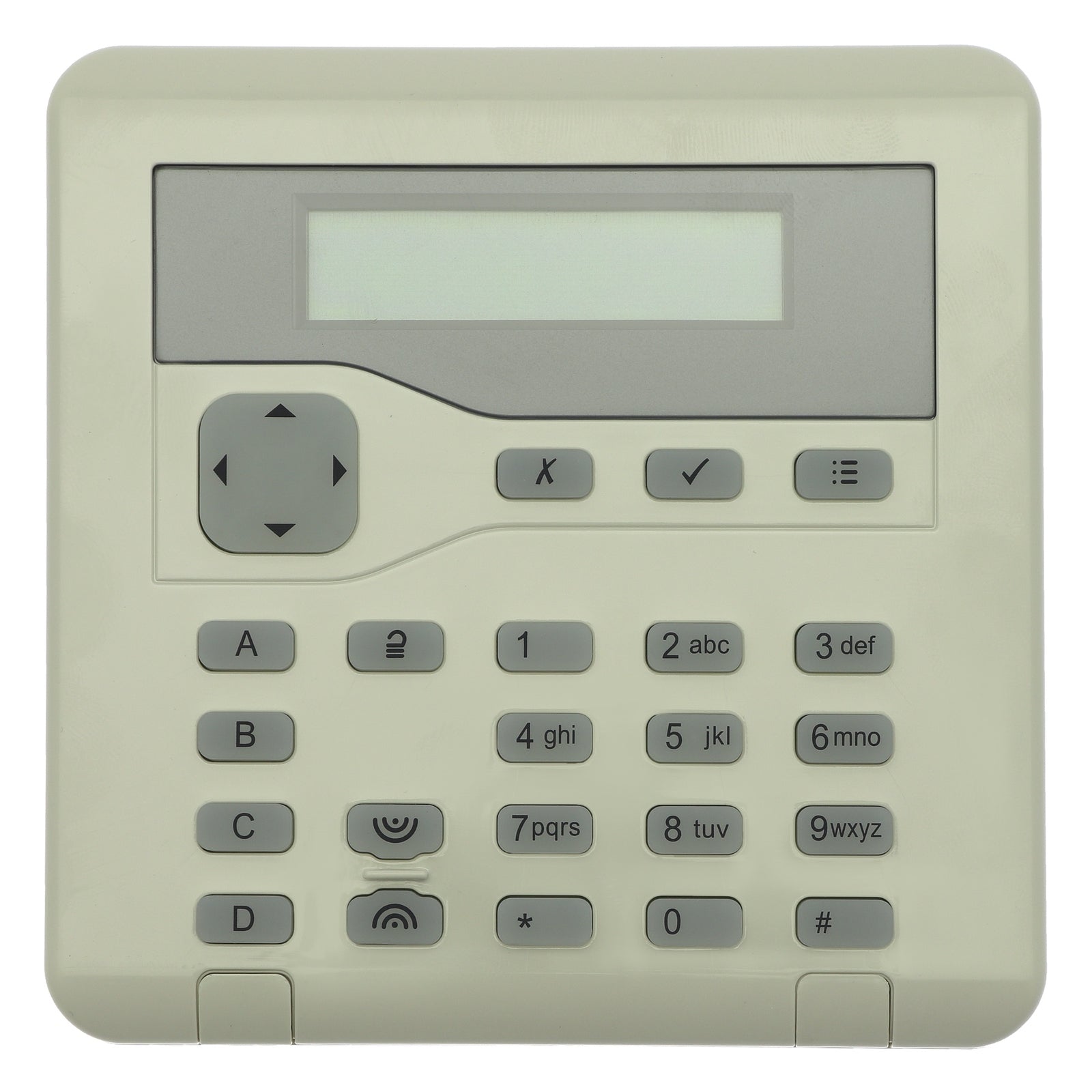

The Eaton KEY-KPZ01 is a wired keypad with built-in proximity reader for Eaton Scantronic intruder alarm control panels.
It is the top model of the KEY-K series, adding two on-board zone inputs and a programmable output, so nearby detectors can be wired straight into the keypad.
Key features
- Internal proximity reader for setting and unsetting with a proximity tag
- Connections for an additional external proximity reader (KEY-EP)
- 2 on-board wired zones and 1 programmable transistorised output
- Loudspeaker connection
- Navigation key and A, B, C, D setting keys with built-in status LEDs
- Built-in panic button, enabled in programming
Technical specifications
- Part number: KEY-KPZ01
- Connection: wired
- Zone inputs: 2; outputs: 1
- Loudspeaker connection: yes
- Grading: PD6662:2017, BS8243:2010 + A1 2014, EN 50131 Grade 2 or Grade 3
- Environmental class: 2
- Operating temperature: -10°C to 55°C at 75% RH
- Dimensions: 128 x 128 x 29 mm
- Weight: 0.22 kg
- Colour: white
