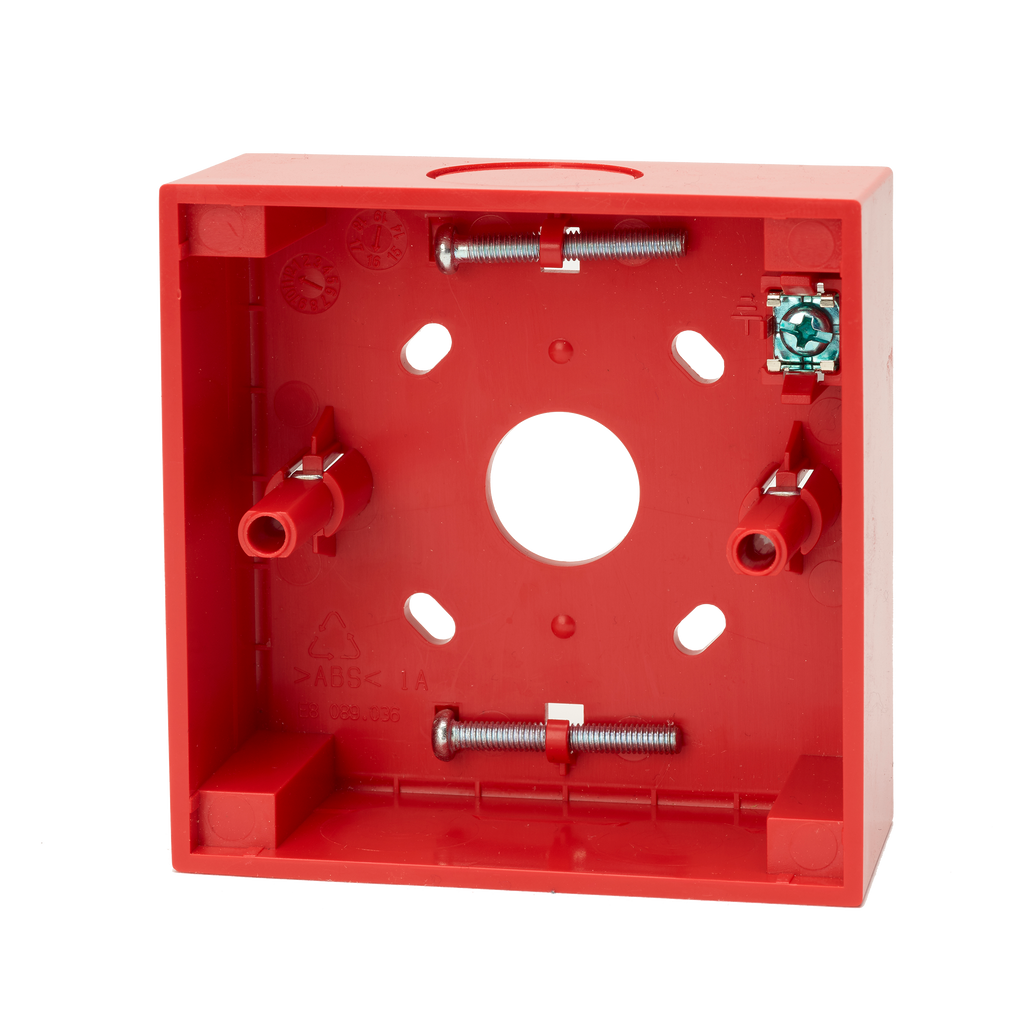

The Ziton N-MC-BB-R is a red surface-mount back box for DM3000, KAL750 and ZP780 series addressable manual call points, and it also aligns with the NC-MC series conventional call points. It gives cable entry from behind for hidden trunking, or from the top and bottom for surface trunking.
Key features
- Rear and side cable entry from a single unit, with dust-proof knockouts top and bottom
- Can be rotated through 180° to put the chosen entry at the top or bottom
- Mounting screws for the call point are housed in the base of the box
- Screen connection terminal for electrically noisy installations
- Adjustable mounting holes allow perfect horizontal alignment even if drilled holes are not level
- Alignment guides give a flush, single-unit finish with the call point front
Technical specifications
-
Part number: N-MC-BB-R
-
Compatibility: Excellence, NC and Ziton series MCPs (DM3000, KAL750, ZP780)
-
Terminals: 1 (cable screen)
-
Dimensions (W x H x D): 87.1 x 87.1 x 35mm
-
Weight: 60g
-
Colour: Red (RAL 3028)
-
Cable entries: 3 side, 1 rear
-
Material: Noryl SE100 (self-extinguishing)
-
Operating temperature: -25 to +72°C
-
Relative humidity: 10 to 95% non-condensing
-
Environment: Indoor, wall mount
