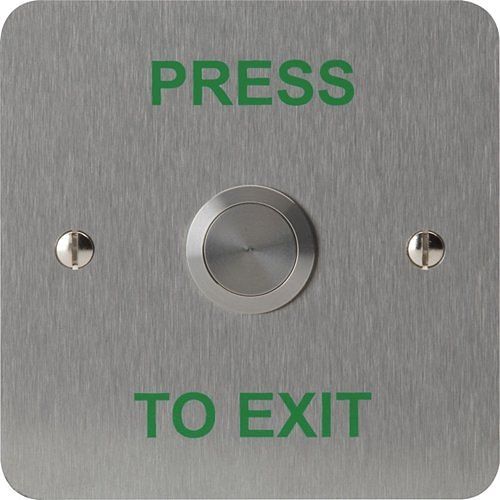

3E 3E0658N-1-PTE Vandal-Resistant Exit Button, Single Gang, SSS, PRESS TO EXIT Text
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 6 | 2 to 3 working days |
- IP67 Ingress protection
- Momentary contact
- N/O, N/C, C
- Silver contacts
- -25°C to +85°C operating range
- Impact rating: IK07
Frequently bought together
Product details
The 3E0658N-1PTE vandal resistant button is highly suitable for applications in harsh environments. Panel sealed to IP67 (front side actuation area) and IK 07 shock resistance. Both switch body and switch actuator are machined precisely from quality stainless steel to stringent tolerances. The switch has a machined return which accommodates the neoprene "o" ring to seal the unit to the panel without visible signs of the washer.
A panel projection of just 1.7mm increases the resistance to attack.
The switch has a momentary contact providing one normally open, one normally closed and one common terminal (terminals are soldered with 16/0.2mm and then a chloroprene sleeve is positioned to increase protection).
Product is supplied flush mount, complete with fixings and a single gang, 37mm galvanised steel electrical backbox.
- IP67 Ingress protection
- Momentary contact
- N/O, N/C, C
- Silver contacts
- -25°C to +85°C operating range
- Impact rating: IK07
- Short actuation travel (0.8mm)
- 1.7mm protrusion from panel
Specifications
| Contact Type | Closed Loop |
|---|---|
| Durability | Shock Resistant; Vandal Resistant |
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Features | Flush Mount; Shock Resistance; Vandal Resistant |
| Gang Type | Single Gang |
| Height | 85.50mm |
| Ingress Protection Rating | IP67 |
| Input Voltage | 120V AC; 230V AC |
| Limited Warranty | 1-Year |
| Material | Stainless Steel |
| Mount Type | Flush Mount |
| Print/Message | PRESS TO EXIT |
| Product Type | Push Button |
| Width | 85.50mm |
| Maximum Operating Temperature | 85°C |
| Colour | Silver |
| Manufacturer | 3E Security Ltd |
| Minimum Operating Temperature | -25°C |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
