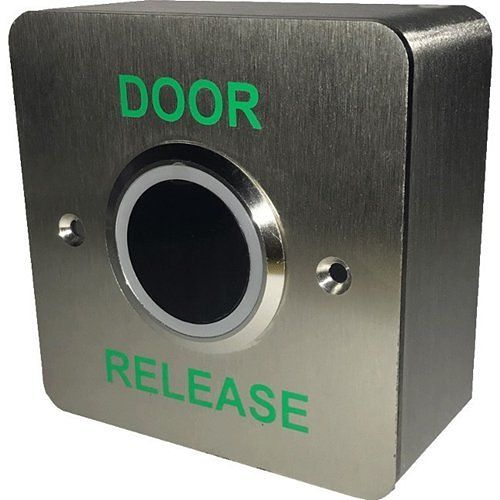

3E 3E0689-1DR Infrared Illuminated No-Touch Exit Button, Single Gang, SSS, Laser-Etched Door Release
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 157 | 2 to 3 working days |
- IP65 Frontal Presentation
- 12/24V DC Operation
- Dual Illumination (Red/Green)
- Infrared No Touch Button
- Adjustable Proximity Range
Frequently bought together
Product details
The infra red exit device has been designed to work in conjunction with access control systems. The switch is dual voltage (12/24Vdc), IP65 rated switch components and equipped with dual halo ring illumination. When the device is activated, the illumination will change from red (standby) to green (activated), however by use of a jumper, the exit device can be configured to operate in the reverse. This gives greater flexibility to the installer should a particular colour coding be required.
Allowing authorised egress without the need to physically open the door by touching the device helps to reduce the transference of dirt, disease or infection, thus making the device ideal for hospitals, laboratories and other sensitive areas.
Avaliable in both flush and surface mount versions. CE approved, RohS and WEEE compliant.
- IP65 Frontal Presentation
- 12/24V DC Operation
- Dual Illumination (Red/Green)
- Infrared No Touch Button
- Adjustable Proximity Range
Specifications
| Application/Usage | Access Control System |
|---|---|
| Depth | 20.00mm |
| Environmental Certification | RoHS; WEEE |
| Environmentally Friendly | Yes |
| Features | Flush Mount; Surface Mount |
| Gang Type | Single Gang |
| Height | 85.50mm |
| Ingress Protection Rating | IP65 |
| Input Voltage | 12V DC; 24V DC |
| Limited Warranty | 1-Year |
| Material | Stainless Steel |
| Print/Message | Door Release |
| Product Type | Push Button |
| Width | 85.50mm |
| Maximum Operating Temperature | 70°C |
| Colour | Silver |
| Manufacturer | 3E Security Ltd |
| Minimum Operating Temperature | -10°C |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
